NDT Y-1 AC/DC MPI MT AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing

1 Piece
MOQ
Bulk discount
Price
NDT Y-1 AC/DC MPI MT AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 2 Years
Type: NDT Testing
Model Number: Y-1
Brand Name: TESTECH
Product Name: Multi-functional Magnetic Flaw Detector Professional Supplier
Application: Inspection
Power: 20V±10%
Current: AC And DC
Electrode Distance: 0-200mm
Lifting: 6kg For AC, 26kg For DC
Color: Green, Yellow And Red
Weight: 2.3kg
Port: CHINA
Highlight:

ndt inspection equipment

,

ndt magnetic particle testing

,

yoke inspection equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: Y-1
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
Technical parameters
Model Y-1 (AC) Y-2 (AC and DC)
Electrode spacing 0～210mm 0～210mm
Maximum current 2.8A 2.8A
Weight 2.2kg 2.2kg
Main function
  • AC magnetization (direct insert power supply)
  • AC magnetization (direct insert power supply)
  • DCmagnetization (with MT-500 DC magnetization power supply)
Parameter table of magnetized power supply
Name AC magnetized power supply DC magnetized power supply
Model MT-600 MT-500
Output voltage AC DC
Type of power supply Lithium Lithium
Charging current 2A 2A
Battery capacity 4400mAh 4400mAh
Detection time About 4h About 8h
Weight 1.0kg 0.65kg
Overall dimensions 55×95×180(mm) 55×95×110mm

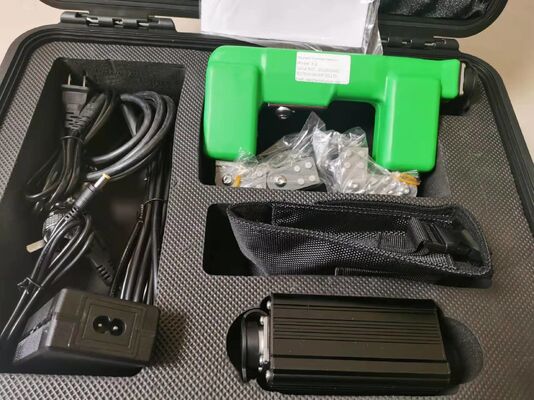

Standard configuration
Y-1
  • Main engine 1
  • Direct electrical conductor 1
  • Instrument box 1
  • Certificate 1
Y-2
  • Main engine 1
  • DC magnetized power supply 1
  • Power adapter 1
  • Connector wire between power supply & probe 1
  • Direct electrical conductor 1
  • DC power pack 1
  • Instrument box 1
  • Certificate 1
Features
  • Three selectable power supply modes
  • Direct AC connection for locations with mains power
  • AC magnetizing power pack for areas without fixed AC power
  • DC magnetizing power pack for DC magnetization inspection
  • AC battery pack with overcharge, overcurrent, over-discharge and stable voltage protection
  • Automatic power-off when lifting force is insufficient to ensure detection sensitivity
  • Power level indicator with audible and visual alarm
  • Built-in microcomputer chip for stable output voltage
  • Adjustable magnetization intensity
  • Special tool pockets for battery pack, magnetic suspension, contrast agent, yoke probe, etc.
Technical Parameters
  • Operating temperature: -10～+40℃
  • Storage temperature: -20～50℃
  • Relative humidity: <80% non-condensing
  • Operating temperature rise: <18℃
  • Duty cycle: >50%
  • Sensitivity: Clear display of 15/50 grooves on A1 standard test piece
  • Min. AC lifting force: >4.5kg (44N); Max. AC lifting force: 7kg (68.6N)
  • Min. DC lifting force: >18.1kg (177N); Max. DC lifting force: 23kg (225N)
