UM-4D Color OLED Echo Echo Mode Coating Thickness Measurement Car Paint Thickness Gauge

1 Piece
MOQ
Bulk discount
Price
UM-4D Color OLED Echo Echo Mode Coating Thickness Measurement Car Paint Thickness Gauge
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Customized Support: OEM
Place Of Origin: Beijing, China
Brand Name: TESTECH
Model Number: UM-4
Product Name: Ultrasonic Thru Paint & Coatings Thickness Gauge
Keyword: Through Coating Thickness Gauge
Measuring Principle: Time-based B-Scan Display
A Scan: Color A-Scan
Data Storage:: Stores 100,000 Readings
Display: Color OLED
OEM: Acceptable
Certification::: CE FCC Certification
Power Supply:: Two 1.5V AAA Battery
Weight:: ABS; 80g
Highlight:

UM-4D coating thickness measurement

,

Car coating thickness measurement

,

Car ut thickness gauge
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: UM-4
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
Color OLED Echo-Echo Mode(Thru Paint & Coatings) coating thickness gauge car paint thickness gauge



  • Color 320x240 Pixels Display
  • A-Scan Snapshot
  • Echo-Echo Mode(Thru Paint & Coatings)
  • Stores 100,000 Readings
  • Gain: Low, Medium or High for varying test conditions
Main Features

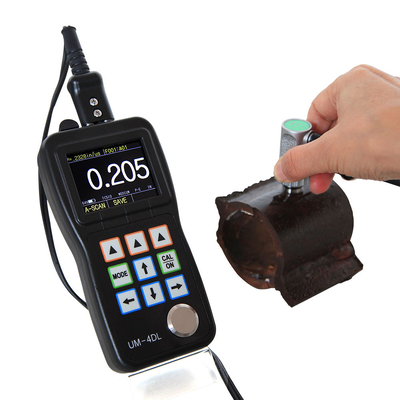

UM-4D Color OLED Echo Echo Mode Coating Thickness Measurement Car Paint Thickness Gauge 0





  1. Parameter configuration interface is simple and easy to operate.
  2. A-scan snapshot, users can see ultrasonic signal waveform on the screen directly, for verify the thickness value is correct, analyses the cause of problem, and help users to find the solution.
  3. Coupling condition is different with different color digital to display the thickness.
  4. Alarm Mode: Programmable Hi-Low alarm set point with Dynamic change thickness value’s color.
  5. Limit value mode: catching the minimum and maximum value when measuring.
  6. Difference mode: getting the difference between the actual value and the normal value as well as the percentage of difference value and normal value.
  7. Selectable units of mm and inch.
  8. Optional resolution: X.XX mm /X.X mm; X.XXX inch / X.XX inch.
  9. Multi-languages Available: Chinese, English, German and Spanish, ahead of agreeing with the company.
  10. Approx. battery life: 35hours.
Differences
Feature UM-4 UM-4D UM-4DL Data Logger Option
Color Display √ √ √
A-Scan Snapshot √ √ √
Gain: Low, Medium, High √ √ √
Min/Max Capture √ √ √
DIFF/RR% √ √ √
Thru-paint × √ √
Data Logger × × √ √
DataView Software × × √ √



Technical Parameter
Display Type 2.4'' color OLED, 320×240 pixels, contrast 10,000:1
Operating Principle Pulse echo with dual elemet transducers
Measuring Range 0.60mm to 508mm(0.025" to 20.00"), depending on material, probe and surface condition
Measuring Resolution Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
Units Inch or Millimeter
Gain Low, Medium or High for varying test conditions
Display Mode Normal, Minimum / Maximum capture, DIFF/RR%
V-Path Correction Automatic
Update Rate Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range 500 to 9999m/s (0.0197 to 0.3937in/us)
Languages Selectable Chinese, English, Japanese
Alarm Settings
Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm
Power Requirements 2 AA size batteries
Operating Time Approximately 40 hours
Instrument Shut-off Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature -10℃ to +50℃(+10°F to +12°F )
Size 153mm × 76mm × 37mm (H × W × D)
Weight

280g including batteries







UM-4 Series Probe/Transducer Specifications
Model PT08 TC510 PT12 ZT12 PT06 PT04 GT12
Type UM-4 Standard UM-4D/DL Standard Standard Cast iron Small tube Fingertip High-Temperature
Frequency 5MHz 5MHz 5MHz 2MHz 7.5MHz 10MHz 5MHz
Contact Diameter 11mm 13.5mm 13.5mm 17mm 8mm 6mm 15mm
Measurement Range

0.8 to
100.0mm

1.2 to
200.0mm

 1.0 to 200.0mm

4.0 to
508.0mm

0.8 to
30.0mm

 0.7 to 12.0mm

4.0 to
80.0mm
Temperature Range -10 to 70℃ -10 to 70℃ -10 to 70℃ -10 to 70℃ -10 to70℃ -10 to 70℃ -20 to 300℃
Standard Delivery of UM-4D Ultrasonic Thickness Gauge
Name Quantity
UM-4D Ultrasonic Thickness Gauge 1
Probe 1
Battery 2
Couplant 1
Carrying Case 1
Operating Manual 1
USB Cable 1(Only UM-4DL)
Software 1(Only UM-4DL)
