UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester

1 Piece
MOQ
Bulk discount
Price
UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 3 Years
Customized Support: OEM
Place Of Origin: Beijing, China
Brand Name: TESTECH
Model Number: UM-5 Serial
Product Name: Ultrasonic Thru Paint & Coatings Thickness Gauge
Keyword: Through Coating Thickness Gauge
Measuring Principle: Time-based B-Scan Display
A Scan: Color A-Scan
Data Storage:: Stores 100,000 Readings
OEM: Acceptable
Certification::: CE FCC Certification
Power Supply:: Two 1.5V AAA Battery
Weight:: ABS; 80g
Highlight:

UM-5D ultrasonic thickness gauge

,

AB ultrasonic thickness gauge

,

OEM ut gauge
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: UM-5
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

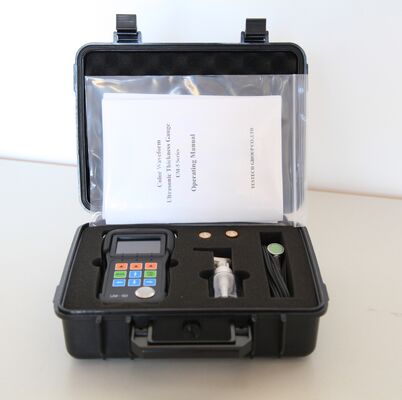

Color OLED Echo-Echo Mode(Thru Paint & Coatings) coating thickness gauge car paint thickness gauge

  • The standard configuration probe for UM-5 Series ultrasonic thickness gauge is TC510 probe and dual plug cable.
  • Probe is the heart of the gauge. TESTECH possesses industry-leading probe production technology. TC510 probe selects high-performance PZT chip, one-piece metal die-casting shell and practical design of separation of probe and cable, creating good quality regardless of cost.
FeatureUTG-500UTG-500DUTG-500DLData Logger Option
Color DisplayYESYESYES
Live A-ScanYESYESYES
Time-based B-ScanYESYESYES
Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify ModesYESYESYES
Echo-Echo Mode
(Thru Paint & Coatings)		XYESYES
Data LoggerXXYESYES
DataView SoftwareXXYESYES

Instrument Specifications

Display Type2.4" color OLED, 320 X 240 pixels, contrast 10,000:1
Operating PrinciplePulse echo with dual element transducers
Measuring Range0.50mm to 508mm(0.02" to 20.00"), depending on material, probe and surface condition
Measuring ResolutionSelectable 0.01mm, 0.1mm(selectable 0.001", 0.01")
UnitsInch or Millimeter
Rectify ModesRF+, RF-, HALF+, HALF-, FULL
Display ModeNormal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path CorrectionAutomatic
Update RateSelectable 4Hz, 8Hz, 16Hz
Material Velocity Range500 to 9999m/s (0.0197 to 0.3937in/us)
LanguagesEnglish
Alarm SettingsMinimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm
Power Requirements2 AA size batteries
Operating TimeApproximately 40 hours
Instrument Shut-offSelectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature-10°C to +50°C (+10°F to +120°F)
Size153mm X 76mm X 37mm(H X W X D)
Weight280g including batteries

Data Logger Option Features

Capacity100,000 readings, 1000 waveforms,400 files
File StructureGrid file
Rows X Columns21 X 12
Communication PortUSB 2.0 (Full Speed ) port
SoftwareDataView PC software

UTG-500 Probe/Transducer Specifications

ModelTypeFrequencyContact DiameterMeasurement RangeTemperature Range
PT08UTG-500
Standard		5MHz11mm0.8 to
100.0mm		-10 to 70℃
TC510UTG-500D/DL Standard5MHz13.5mm1.2 to
200.0mm		-10 to
70℃
PT12Standard5MHz13.5mm1.0 to 200.0mm-10 to 70℃
ZT12Cast iron2MHz17mm4.0 to
508.0mm		-10 to 70℃
PT06Small tube7.5MHz8mm0.8 to
30.0mm		-10 to
70℃
PT04Fingertip10MHz6mm0.7 to 12.0mm-10 to 70℃
GT12High-Temperature5MHz15mm4.0 to
80.0mm		-20 to 300℃
UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester 0
ModelTypeFrequencyDiameterMeasuring RangeTemperaturePhoto Corresponding Design
PT-08Common5MHz10.6mm0.8-100mm-10-60℃UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester 1
PT-06Small Tube7.5MHz9.1mm0.8-30mm-10-60℃UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester 2
PT-04Fingertip10MHz7.3mm0.7-12mm-10-60℃UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester 3
TC510Standard5MHz13.1mm1.2-200mm-10-70℃UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester 4
TC550Composite Chip5MHz13.1mm1.2-200mm-10-70℃UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester 5
ZT-12Cast Iron2MHz17.5mm4.0-508mm-10-60℃UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester 6
GT-12H-Temperature3MHz14.2mm4.0-80mmBelow 480℃UM-5D Ultrasonic Thickness Gauge Through Paint Coatings AB Scan Color Screen Thickness Tester 7
