5MHz 10mm 90° High Performance Ultrasonic Transducer N05 for Thickness Gauge

1 pcs
MOQ
5MHz 10mm 90° High Performance Ultrasonic Transducer N05 for Thickness Gauge
Features Gallery Product Description Chat Now
Features
Specifications
Product: Ultrasonic Transducer 5MHz 10mm 90 Degree For Thickness Gauge
Frequency:: 5 MHz, 6 Mhz
Crystal Diameter:: 10 Mm
Range (Steel):: 1.2–230 Mm / 1.0–600 Mm
Accuracy:: ±(1%H + 0.1) Mm
Temp:: -10 °C ~ +60 °C
Highlight:

5MHz ultrasonic transducer

,

10mm 90° thickness gauge sensor

,

N05 high performance transducer
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: 5MHZΦ10
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: within 5 days
Payment Terms: T/T,Western Union,credit card,PAYPAL
Supply Ability: 500 pcs
Product Description

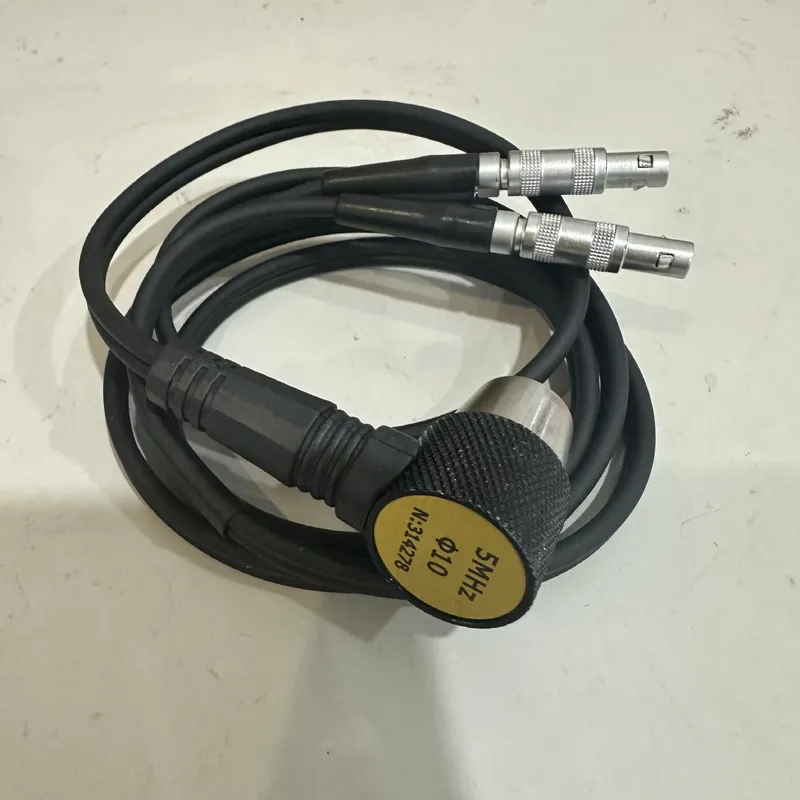

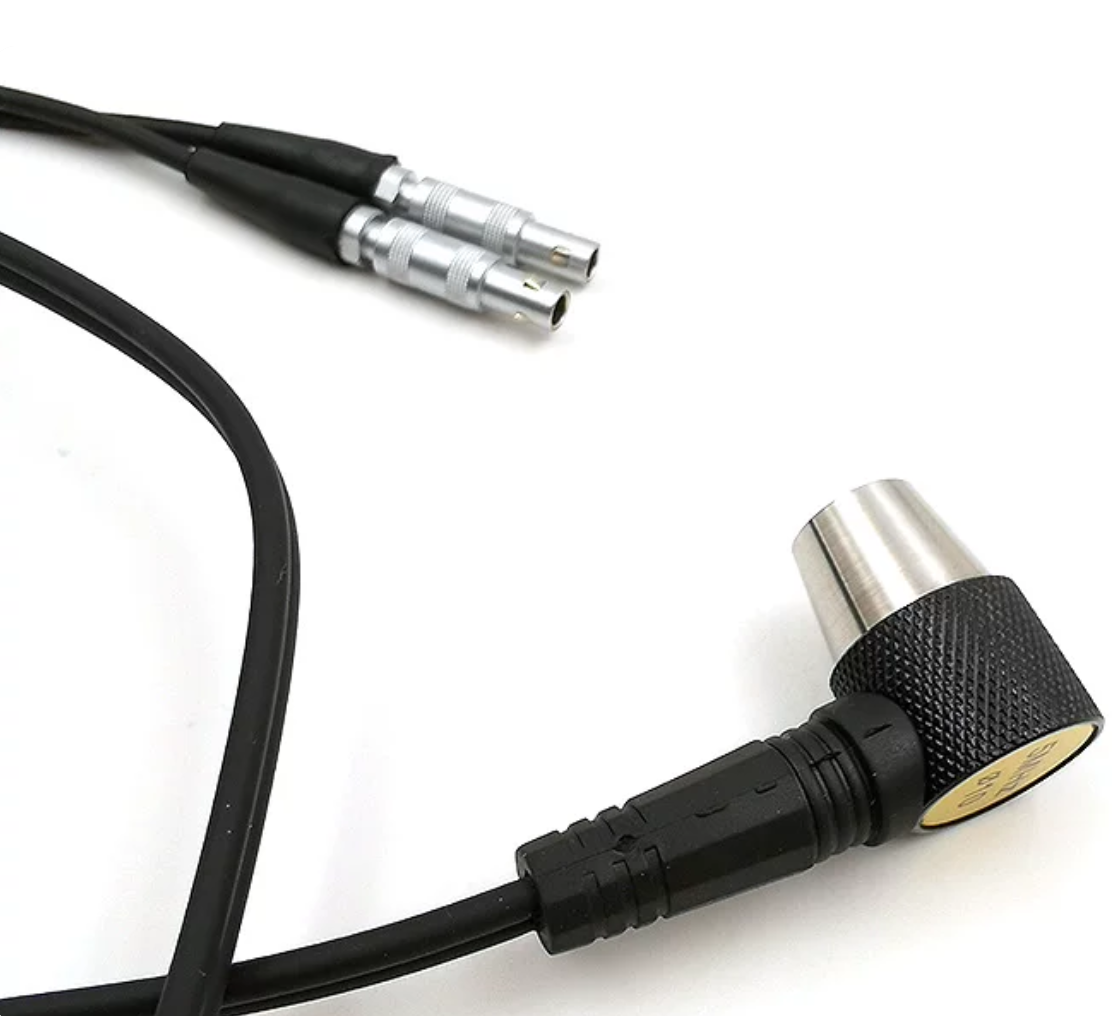

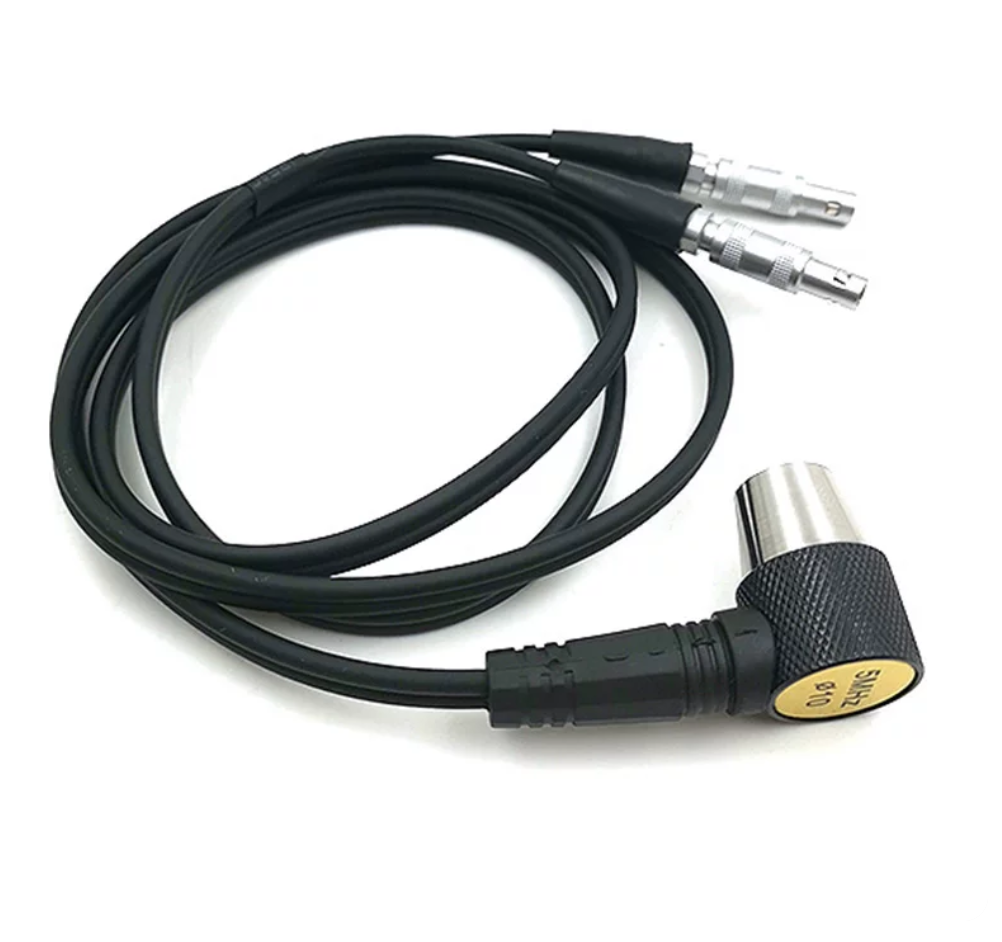

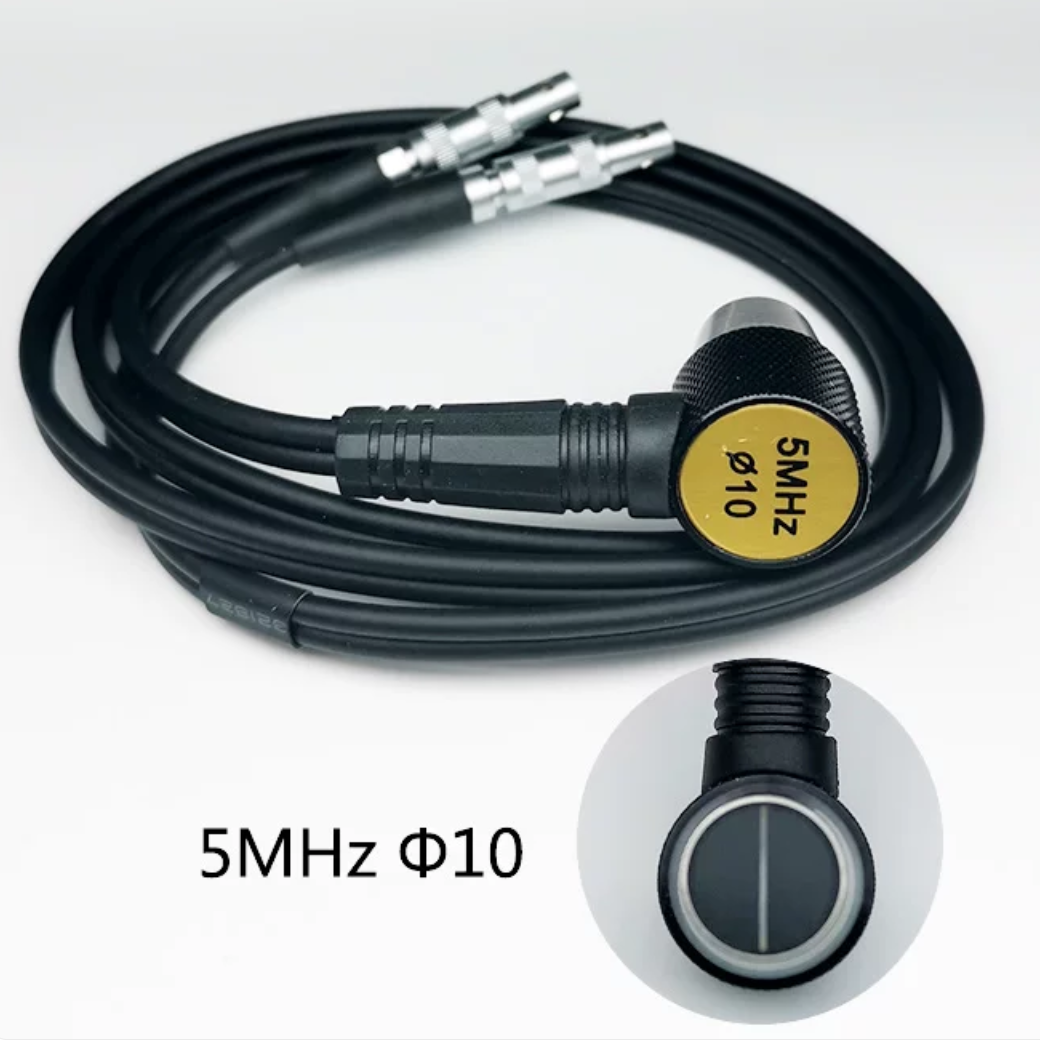

N05 90° High Performance Ultrasonic Transducer
High-performance 5MHz 10mm replacement ultrasonic probe with 90° angle design for precision thickness measurement applications.
Key Specifications
  • Frequency: 5 MHz
  • Crystal Diameter: 10 mm
  • Measuring Range (Steel): 1.2-230.00 mm (standard gauge); 1.0-600 mm (multi-mode gauge)
  • Min. Pipe Size: Φ20 mm × 3.0 mm
  • Cable Length: 90 cm (custom 2 m available)
  • Operating Temp: -10 °C to +60 °C
  • Accuracy: ±(1%H + 0.1) mm
  • Resolution: 0.1 mm (adjustable)
  • Compatibility: Mitech & other major ultrasonic thickness gauges
Applicable Sound Speed 1000-9999 m/s (suitable for metals / plastics / ceramics)
Material Construction Piezoelectric ceramics + engineering plastics + stainless steel (integrated die-casting, durable)
Probe Angle 90° (ideal for measurement at narrow spaces and corner areas)
Minimum Pipe Diameter Φ20 mm × 3.0 mm
Measurable Materials Homogeneous materials including steel, aluminum, copper, cast iron, plastic, and ceramics
Primary Applications
Corrosion monitoring and wall thickness measurement for pipes, tanks, pressure vessels, and industrial equipment.
