FD-102 60KHz Eddy Current Conductivity Meter High Resolution 0.1% IACS

1 Piece
MOQ
Bulk discount
Price
FD-102 60KHz Eddy Current Conductivity Meter High Resolution 0.1% IACS
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Product Name: Eddy Current Copper Conductivity Meter Digital Al Conductivity Tester
Key Words: Eddy Current Electrical Conductivity Meter
Distinguishing Rate:: 0.01% IACS
Frequency:: 60KHz
Measuring Range:: 1%IACS-105%IACS(0.58 MS/m -61MS/m)
Communication: RS 232 Interface
Reading Memory: 4000 Sets Of Measuring Date
Temp. Measurement:: 0℃~+80℃
Measurement Mode: Eddy Current
Display Screen:: 240X320 Pixels TFT-LCD
Highlight:

FD-102 eddy current testing machine

,

60KHz eddy current testing machine

,

High Resolution eddy current equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: FD-102
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
FD-102 Industrial Eddy Current Conductivity Meter | 0.1% IACS High Precision | 60KHz Digital Tester | Non-Destructive Copper & Aluminum Testing
Application:
  • Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)
  • In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy;
  • Test the conductivity when the aluminum have not been oxidized;
  • Measurement the purity of non-ferrous metals;
  • Test the resistivity of conductive materials;
  • Analyze thermal properties of materials.
FD-102 Technical parameters
NAME CONTENT NOTE
Measurement technology Eddy current
Operating frequency 60KHz
Display screen 240X320 pixels TFT-LCD 4 kinds of background color
L*B*H 180*80*35 mm
Instrument case Anti-intense impact, water-proofing polyester Match the fixed belt the leather protective covering
Weight 245g Contain battery
Power supply High capacity, high performance lithium polymer battery Not back light illuminate may keep on working about 100 hours.
Measuring range 1%IACS—105%IACS(0.58 MS/m -61MS/m)
Distinguishing rate 0.01% IACS
Probe compensated 0.05mm
Measuring accuracy 0°Cto 50°C
23%IACS :±0.25%IACS
100%IACS :±0.5%IACS
Temperature compensation 0°C~50°C Automatic compensation function
Normal work environment Relative humidity 0~95%
Operating temperature 0°C~50°C
Language Chinese, English
PC communication USB

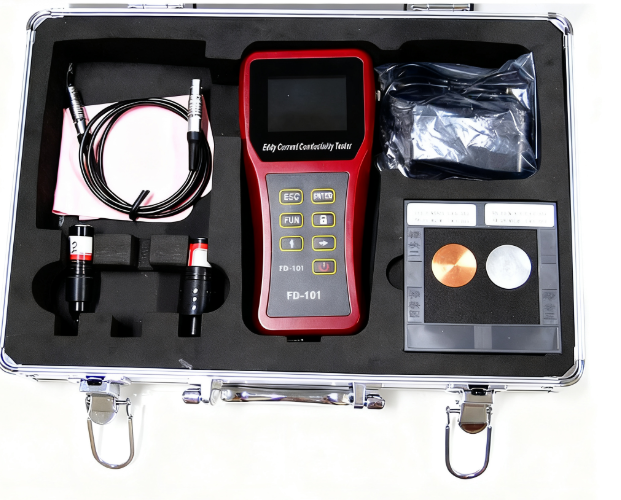

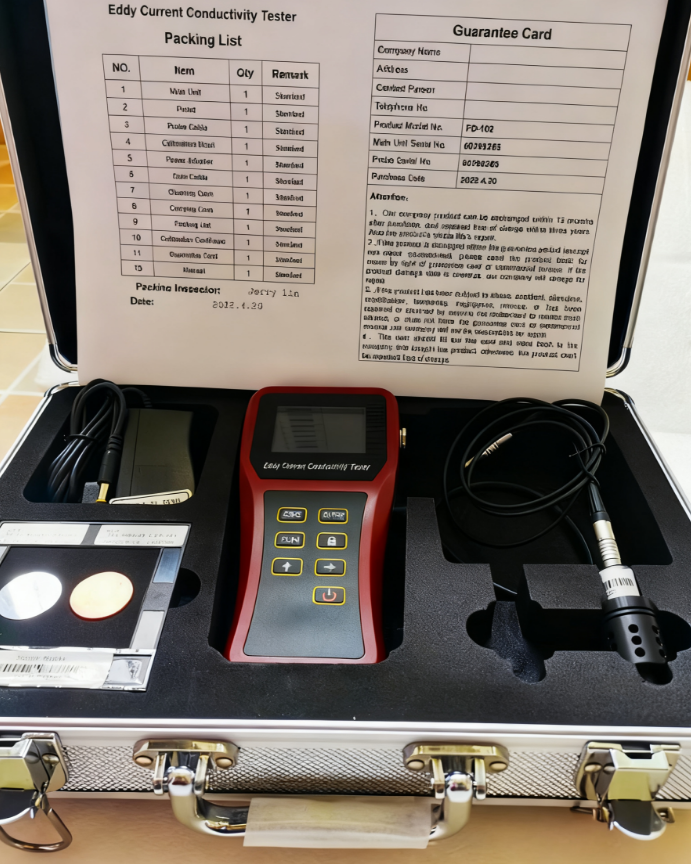

Fitting Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter Conductivity sample installs in the instrument, to verify and guarantee temperature compensation
Probe Diameter 12.7mm
(Applicable to minimum measuring area diameter at 60KHz is13mm.)
Reading storage Preserve 1000 survey data

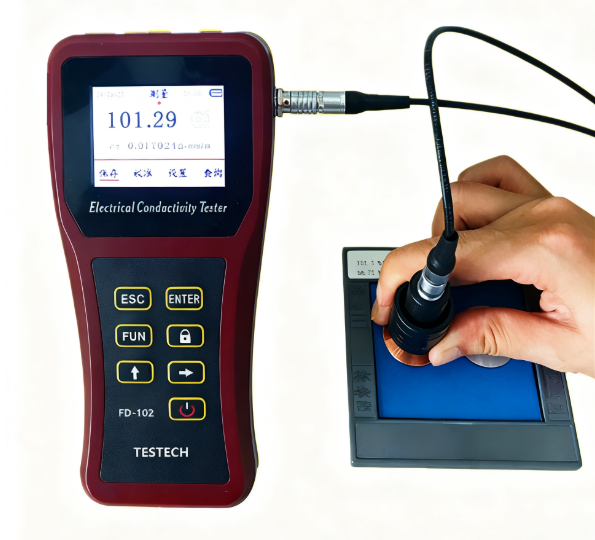

Hand-held eddy current conductivity tester for NF-metals with automatic normalization of the conductivity values to 20°C through temperature sensor.
