Name: Eddy Current Coating Thickness Gauge High Precision Paint Thickness Meter
Brand: Testech Group Co., Ltd
SKU: ED-400
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Years

Customized Support: OEM

Product Name: Plumbing Inspection Crawler Robotic Camera

Testing Range: 0-500μm

Testing Accuracy: 0-50μm: ±1μm;50-500μm: ±2%

Resolution: 0-50μm: 0.1μm/50μm -500μm: 1μm/0-500μm: 1μm (optional)

Operating Temperature: 5-45℃

Dimension: 150*80*30mm

Weight: 280g

Highlight:

Eddy Current coating thickness gauge

Aluminum coating thickness gauge

copper paint thickness meter

Basic Infomation

Place of Origin: CHINA

Brand Name: TESTECH

Certification: CE; ISO

Model Number: ED-400

Payment & Shipping Terms

Packaging Details: In Carton

Delivery Time: 3-7 days

Payment Terms: T/T, Credit Card, Paypal, Western Union

Supply Ability: 5000pcs/month

Gallery

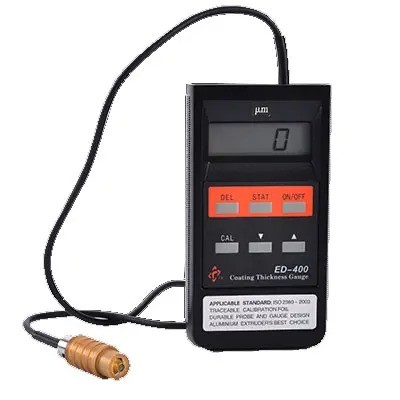

Eddy Current Coating Thickness Gauge High Precision Paint Thickness Meter

Product Description

Eddy Current Coating Thickness Gauge High Precision - Non-Magnetic Metal Paint Thickness Tester for Aluminum, Copper

1	Testing Range	0-500μm
2	Testing Accuracy	0-50μm: ±1μm;50-500μm: ±2%
3	Resolution	0-50μm: 0.1μm/50μm -500μm: 1μm/0-500μm: 1μm (optional)
4	Operating Temperature	5-45℃
5	Dimension	1508030mm
6	Weight	280g

Features:

ED400 Coating Thickness Gauge is the improved model of the ED300 Gauge. The performance is prominently improved.
The gauge is used to measure the thickness of the insulating coating on nonmagnetic metals.
It is mainly used to measure the anodic oxide coating on aluminum alloy profiles, aluminum composite panel, and other aluminum workpieces.
It can be used to measure the thickness of the insulating coating thickness on other non-ferrous metals, also can be used on paper and plastic foil.
It is suitable for quick non-destructive coating thickness measurement for production, sales and engineering. It is used for production inspection, acceptance inspection and quality inspection.
