FD-102 Eddy Current Testing Equipment Copper Conductivity Meter Digital Al

Measurement technology

Eddy current

Operating frequency

60KHz

Display screen

240X320 pixels TFT-LCD

4 kinds of background color

L*B*H

180*80*35 mm

Instrument case

Anti-intense impact, water-proofing polyester

Match the fixed belt the leather protective covering

Weight

245g

Contain battery

Power supply

High capacity, high performance lithium polymer battery

Not back light illuminate may keep on working about 100 hours.

Measuring range

1%IACS—105%IACS(0.58 MS/m -61MS/m)

Distinguishing rate

0.01% IACS

Probe compensated

0.05mm

Measuring accuracy

0°Cto 50°C

23%IACS :±0.25%IACS

100%IACS :±0.5%IACS

Temperature compensation

0°C~50°C

Automatic compensation function

Normal work environment

Relative humidity

0~95%

Operating temperature

0°C~50°C

Language

Chinese, English

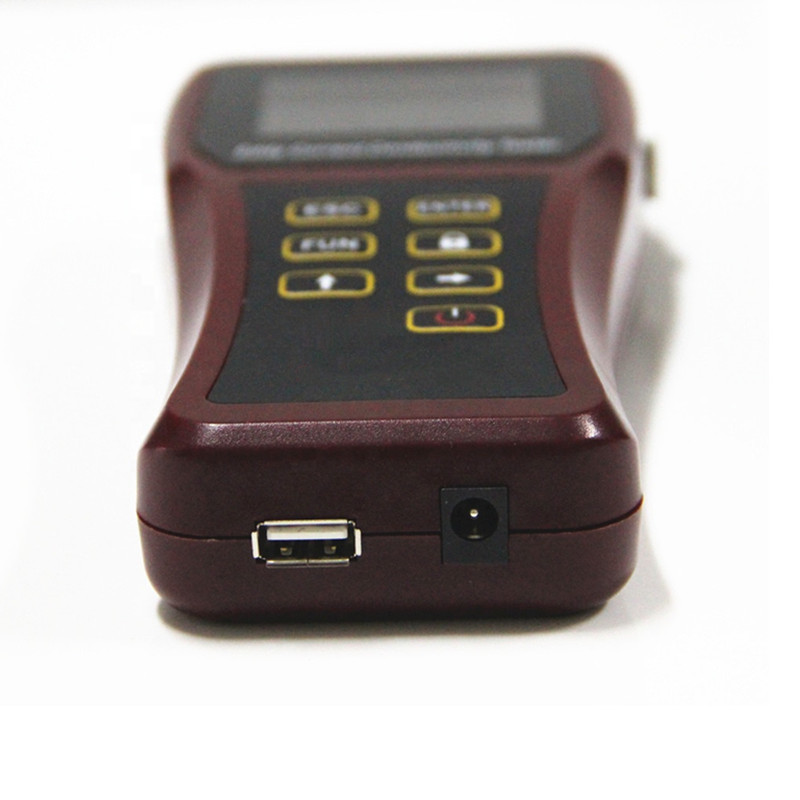

PC communication

USB

Fitting

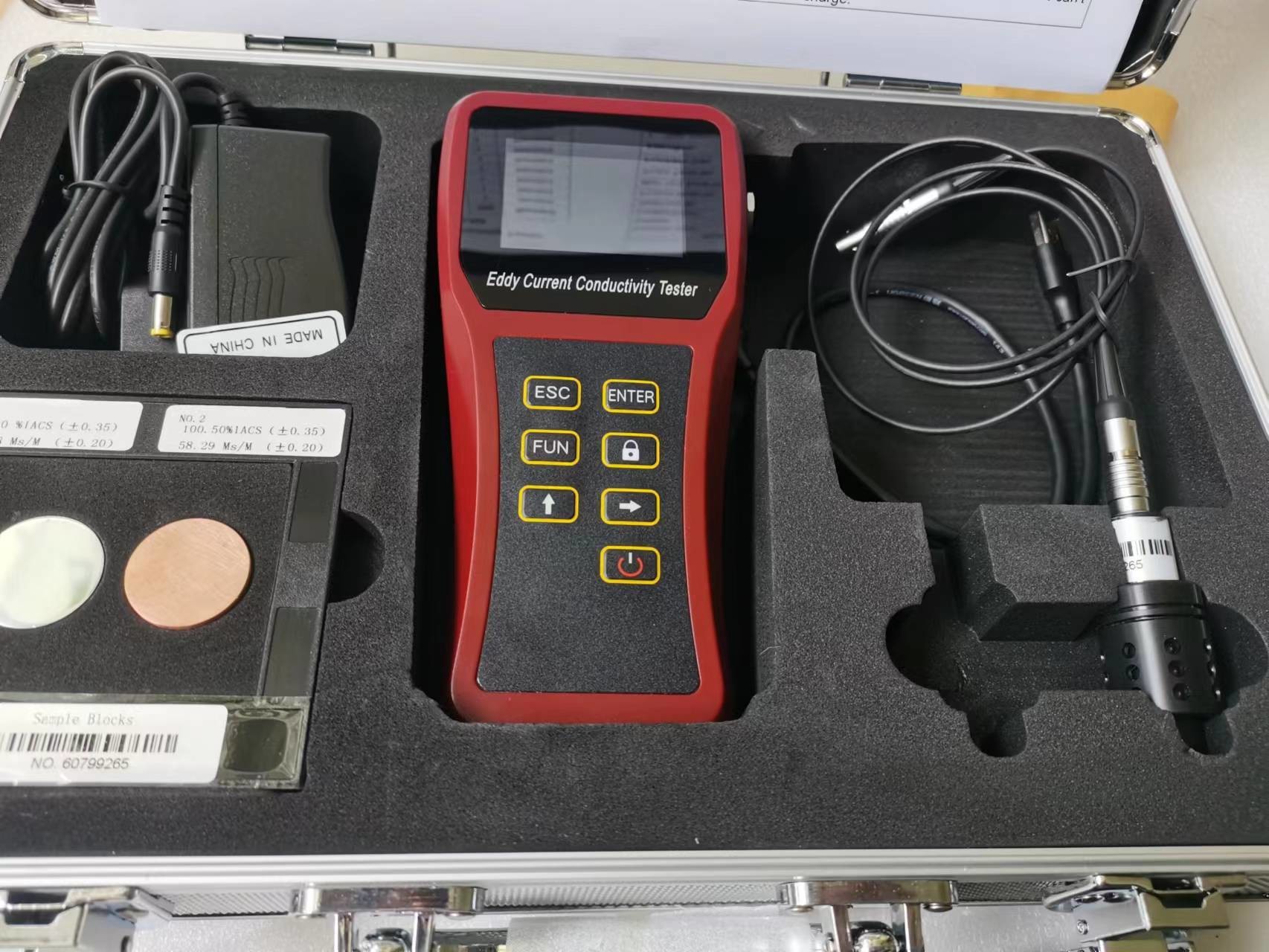

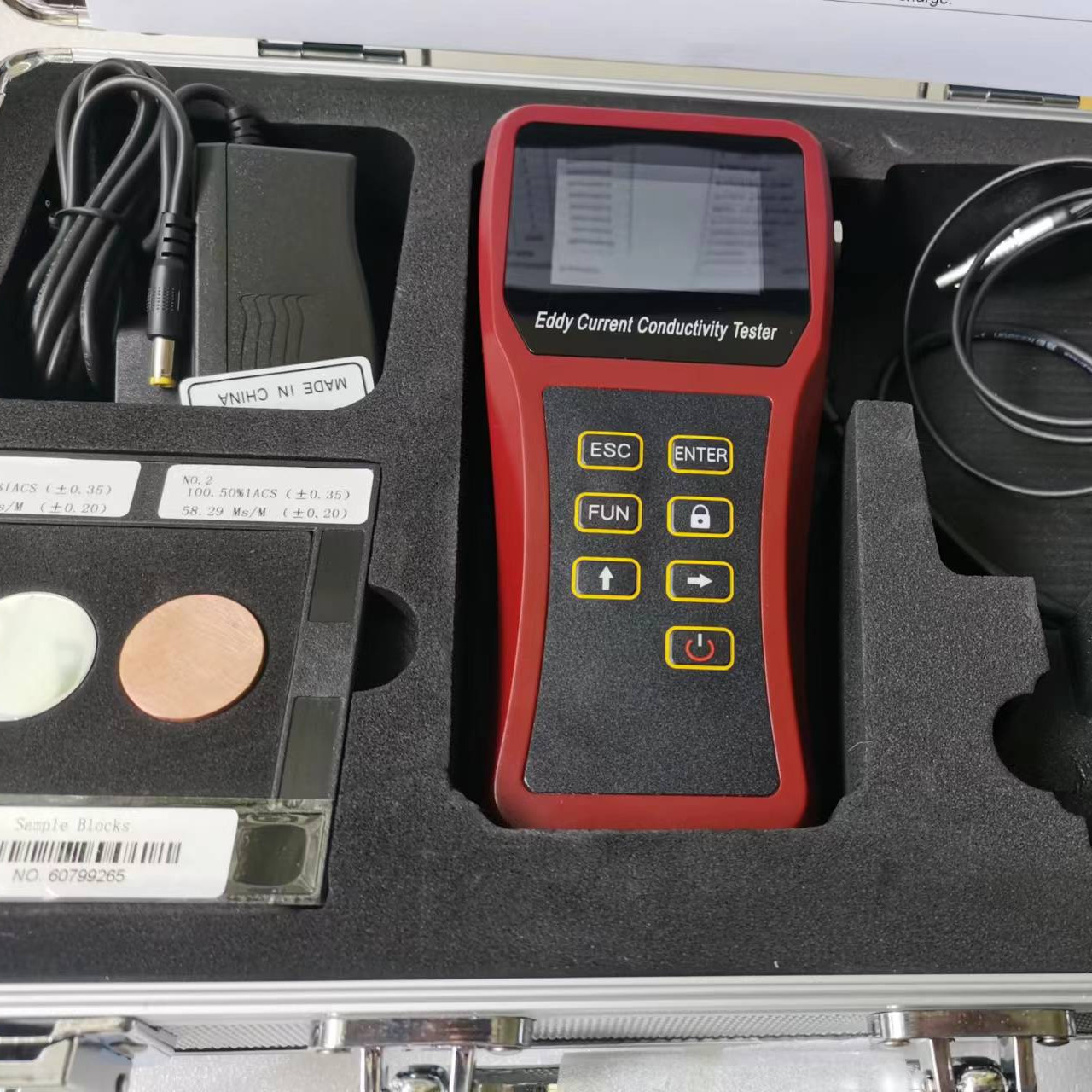

Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter

Conductivity sample installs in the instrument, to verify and guarantee temperature compensation

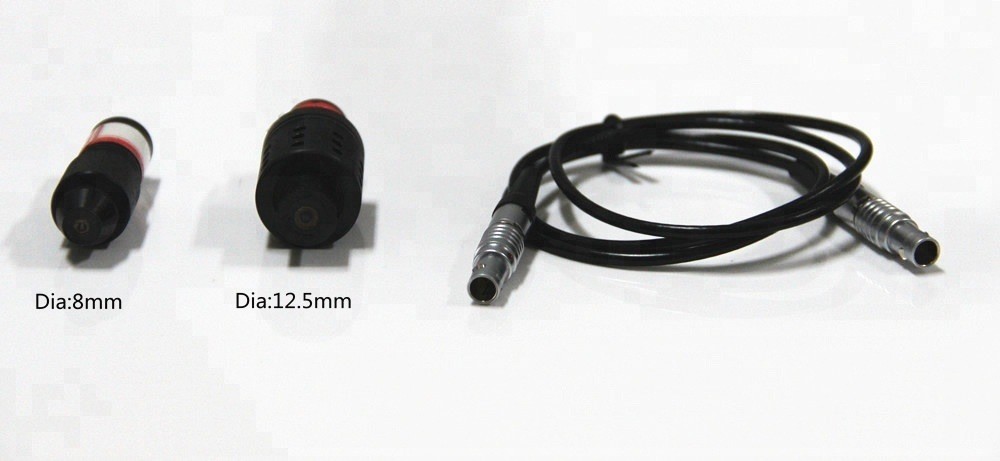

Probe Diameter

12.7mm

(Applicable to minimum measuring area diameter at 60KHz is13mm.)

Reading storage

Preserve 1000 survey data
