0.01% IACS Eddy Current Conductivity Meter 60KHz For Metal Purity Material Sorting

1 Piece
MOQ
Bulk discount
Price
0.01% IACS Eddy Current Conductivity Meter 60KHz For Metal Purity Material Sorting
Features Gallery Product Description Chat Now
Features
Specifications
Accuracy: 0.01%IACS
Range: 7.76 %IACS To 112 %IACS
Place Of Origin: China
Product Name: Electricity Eddy Current Conductivity Meter
Application: Electricity Eddy Current Conductivity Meter
Frequency: 60KHz
Communication With PC Machine: RS 232 Interface
Reading Memory: 4000 Groups
Power: Lithium Ion Battery
Highlight:

0.01% IACS eddy current conductivity meter

,

60KHz eddy current conductivity meter

,

60KHz eddy current electrical conductivity meter
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: Sigma 2008
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
Eddy Current Conductivity Tester 60KHz High Precision Electricity Eddy Current Conductivity Meter
0.01% IACS Eddy Current Conductivity Meter 60KHz For Metal Purity Material Sorting 0
Items Sigma 2008 A1 Sigma 2008 A
Working Freq. 60KHz, sine wave 60KHz, sine wave
Measurement range for conductivity 7.76 %IACS to 112 %IACS, or 4.5 MS/m to 65 MS/m or resistivity 0.01538 to 0.22222Ω•mm²/m 0.51 %IACS to 112 %IACS, or 0.3 MS/m to 65 MS/m,or resistivity 0.015388 to3.33333Ω•mm²/m
Resolving power

0.01%IACS(when <51%IACS);

0.1%IACS(51%IACS to 112%IACS )
Measuring precision ±1% ( temp range, 0℃ to 40℃) ±0.5%( temp range, 20℃)
Lift-off effect Probe compensation 0.5mm
Temp. measurement 0℃ to +50℃(precision 0.5℃)
Function of auto compensation Measured result of conductivity, adjusting to value at temp. 20℃ automatically
Normal working environment Temp. 0℃ to +50℃; relative humidity, 0 to 95%
Display Liquid crystal big screen, back-light designed, multiple items of important parameter displayed simultaneously.
Power supply Equipped with a lithium ion battery of 2200mA/h

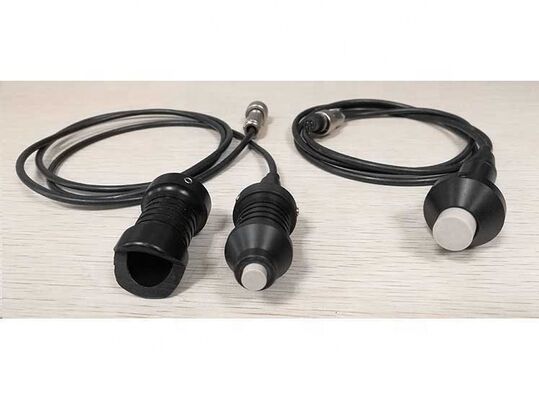

Probes One probe of diameter ¢14mm, working freq. 60KHz, for instrument model A; Probes are interchangeable.
Reading memory Storage for 4000 groups of measured data files.
Communication with PC machine RS 232 interface
Weight of host machine 0.5kg (including batteries)
Dimension of host machine 220mmx95mmx55mm
Shell of instrument Engineering plastic, high impact-resistance, waterproof shell for this instrument

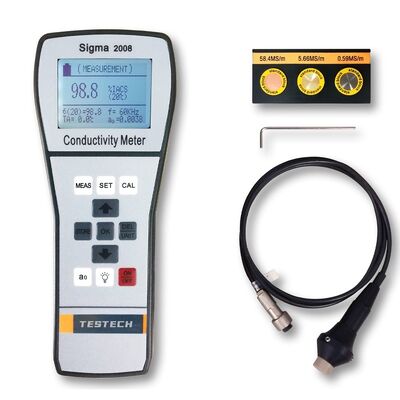

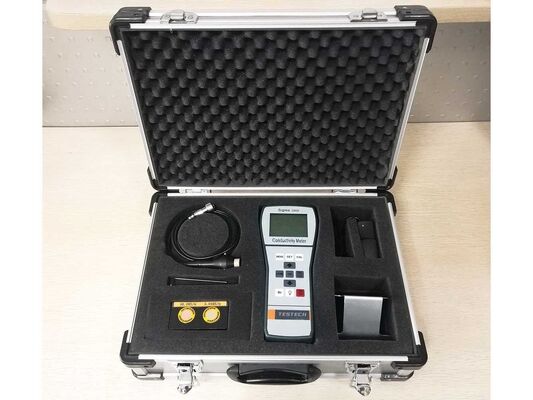

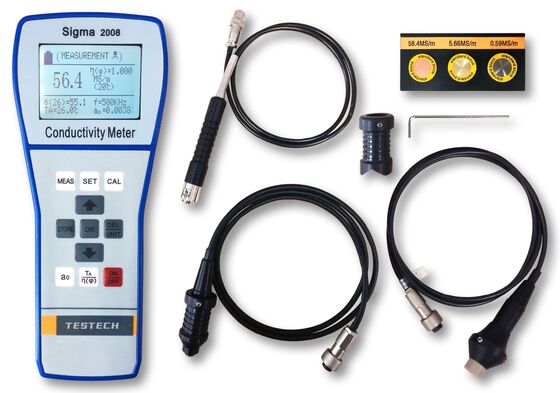

Package and protection
  1. Main device
  2. probes
  3. communication cable
  4. operation manual
  5. conductivity blocks,
  6. recharger
  7. instrument stand
  8. U- disk (or optical disk)
  9. aluminium alloy
Accessories

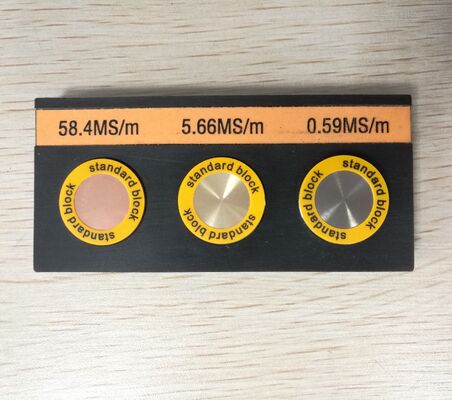

2 pieces of standard conductivity blocks for model A1;

3 pieces of standard conductivity blocks for model A.

You can purchase more blocks if you wish.
