Multifunctional Fluorescent MPI Magnetic Particle Inspection For Ring Shaft Workpieces

Wet continuous composite magnetization magnetic particle inspection

1. Adopt the wet continuous composite magnetization magnetic particle inspection process to achieve comprehensive, full-circumference flaw detection for ring-type and shaft-type workpieces.

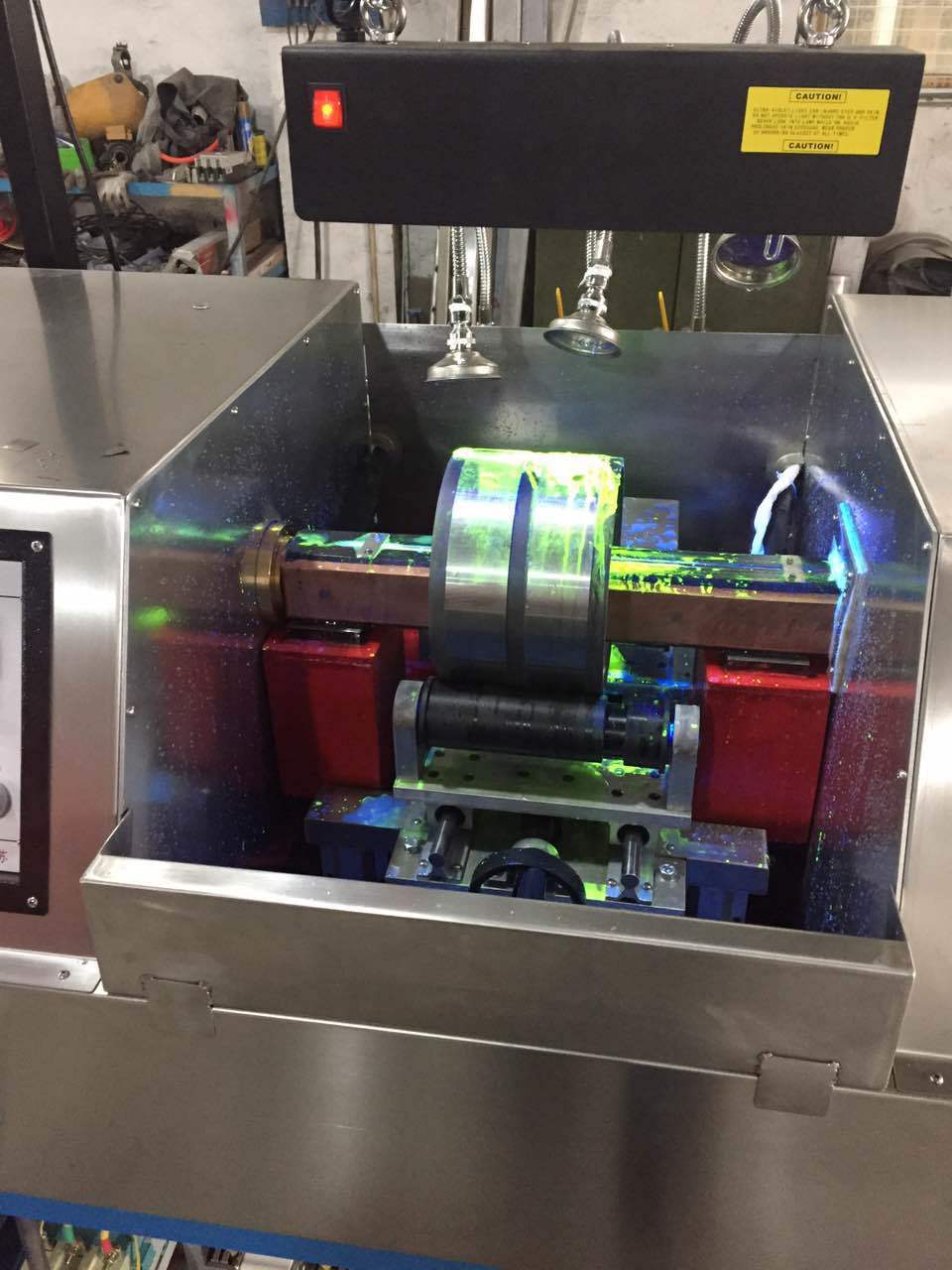

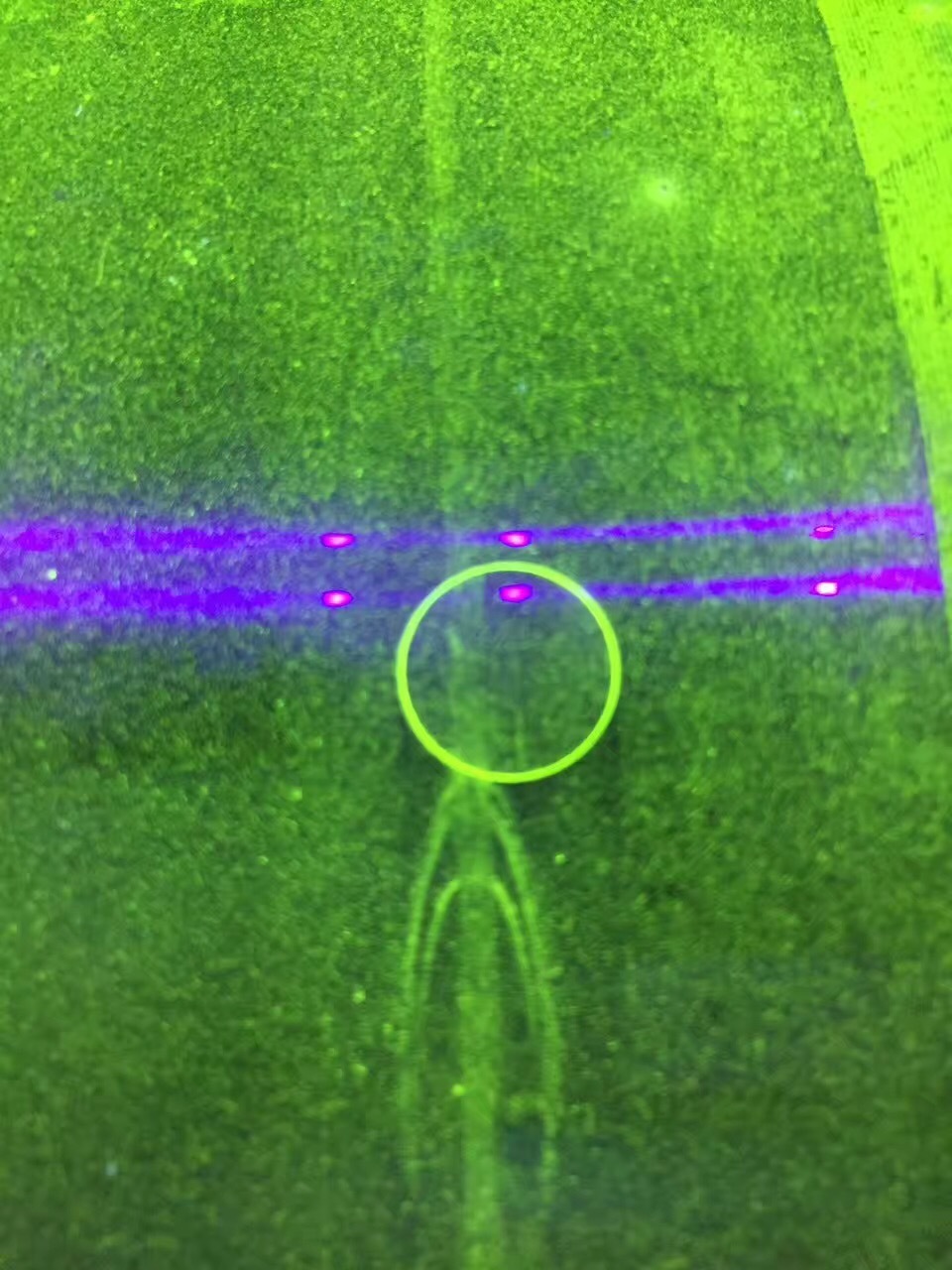

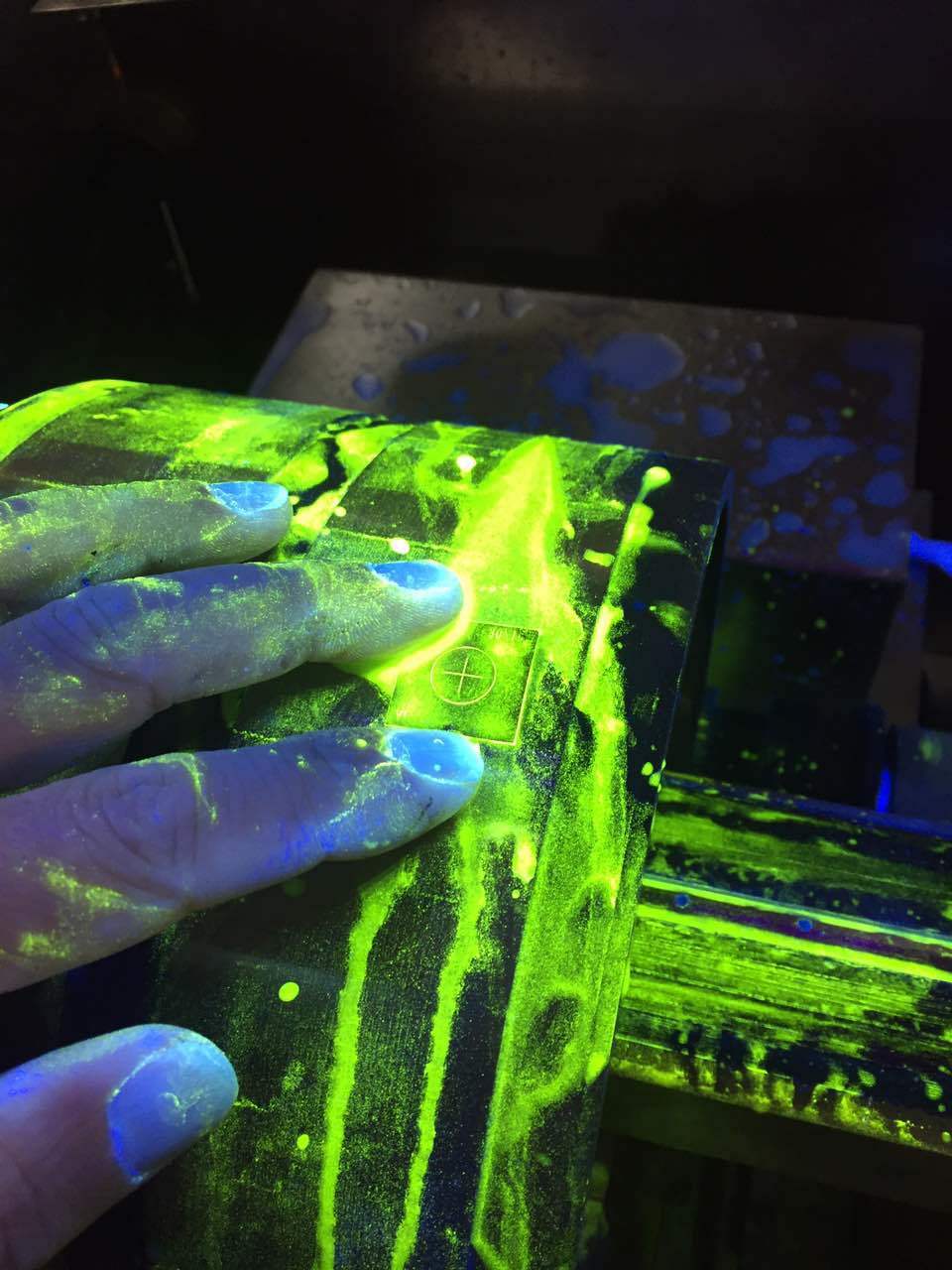

2. Use 15/50A1-type sensitivity test pieces affixed to the workpiece surface. After inspection, verify the overall system sensitivity by confirming all artificial flaws are clearly visible.
3. Equipped with an imported programmable logic controller (PLC) to support both manual and automatic operation modes.
4. After demagnetization, the residual magnetism of the workpiece shall not exceed 0.3 mT.

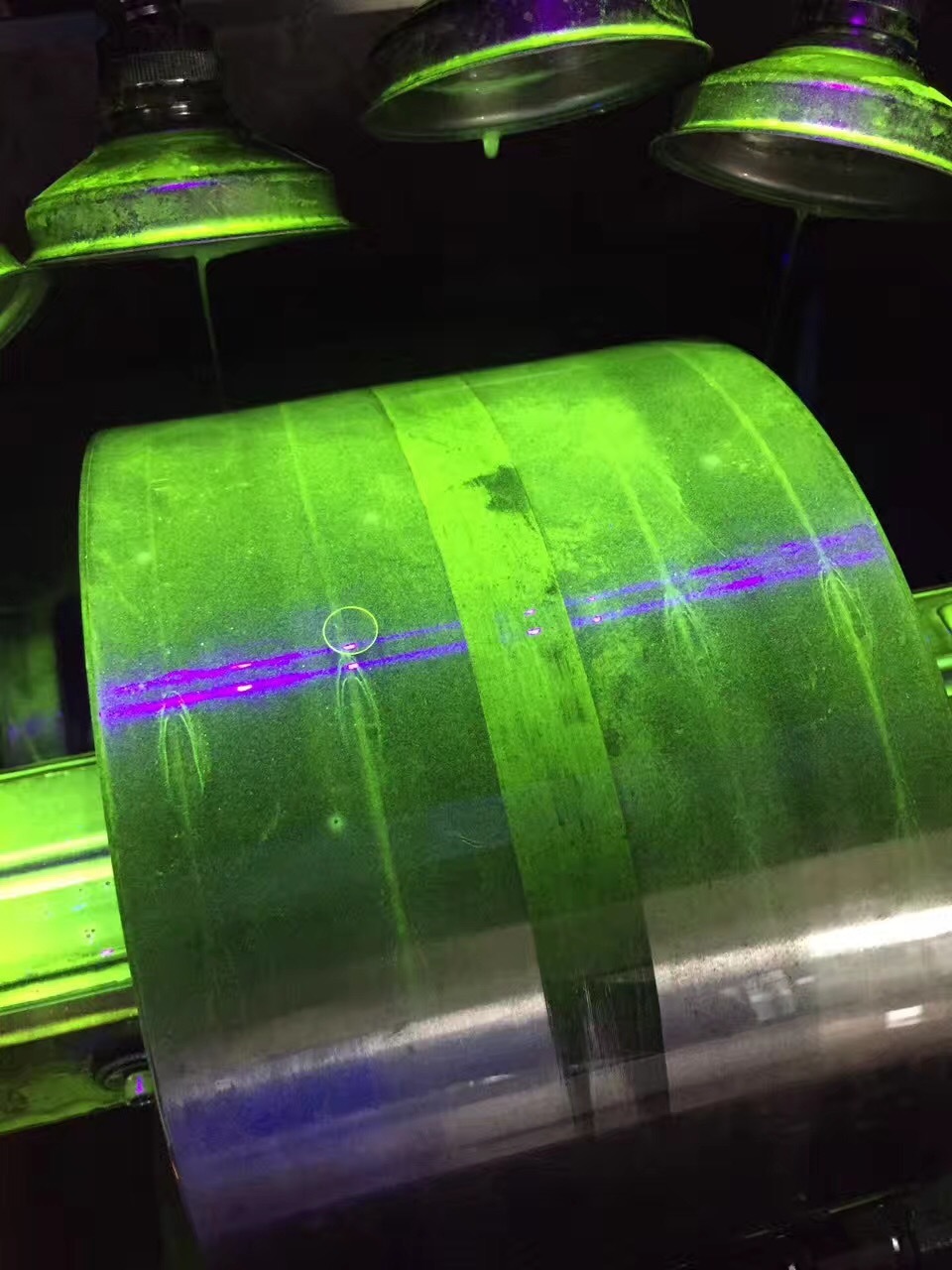

5. The workpiece shall rotate continuously during magnetization and magnetic suspension spraying.

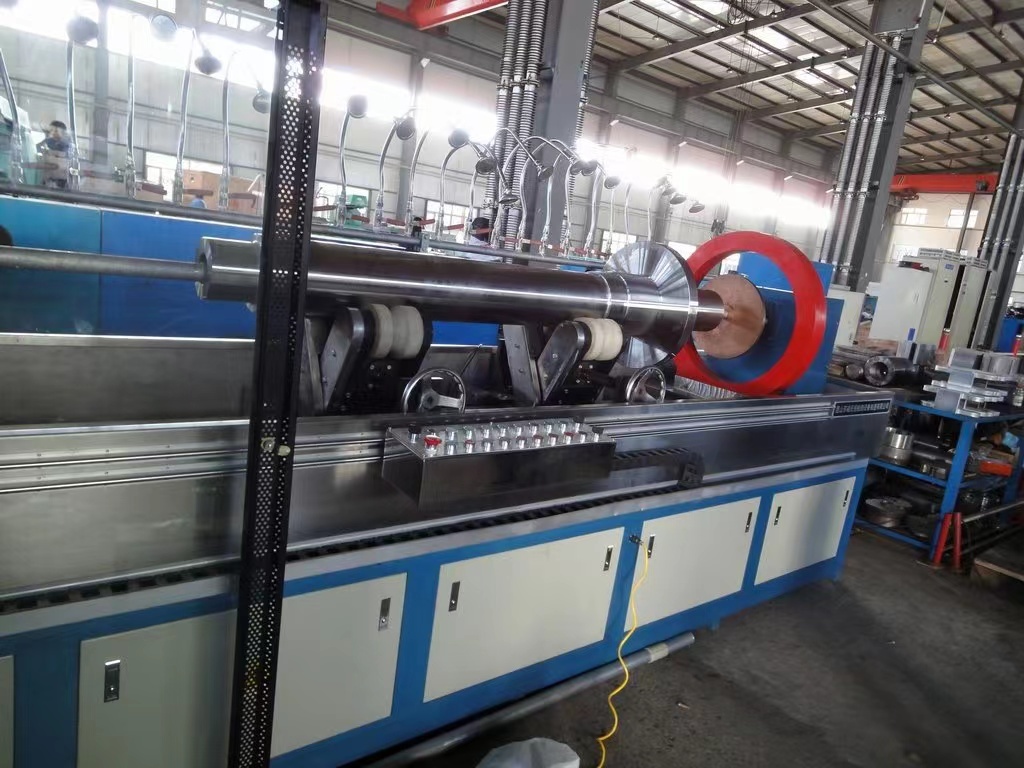

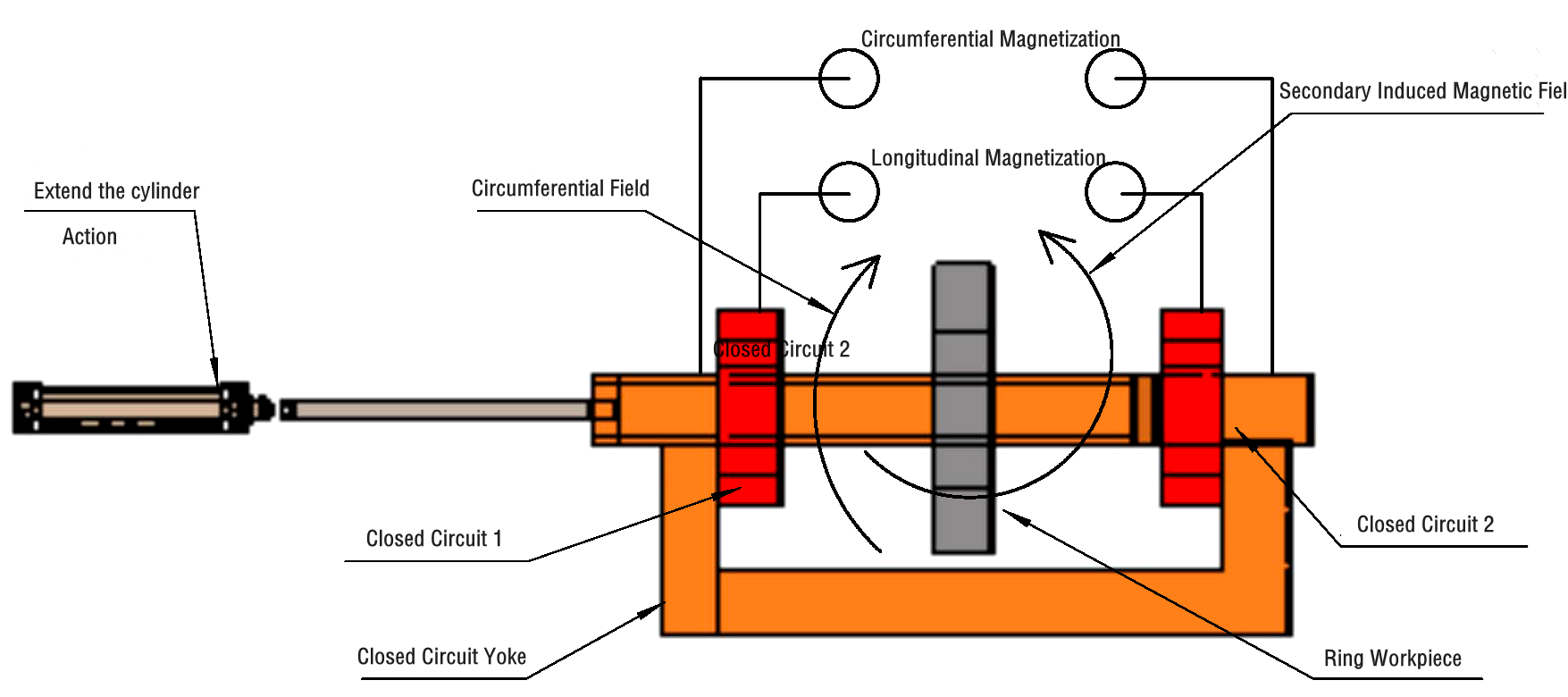

1. Magnetization modes: Circumferential magnetization, longitudinal magnetization, and combined magnetization.
2. Circumferential magnetization current: AC 0–6000 A (RMS), continuously adjustable, with power-off phase control.
3. Longitudinal magnetization magnetomotive force: AC 0–18000 AT (RMS), continuously adjustable, with power-off phase control.
4. Circumferential demagnetization current: AC 6000–0 A (RMS), continuously adjustable.
5. Longitudinal demagnetization magnetomotive force: AC 18000–0 AT (RMS), continuously adjustable.
6. Demagnetization mode: Automatic attenuation type.
7. Demagnetization effect: Residual magnetism ≤ 0.3 mT.
8. Electrode spacing: Electrically adjustable from 20 mm to 800 mm.
9. Duty cycle: ≥ 25%.
10. Clamping mode: Pneumatic clamping.
11. Operation mode: Manual / Automatic.
12. Flaw detection sensitivity: Clear visibility of indications on 15/50A1-type test pieces.
13. Flaw detection cycle: Approx. 20 seconds per cycle (excluding loading, unloading and observation time; detection time and process can be customized per customer requirements).
14. Power supply: Three-phase four-wire 380 V ±5%, 50 Hz, 250 A.
15. Dimensions (L×W×H): 2500 mm × 1000 mm × 1600 mm (including spray stand height).
16. Compressed air: 0.4–0.6 MPa.
17. Operating environment: Temperature −5 ℃ to +40 ℃, relative humidity ≤ 80%, free of corrosive gas, dust, and medium/high-frequency interference.
18. Weight: Approx. 2200 kg.
