Name: NDT Testing Fluorescent MPI Magnetic Particle Inspection Manual Automatic
Brand: Testech Group Co., Ltd
SKU: CDG-4000
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Years

Type: NDT Testing

Product Name: CDG-4000 Fluorescent Magnetic Particle Inspection(MPI)

Key Words: Fluorescent Magnetic Particle Inspection

Application: Inspection

Duty Cycle: ≥25%

Electrode Spacing: 0-1000mm, Manually Adjustable

Way Of Working: Manual / Automatic

Way Of Clamping: Pneumati

Weight: About 1300Kg

Highlight:

NDT Testing MPI Magnetic Particle Inspection

Fluorescent MPI Magnetic Particle Inspection

Automatic magnetic particle inspection test

Basic Infomation

Place of Origin: CHINA

Brand Name: TESTECH

Certification: CE; ISO

Model Number: CDG-4000

Payment & Shipping Terms

Packaging Details: in Wooden

Delivery Time: 15-30 days

Payment Terms: T/T, Credit Card, Paypal, Western Union

Supply Ability: 100 pcs per month

Gallery

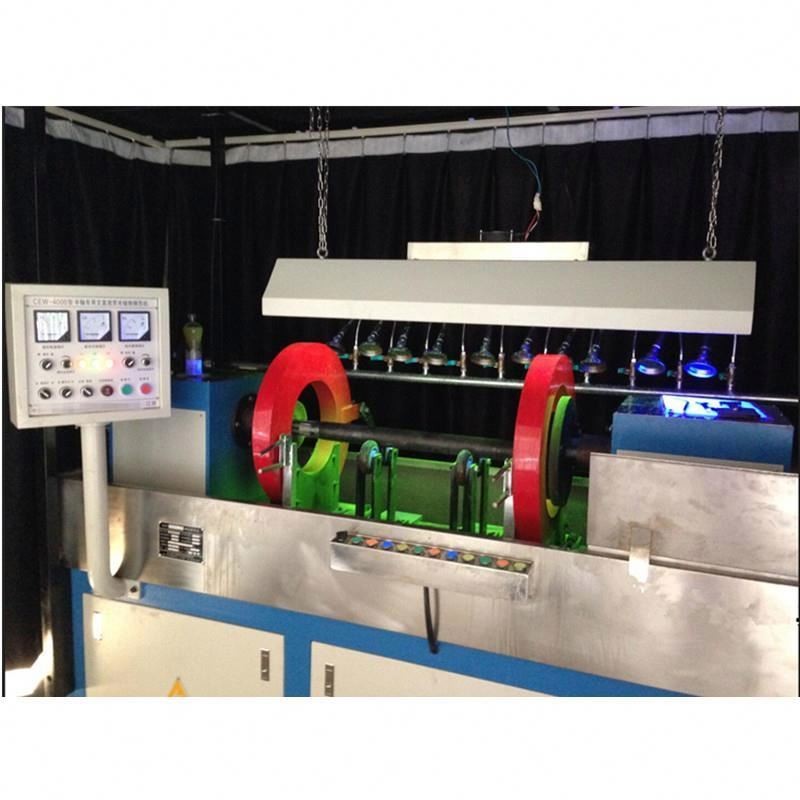

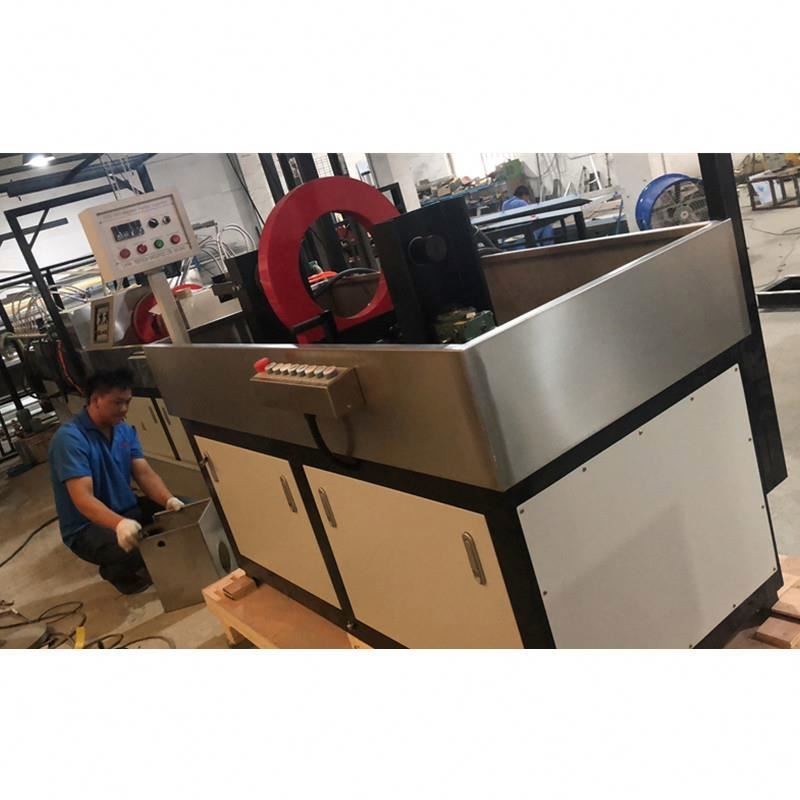

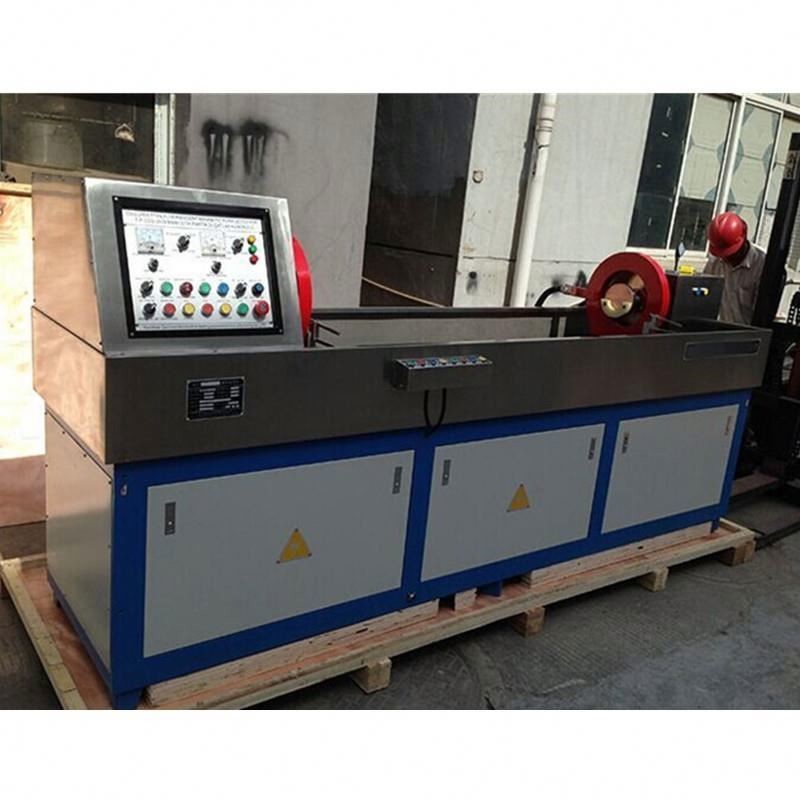

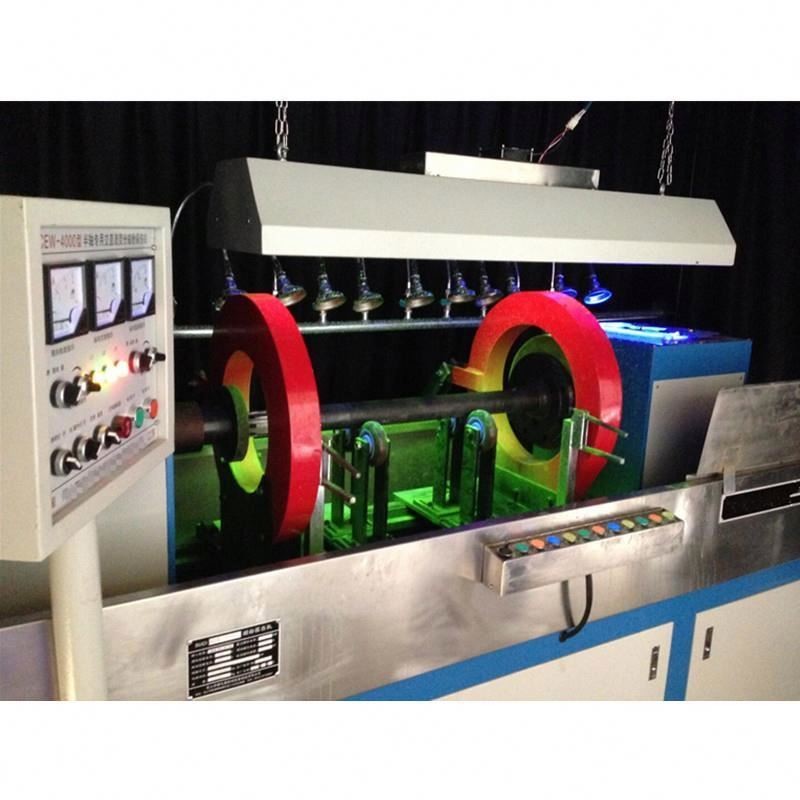

NDT Testing Fluorescent MPI Magnetic Particle Inspection Manual Automatic

Product Description

CDG-4000 Fluorescent Magnetic particle inspection(MPI)

Main Technical Parameters:

1. Circumferential magnetization current: AC 0-4000A effective value, continuously adjustable;

2. Longitudinal magnetization magnetic potential:AC 0-18000AT effective value, continuously adjustable;

3. Magnetization sensitivity: 15/50A 1 type specimen shows clearly;

4. Duty cycle: ≥25%;

5. Electrode spacing: 0-900mm, manually adjustable;

6. Way of working: manual / automatic;

7. Ways of magnetization: circumferential, longitudinal and compound magnetization;

8. Adjustment way of electrode spacing: manual;

9. Way of clamping: pneumatic;

10. Way of demagnetization: decay-type demagnetization;

11. Circumferential demagnetization current: AC 4000-0A, effective value, continuously adjustable;

Longitudinal demagnetization magnetic potential: AC 18000-0AT, effective value, continuously adjustable;

12. Demagnetization effect: ≤240A/M (0.3mT);

13. UV radiation intensity: ≥1000μW/㎝² of workpiece surface away the light source 380mm;

14. Power supply: three-phase four-wire 380V±10% 50HZ instantaneous 80A;

15. Outline dimension: 2200 (length) *800(width) *1500(height) mm;

16. Weight: about 1600Kg.

Magnetic particle inspection(MPI)

Warning

※Before operation and use, must carefully read the Operation Instruction, and fimiliar with each button’s function and entire workflow of equipment;

※When operate or use it, the operator and user must show their certificates, or else may directly cause misjudgment, or even omission;

※The configuration cable of equipment is rigorously measured, shall not be lengthened or shortened optionally, or else may cause equipment’s magnetization current supply be in short, or very likely to cause equipment’s overload and damage;

※Power inlet wire is configured strictly according to technical parameters’ requirements, and must add automatic air switch with corresponding functions;

※The equipment shall not be parallel with intermediate and high frequency equipments of high-power;

※The equipment must be reliably grounded.
