Name: 380V 3PH 50Hz MPI Magnetic Particle Inspection Equipment With Demagnetization
Brand: Testech Group Co., Ltd
SKU: CDG-4000
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Years

Type: NDT Testing

Sensitivity: 15/50A1 Clear Display

Circumferential Current: 0-4000A AC

Longitudinal Magnetic Potential: 0-18000AT AC

Product Name: CDG-4000 Fluorescent Magnetic Particle Inspection(MPI)

Key Words: Fluorescent Magnetic Particle Inspection

Power Supply: 380V 3PH 50Hz

Duty Cycle: ≥25%

Electrode Spacing: 0-900mm, Manually Adjustable

Way Of Working: Manual / Automatic

UV Intensity: ≥1000μW/cm²

Way Of Clamping: Pneumatic Clamping

Weight: About 1300Kg

Highlight:

380V MPI Magnetic Particle Inspection

3PH MPI Magnetic Particle Inspection

MPI magnetic particle inspection ndt

Basic Infomation

Place of Origin: CHINA

Brand Name: TESTECH

Certification: CE; ISO

Model Number: CDG-4000

Payment & Shipping Terms

Packaging Details: in Wooden

Delivery Time: 15-30 days

Payment Terms: T/T, Credit Card, Paypal, Western Union

Supply Ability: 100 pcs per month

Gallery

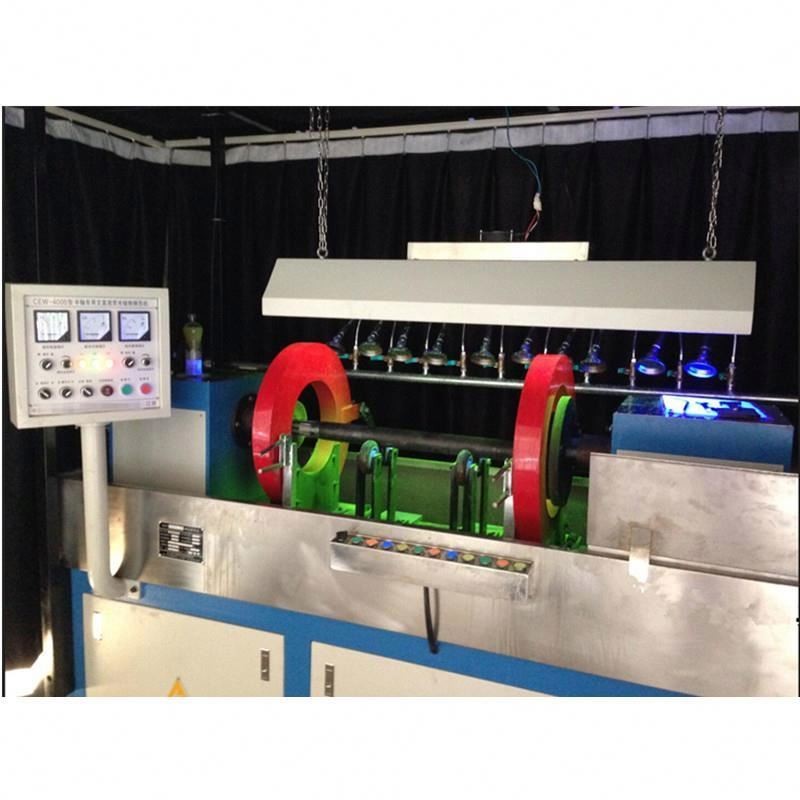

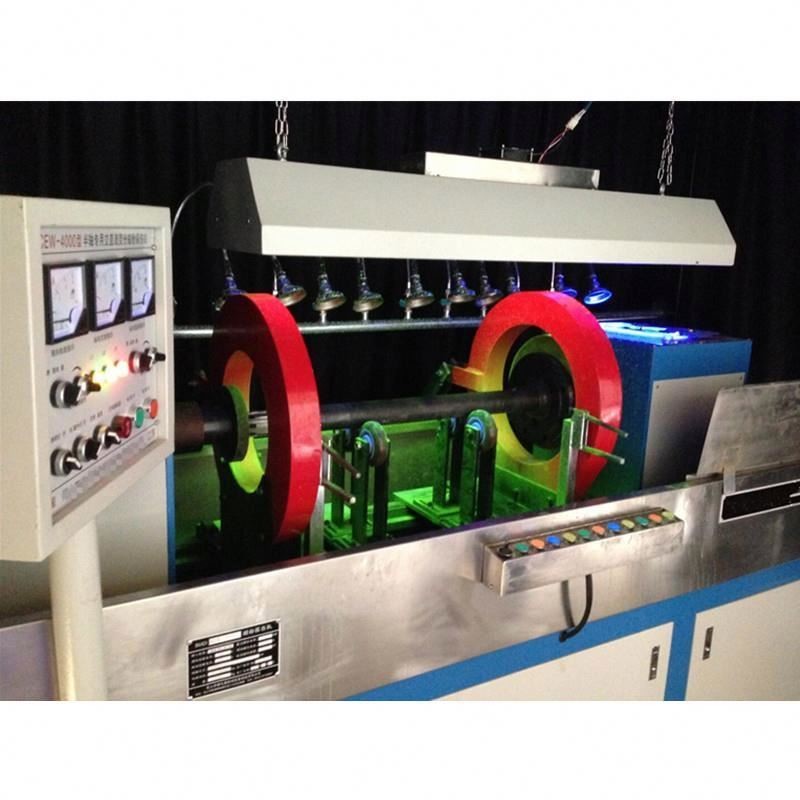

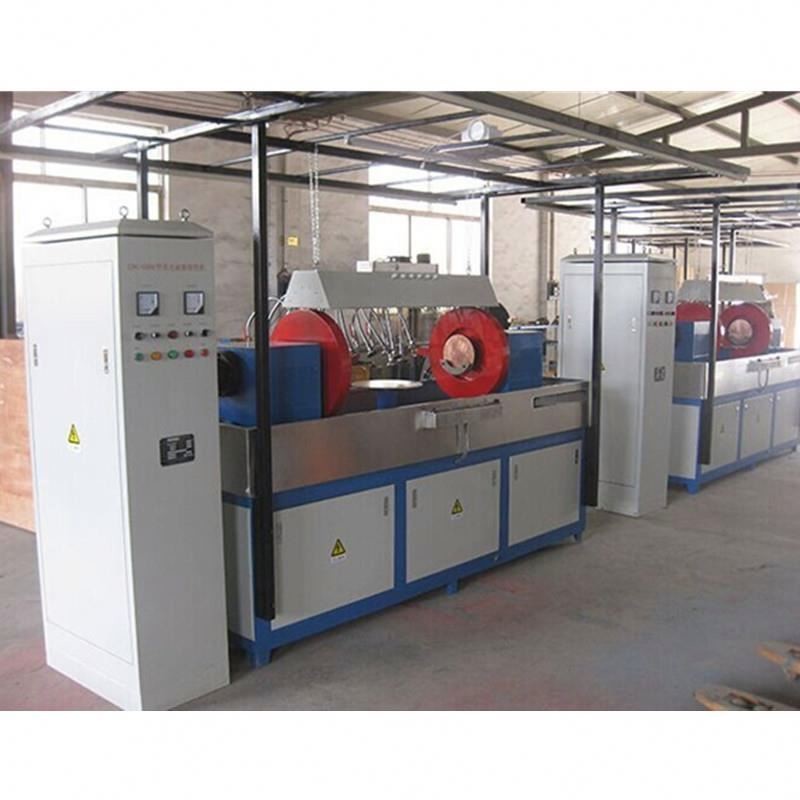

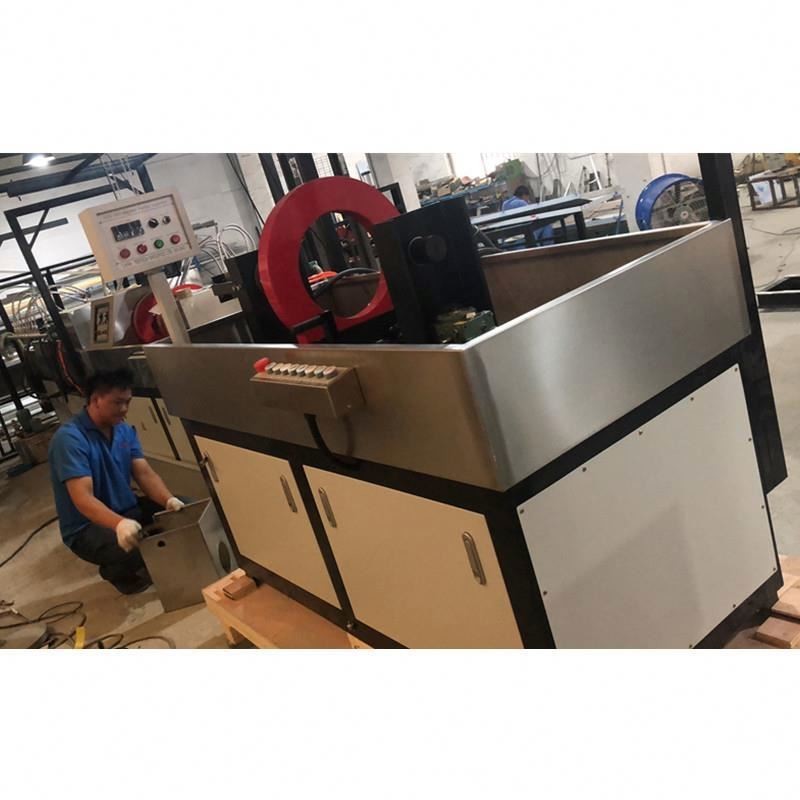

380V 3PH 50Hz MPI Magnetic Particle Inspection Equipment With Demagnetization

Product Description

CDG-4000 Fluorescent Magnetic particle inspection(MPI)

Main Technical Parameters:

Circumferential magnetization current: AC 0-4000A effective value, continuously adjustable;
Longitudinal magnetization magnetic potential:AC 0-18000AT effective value, continuously adjustable;
Magnetization sensitivity: 15/50A 1 type specimen shows clearly;
Duty cycle: ≥25%;
Electrode spacing: 0-900mm, manually adjustable;
Way of working: manual / automatic;
Ways of magnetization: circumferential, longitudinal and compound magnetization;
Adjustment way of electrode spacing: manual;
Way of clamping: pneumatic;
Way of demagnetization: decay-type demagnetization;
Circumferential demagnetization current: AC 4000-0A, effective value, continuously adjustable; Longitudinal demagnetization magnetic potential: AC 18000-0AT, effective value, continuously adjustable;
Demagnetization effect: ≤240A/M (0.3mT);
UV radiation intensity: ≥1000μW/㎝² of workpiece surface away the light source 380mm;
Power supply: three-phase four-wire 380V±10% 50HZ instantaneous 80A;
Outline dimension: 2200 (length) *800(width) *1500(height) mm;
Weight: about 1600Kg.
