Name: CDG-2000 AC Electrode Spacing 0-600mm Crankshaft Fluorescent MPI Inspection OEM
Brand: Testech Group Co., Ltd
SKU: CDG-2000
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Year

Customized Support: OEM

Product Name: Crankshaft Fluorescent Magnetic Particle Inspection

Model: CDG-2000

Electrode Spacing: 0-600mm, Manually Adjustable

Way Of Working: Manual / Automatic

Way Of Clamping: Pneumatic

Demagnetization Effect: ≤240A/M (0.3mT)

Outline Dimension: 2200 (length) *800(width) *1500(height) Mm

Weight: 1200Kg

Power Supply: 380V±10% 50HZ Instantaneous 80A;

Magnetization Sensitivity: 15/50A 1 Type Specimen Shows Clearly

Highlight:

600mm fluorescent mpi inspection

Crankshaft fluorescent mpi inspection

OEM fluorescent mpi

Basic Infomation

Place of Origin: CHINA

Brand Name: TESTECH

Certification: CE; ISO

Model Number: CDG-2000

Payment & Shipping Terms

Packaging Details: in Wooden

Delivery Time: 15-30 days

Payment Terms: T/T, Credit Card, Paypal, Western Union

Supply Ability: 100 pcs per month

Gallery

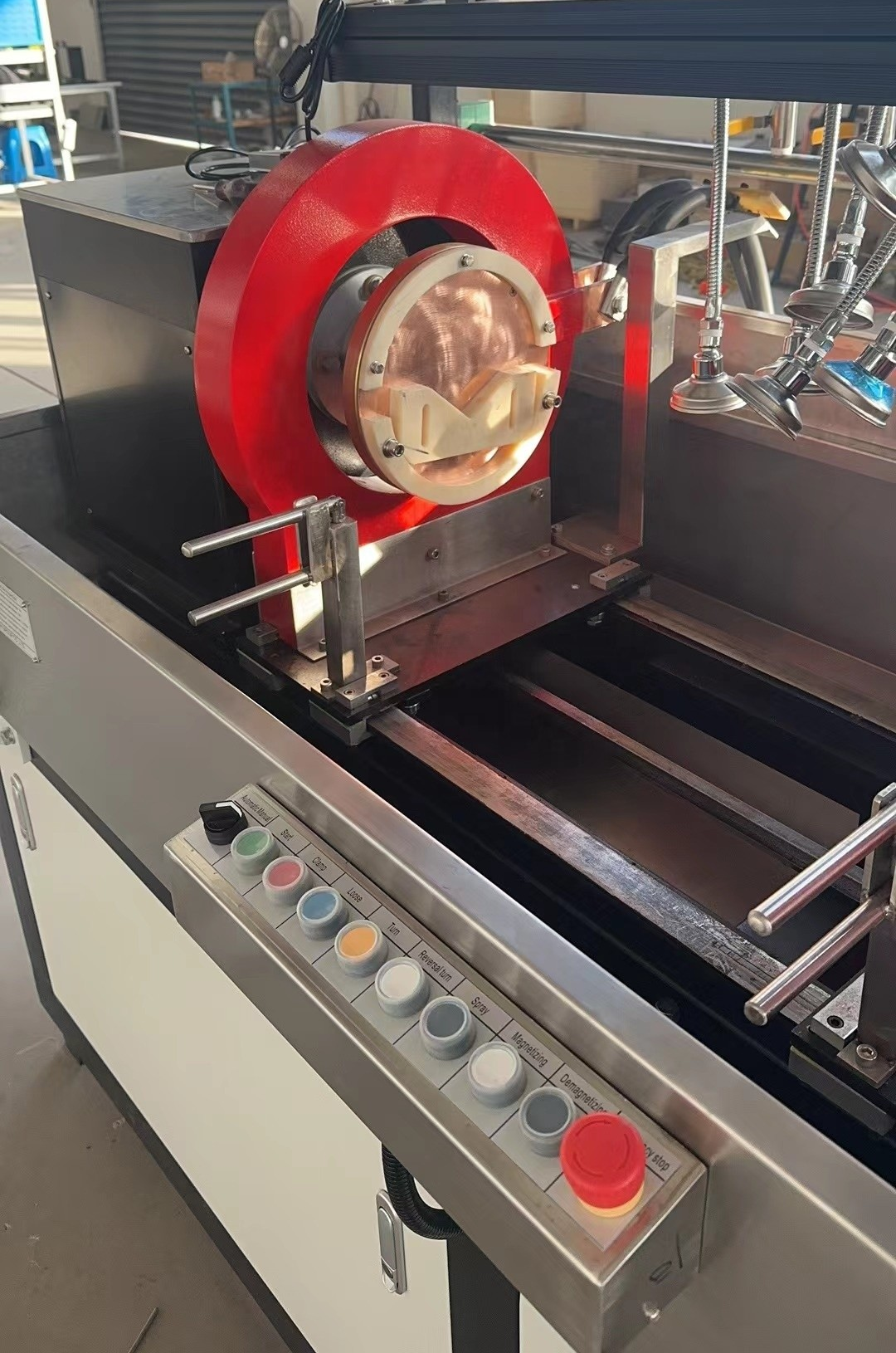

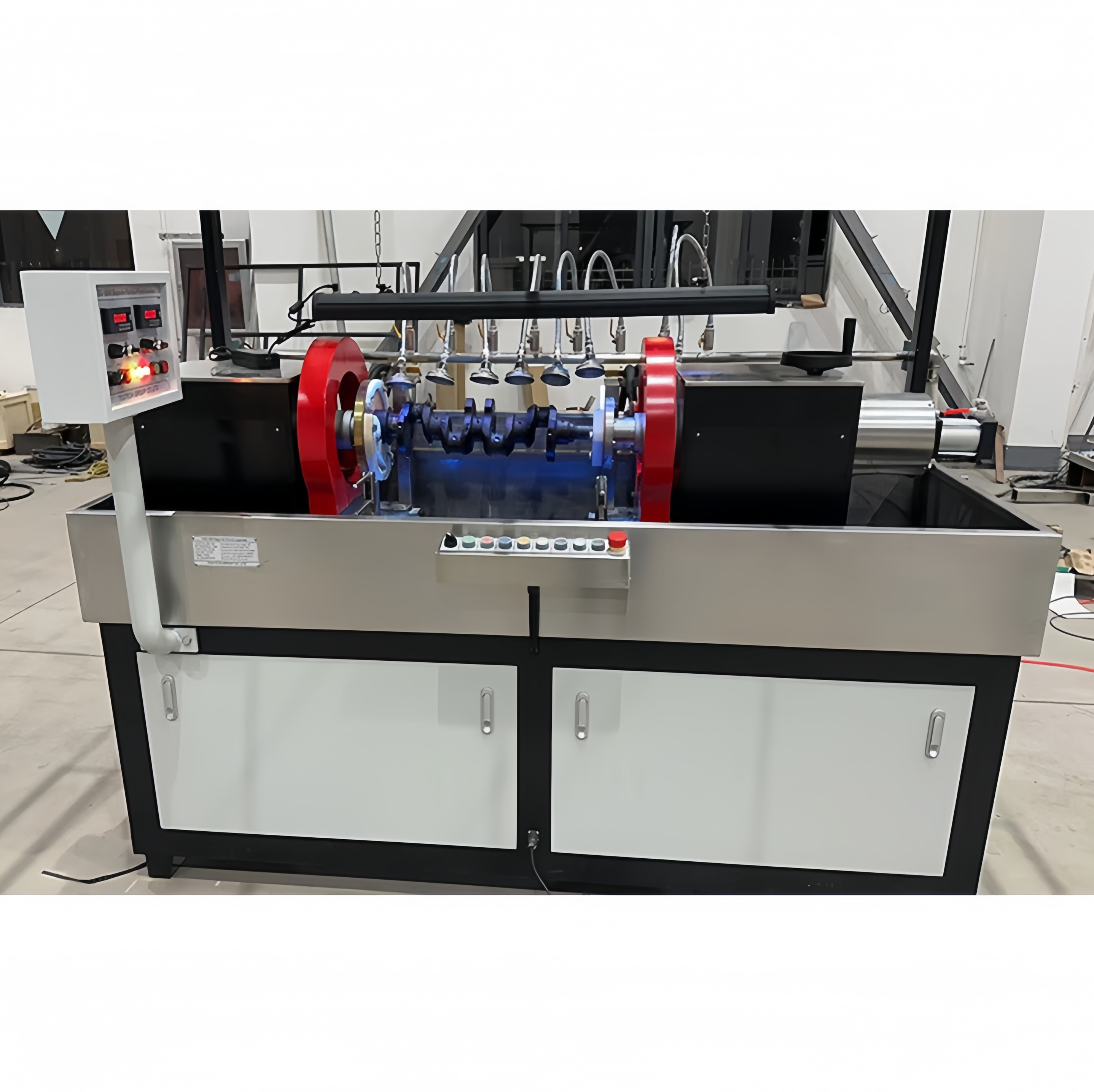

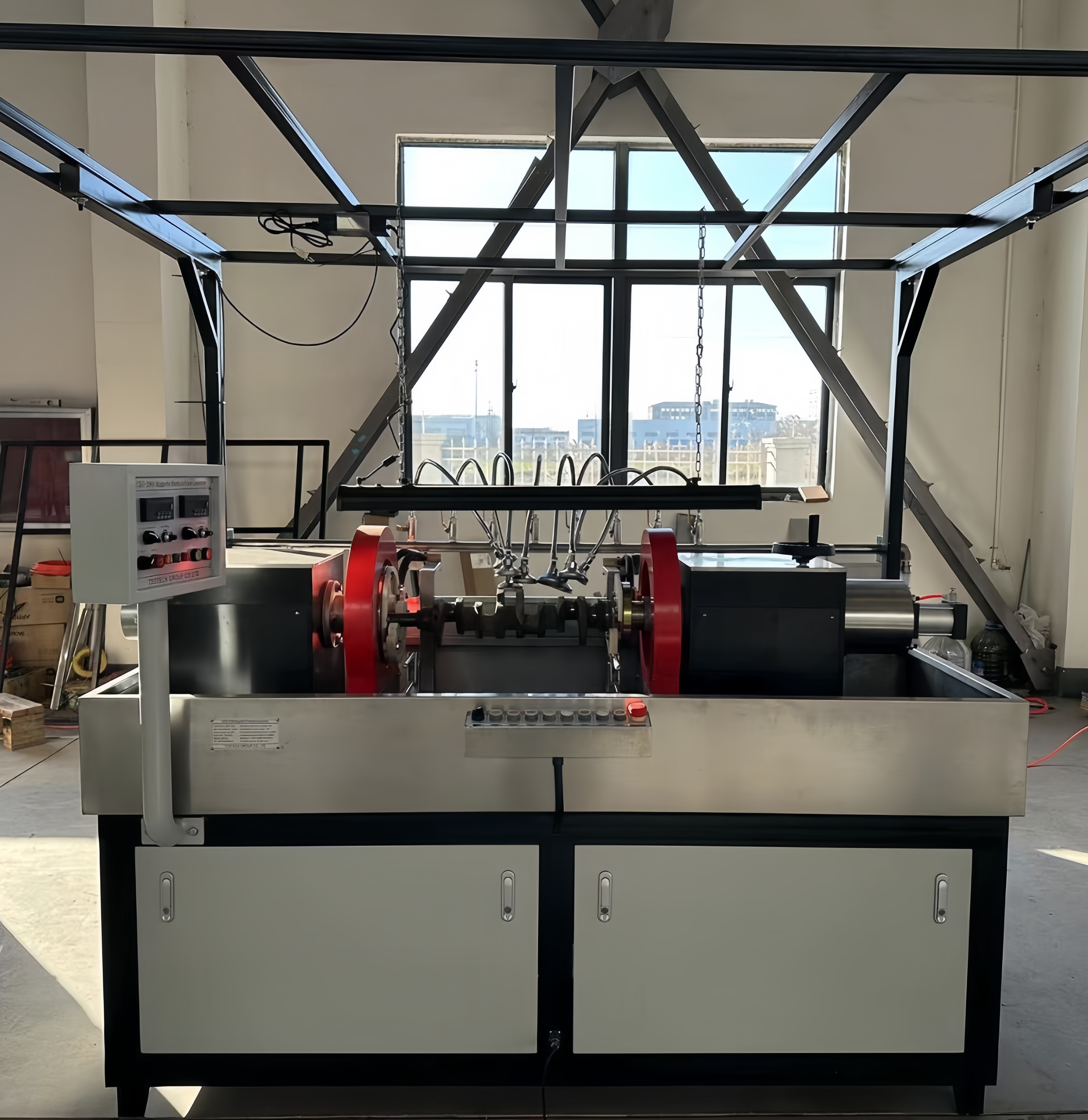

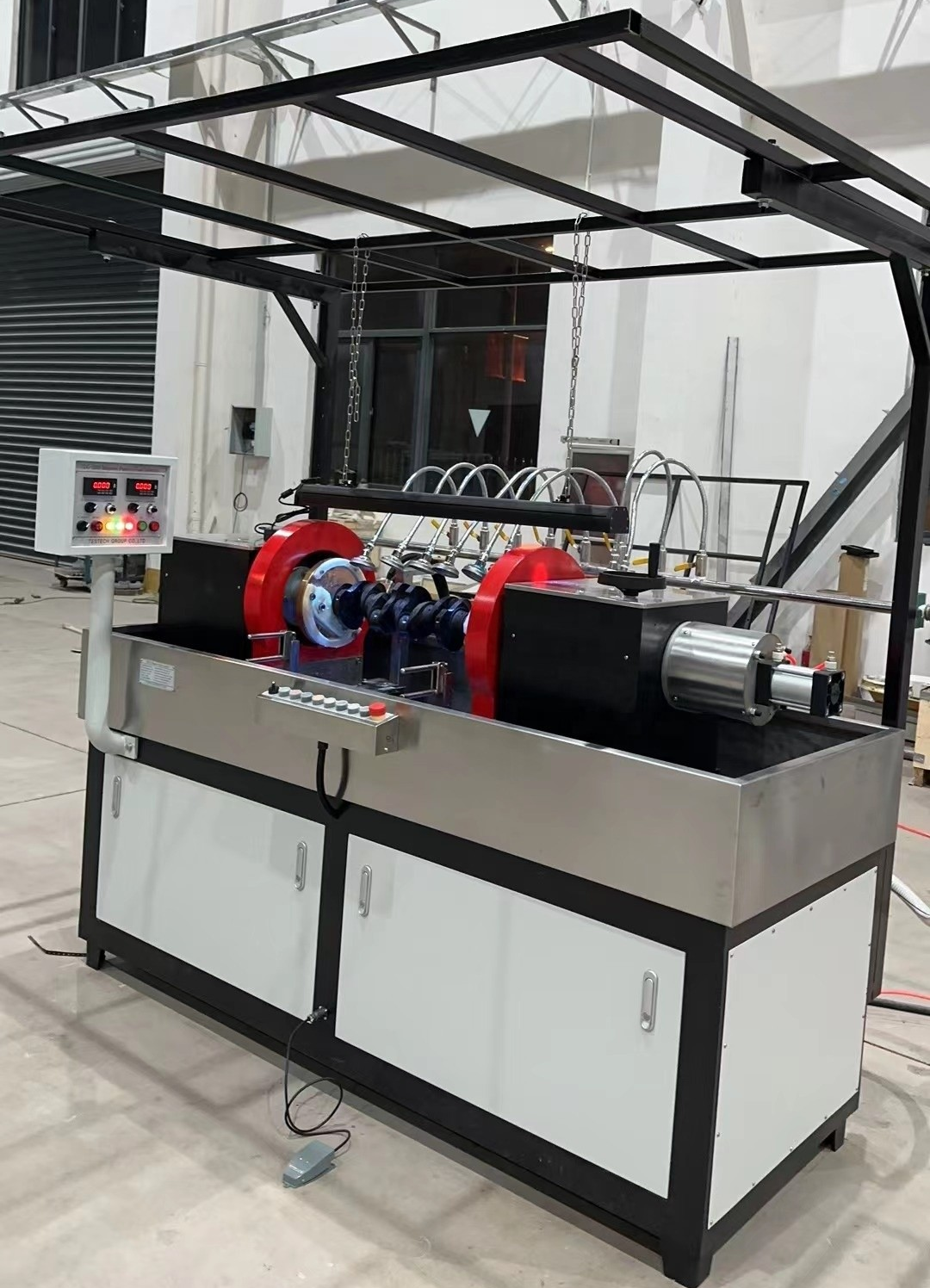

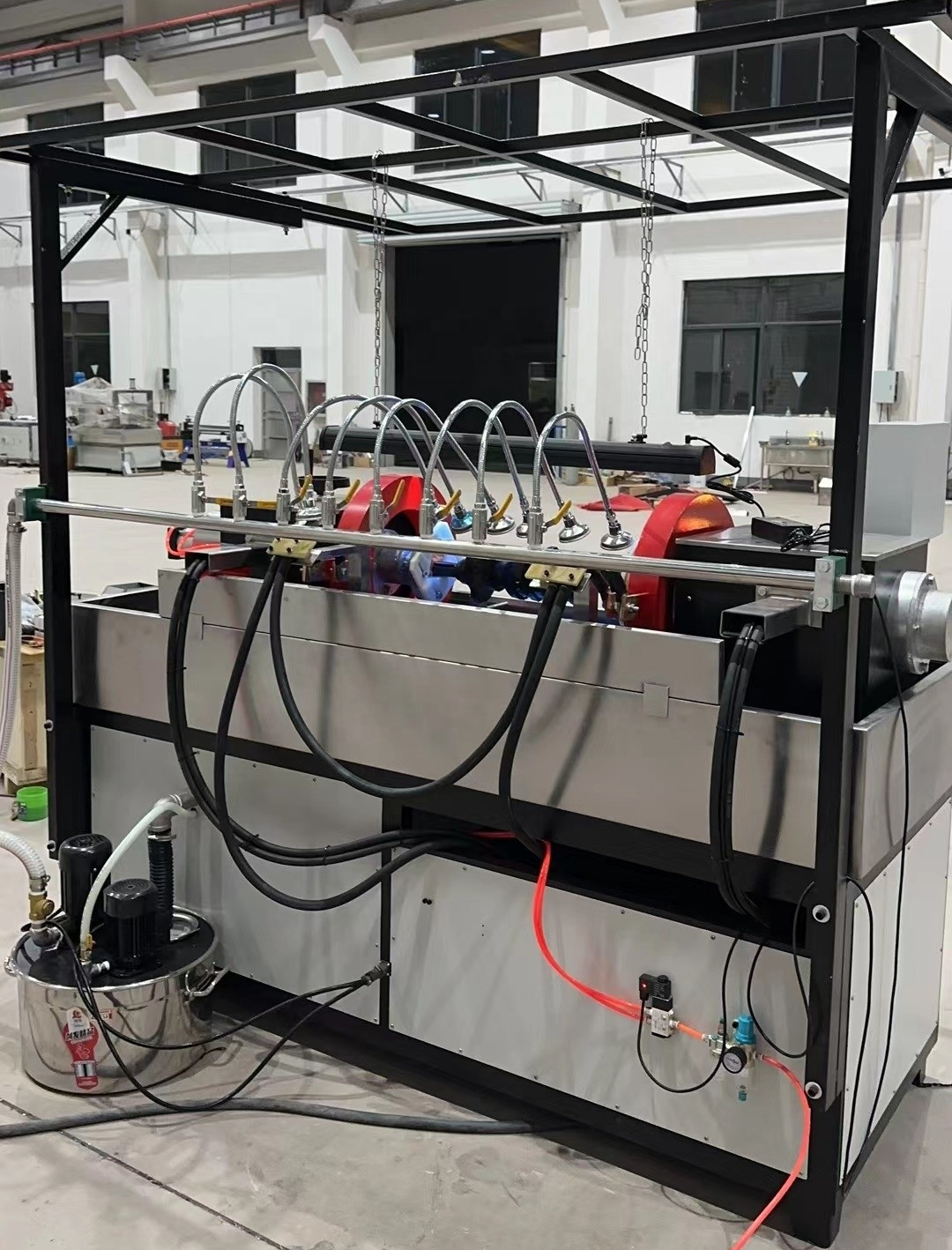

CDG-2000 AC Electrode Spacing 0-600mm Crankshaft Fluorescent MPI Inspection OEM

Product Description

CDG-2000 AC Electrode Spacing 0-600mm Crankshaft Fluorescent Magnetic Particle Inspection

Product name	Crankshaft fluorescent Magnetic particle inspection
Model	CDG-2000

Technical Parameters

Circumferential magnetization current: AC 0-2000A effective value, continuously adjustable;
Longitudinal magnetization magnetic potential:AC 0-18000AT effective value, continuously adjustable;
Magnetization sensitivity: 15/50A 1 type specimen shows clearly;
Duty cycle: ≥25%;
Electrode spacing: 0-600mm, manually adjustable;
Way of working: manual / automatic;
Ways of magnetization: circumferential, longitudinal and compound magnetization;
Adjustment way of electrode spacing: manual;
Way of clamping: pneumatic;
Way of demagnetization: decay-type demagnetization;
Circumferential demagnetization current: AC 2000-0A, effective value, continuously adjustable; Longitudinal demagnetization magnetic potential: AC 18000-0AT, effective value, continuously adjustable;
Demagnetization effect: ≤240A/M (0.3mT);
UV radiation intensity: ≥1000μW/㎝² of workpiece surface away the light source 380mm;
Power supply: three-phase four-wire 380V±10% 50HZ instantaneous 80A;
Outline dimension: 2200 (length) *800(width) *1500(height) mm;
Weight: about 1200Kg.
