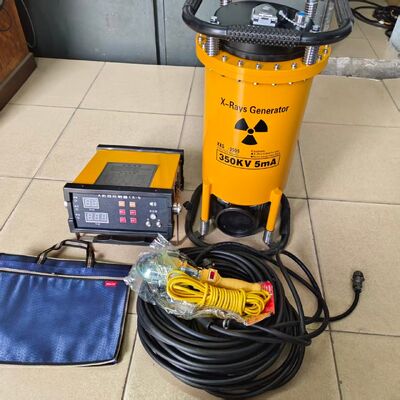

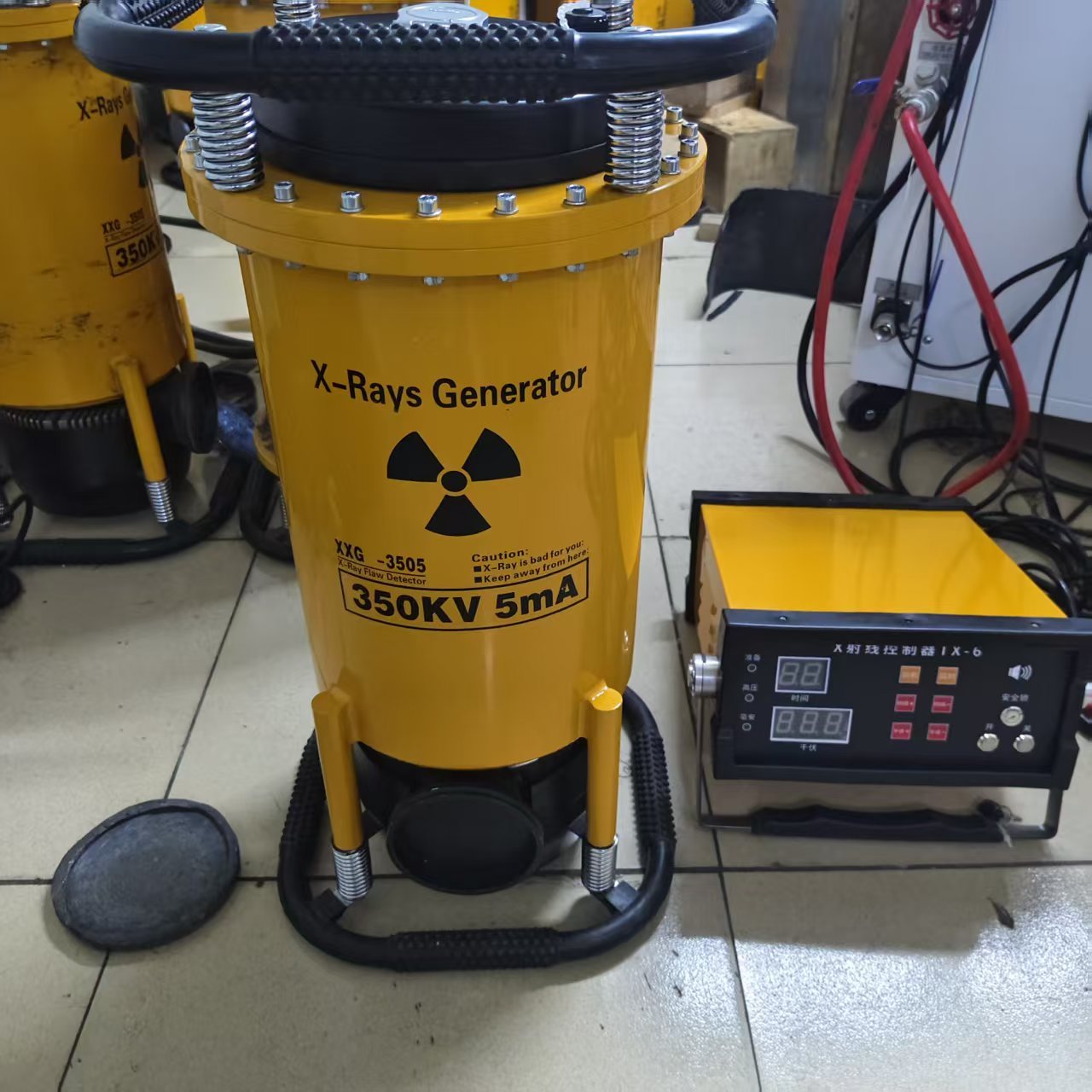

XXG-3505 350KV Electronic NDT Industrial X-ray Machine with 60mm Penetration

XXG-3505 is a portable, inflatable SF6-insulated X-ray flaw detector for industrial NDT (Non-Destructive Testing). It uses a ceramic X-ray tube, features directional radiation, and is widely applied in shipbuilding, aerospace, pressure vessels, oil & gas pipelines, and heavy machinery to detect internal defects (cracks, voids, inclusions) in metallic materials.

• Inflatable SF6 Design: Compact, lightweight, easy on-site transport & setup.
• Ceramic X-Ray Tube: Shockproof, longer service life than glass tubes.
• Microcomputer Control: Precise KV/time/delay settings; auto self-check & fault diagnosis.
• Full Safety Protection: Over-voltage, over-current, over-temperature, and low-mA protection; audio-visual alarm.
• Anti-Interference: Stable operation in harsh field environments (e.g., unstable power grids).
• Delay HV Start: Allows operators to leave the radiation zone before exposure.

The XXG-3505 generates X-rays via a high-voltage ceramic tube. X-rays penetrate the test material; differences in material thickness/density cause varying absorption, forming high-contrast images on X-ray film. Defects (cracks, voids) appear as darker/lighter areas, enabling accurate evaluation of defect size, shape, and location.

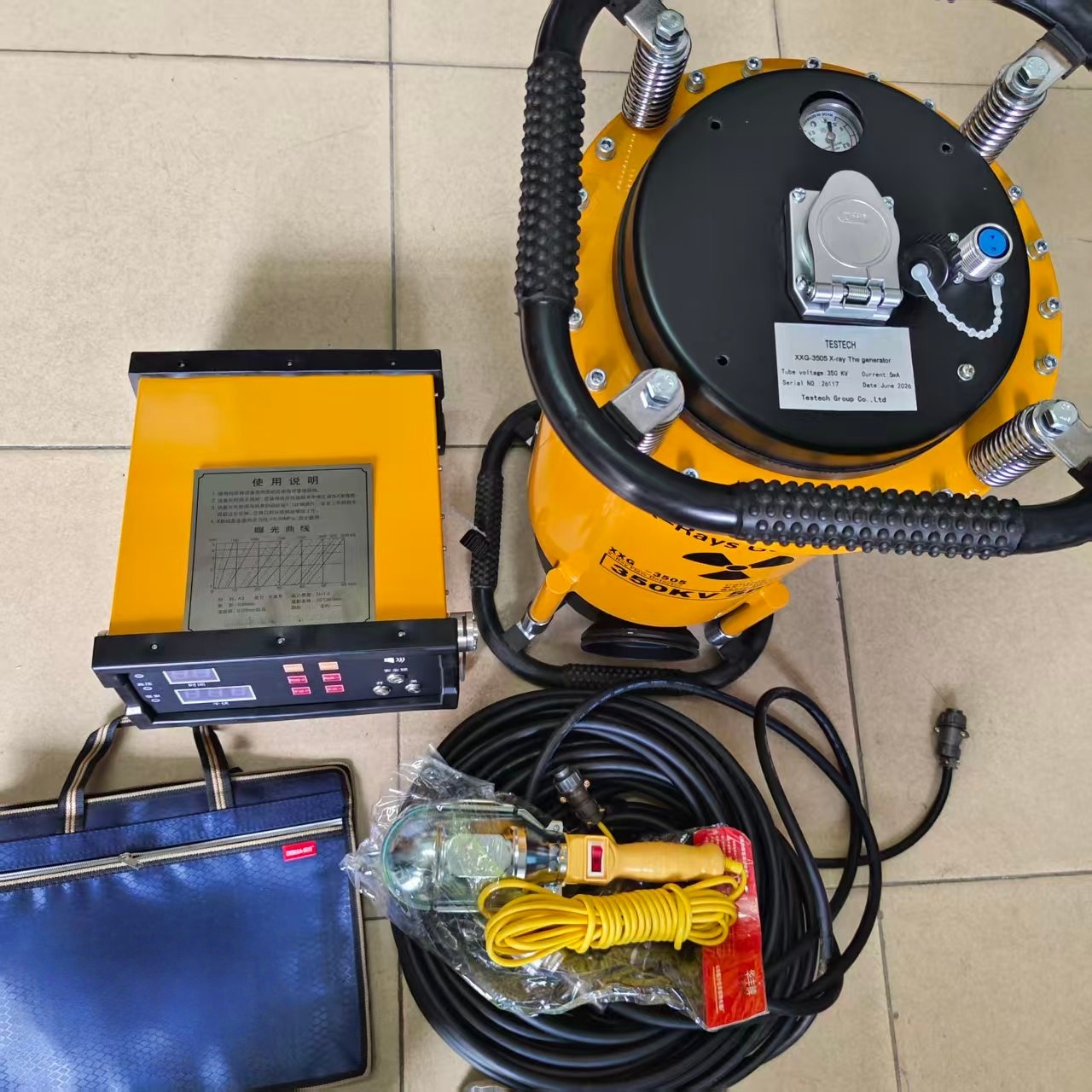

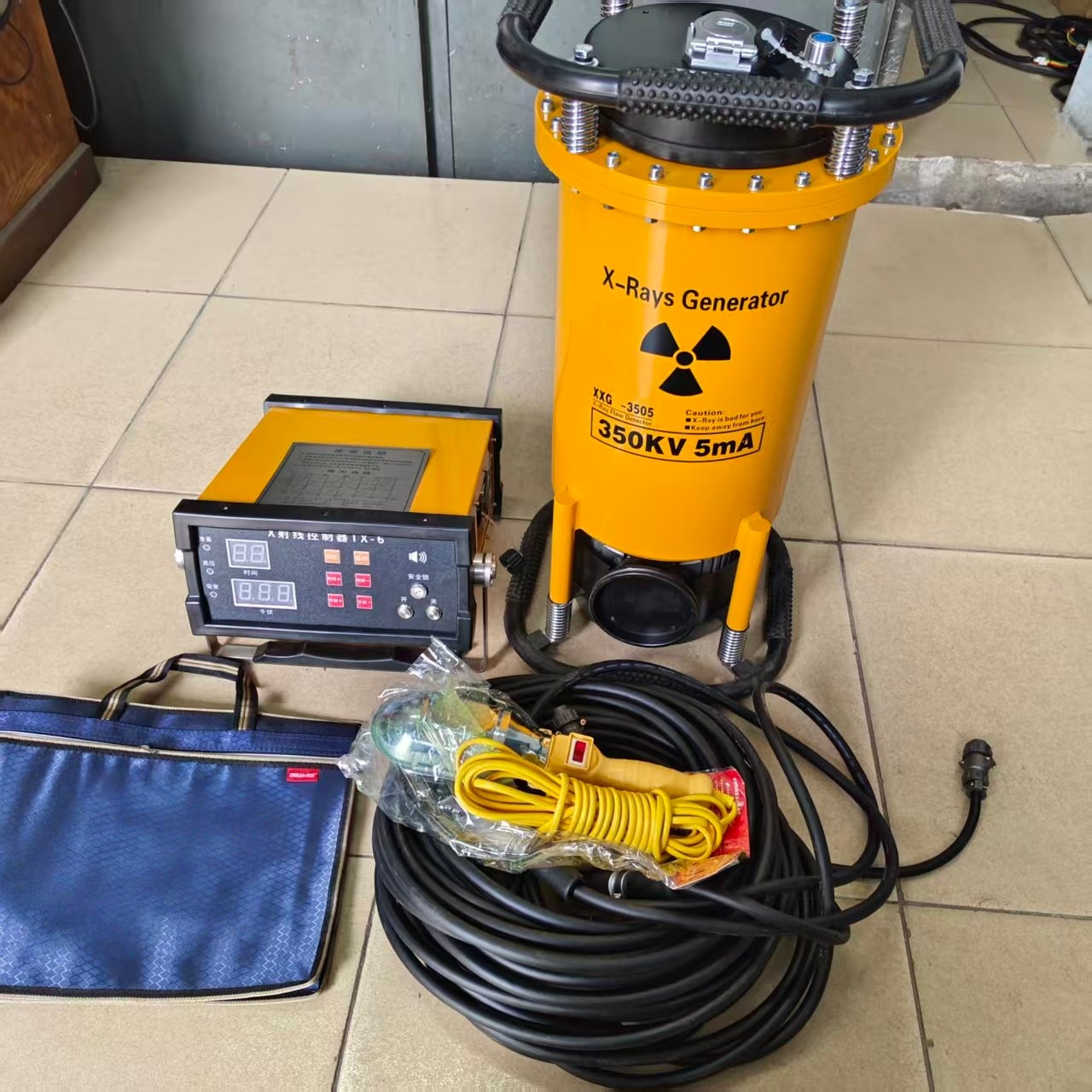

• 1 * XXG-3505 X-ray Generator
• 1 * Portable Controller
• 1 * High-Voltage Cable
• 1 * Power Cable
• 1 * User Manual (English)
• Spare Parts & Tools
