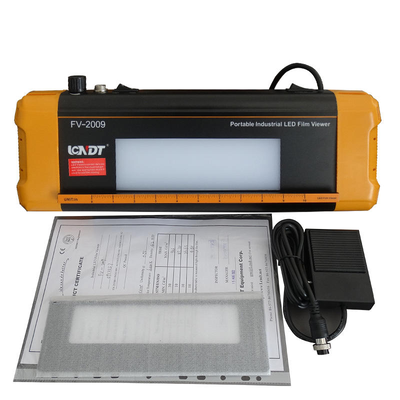

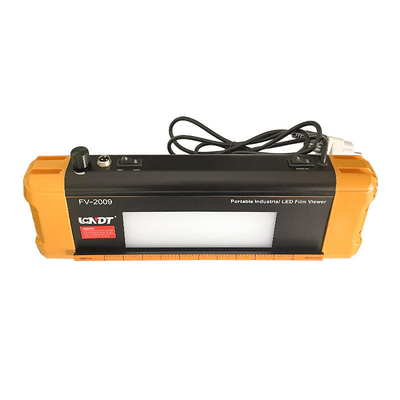

FV‑2009 Portable LED Industrial X Ray Film Viewer NDT Radiographic Film Illuminator

FV‑2009 LED Film Viewer is developed in accordance with ISO 5580 Norm for Industrial Radiographic Illuminators – Minimum Requirements. Building on the proven design of the FV‑2008 model, it adopts a high‑power LED area light source, delivering high brightness and excellent light uniformity, with a theoretical service life of more than 50,000 hours.

Featuring a portable, rugged and compact structure, the FV‑2009 is highly suitable for field operation. It supports film viewing up to 4.0 H/D, fully meeting daily inspection requirements.

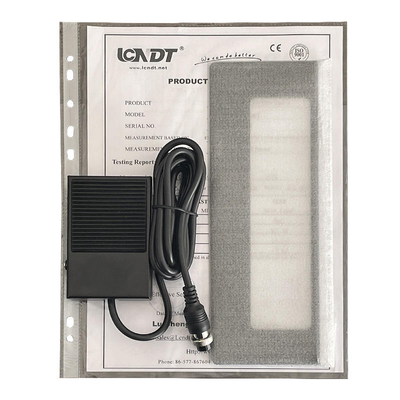

The unit is equipped with a custom constant‑current power supply, which effectively protects the LED module and prolongs its service life. For safe operation, a low‑voltage PWM stepless dimmer is adopted. Both foot control and hand control modes are available.

• Maximum Luminance: ≥103,000 cd/m² (323,420 lux)
• Uniformity: g ≥ 0.95
• Diffusion Factor: σ’ ≥ 0.95
• Viewer Window: 200 × 60 mm
• Surface Temperature Rise: ≤ 15 °C after 12 hours of continuous operation at maximum brightness
• Power Supply: 85–264 VAC, 47–63 Hz (wide voltage range)
• Dimensions: 455 × 140 × 65 mm (L×W×H) / 17.9 × 5.5 × 2.6 inches
• Weight: 2.5 kg (5.5 lbs)
