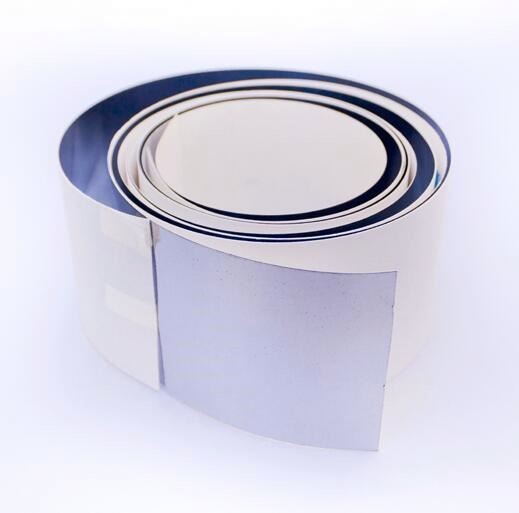

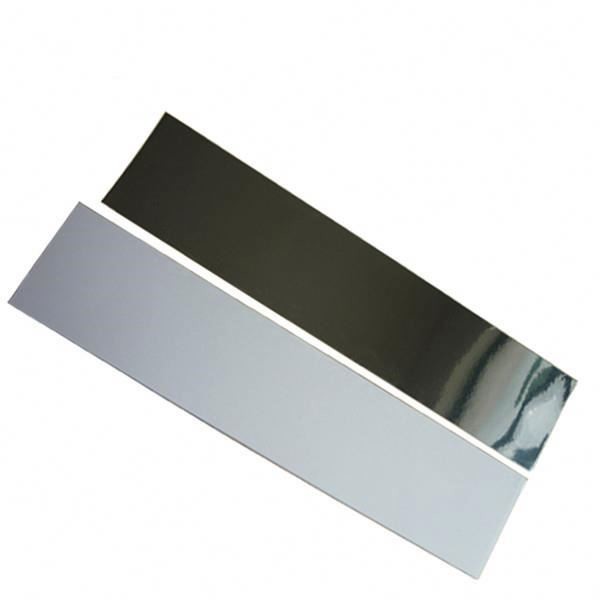

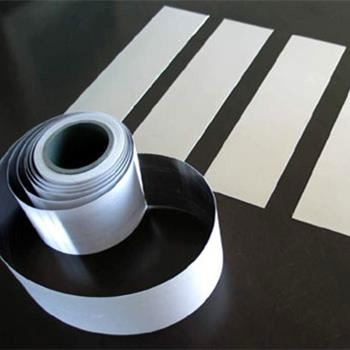

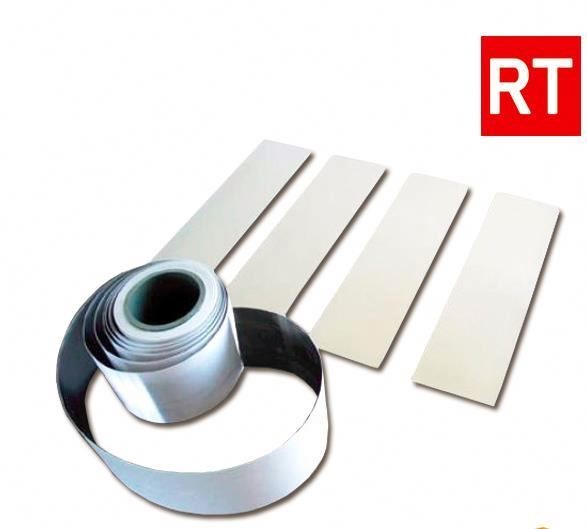

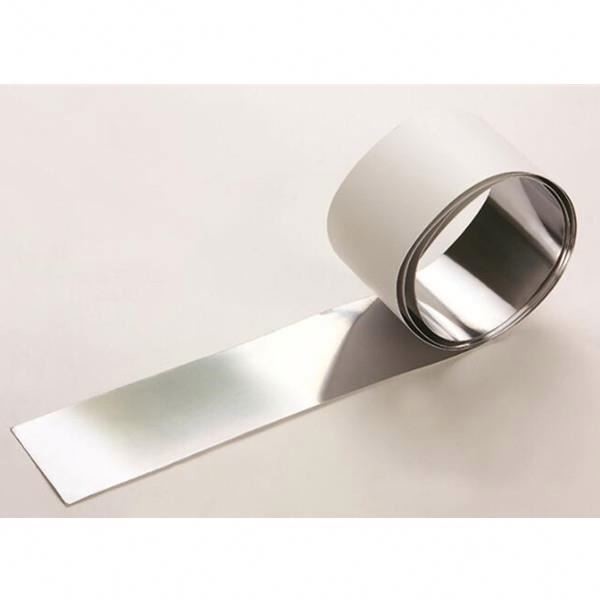

Weld Inspection Lead Intensifying Screen NDT Radiography Testing

Intensifying Screens are primarily used to intensify the radiographic image. They are generally used in pairs by placing the x-ray film between the bare lead surfaces of the screens. Each screen surface is protected with a semitransparent coating, which must be peeled off prior to use. For maintaining long-lasting screens it is highly recommended that a cassette be used.

The base material

• Paper or PVC
• The size can be customed according to clients' requirement
• The width is up to 430mm, the thickness is 0.03mm to 0.25mm

• 80.5x150x0.1mm
• 100x120x0.1mm
• 100x200x0.1mm
• 100x240x0.1mm
• 180x240x0.1mm
• 100x400x0.1mm
• 100x480x0.1mm
• 240x300x0.1mm
• 350x430x0.1mm
• 100x200x0.2mm
• 100x400x0.2mm
• 100x200x0.125mm
• 100x240x0.125mm
• 100x240x0.5mm
• 180x240x0.5mm
• 240x300x0.5mm
• 100x480x0.5mm
• 350x430x0.5mm
• 100x254x0.125mm (4"x10"x0.125mm)
• 100x381x0.125mm (4"x15"x0.125mm)
• 100x400x0.125mm
• 100x480x0.125mm
• 150x400x0.125mm
• 180x430x0.125mm
• 89x430x0.127mm (3.5"x17"x0.005“)
• 115x430x0.127mm (4.5"x17"x0.005“)
• 89x430x0.254mm (3.5"x17"x0.010")
• 115x430x0.254mm (4.5"x17"x0.010“)
• 14"x17"x0.125mm
• W80mm x T0.03mm x 5 meters
• W80mm x T0.03mm x10 meters
• W80mm x T0.03mm x 15 meters

The X-ray NDT accessories we have:

• industrial x-ray films
• industrial film processor
• black and white densimeter
• film viewer
• dosimeter
• film cassatte
• image quality indicator
• marker ruler
• lead screen
• lead number
• lead marker box
• magnet paddle
• IQI
• test block and so on.
