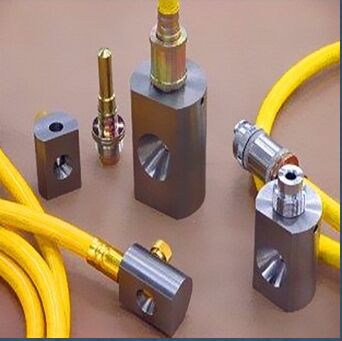

TCN799 TCN827 TCN828 TCN846 Tungsten Gamma Ray Collimator For Radiographic Testing

1 pcs
MOQ
TCN799 TCN827 TCN828 TCN846 Tungsten Gamma Ray Collimator For Radiographic Testing
Features Gallery Product Description Chat Now
Features
Specifications
Application:: Industrial Radiographic Testing NDT
Type:: Directional / Panoramic Collimator
Compatible Source:: Ir-192, Co-60
Beam Angle:: 60° / 20°×360°
Material:: Tungsten Nickel Iron Alloy
Highlight:

tungsten gamma ray collimator

,

radiographic testing collimator

,

ndt x ray equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: TCN799 TCN827 TCN828 TCN846
Payment & Shipping Terms
Packaging Details: In carton
Delivery Time: 5-8 days
Payment Terms: Western Union,T/T,PAYPAL
Supply Ability: 500 pcs
Product Description

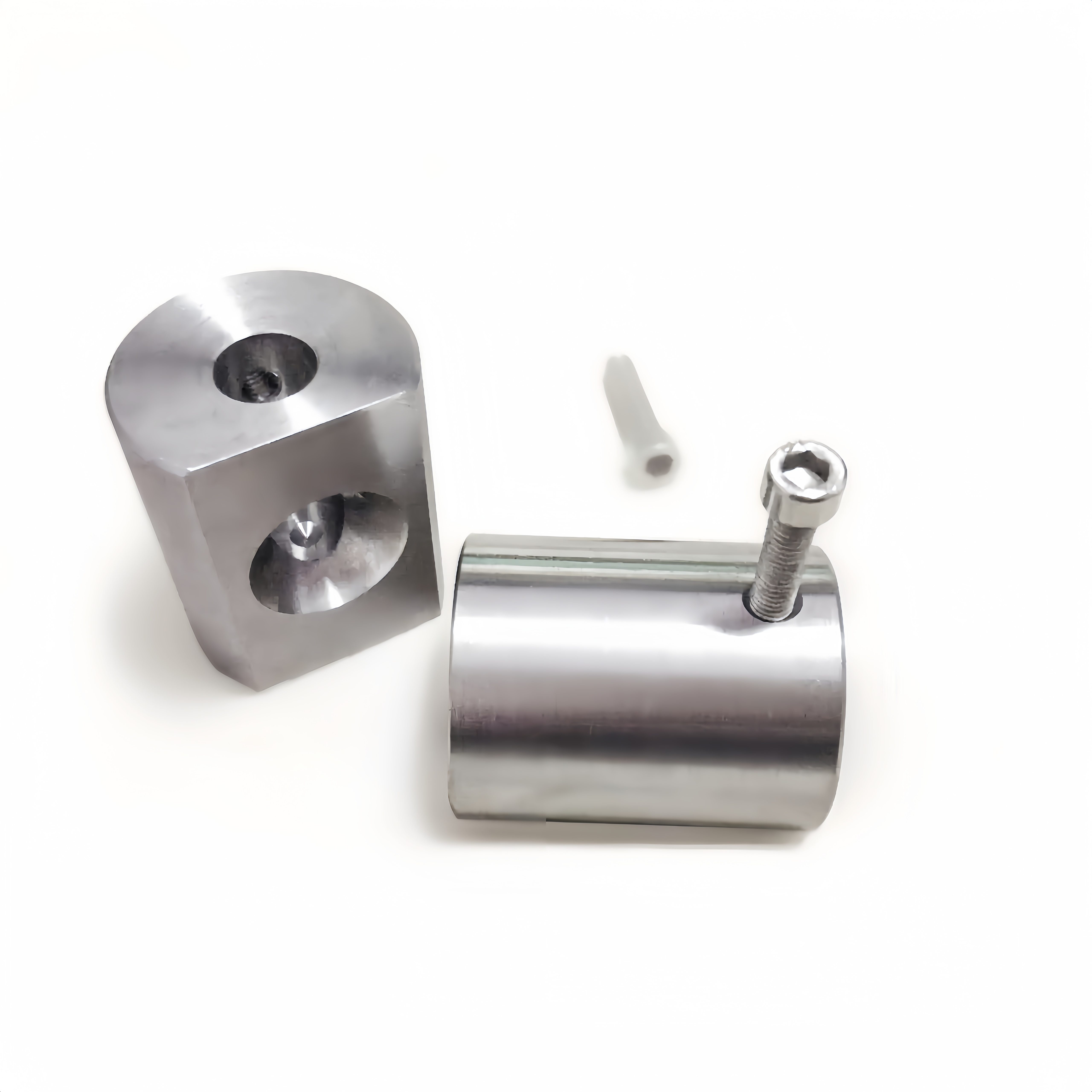

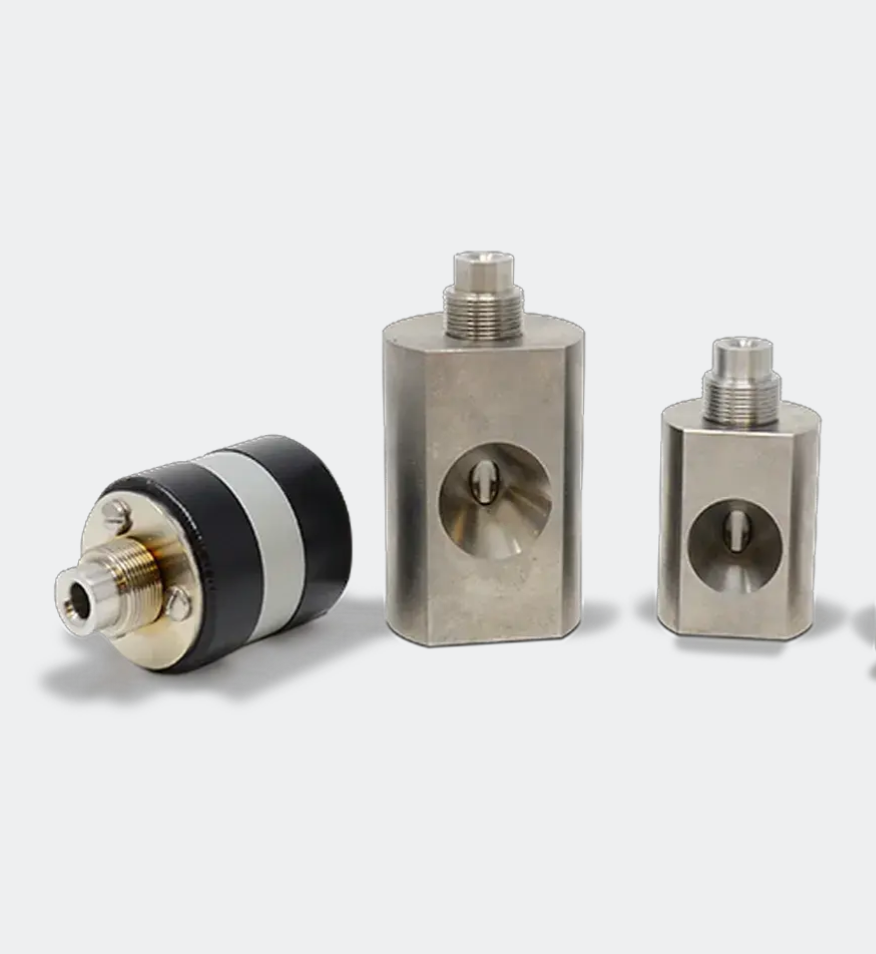

TCN799 TCN827 TCN828 TCN846 Tungsten Gamma Ray Collimators
Gamma ray collimators are essential components for radiographic testing that contain and direct radiation beams during exposure. Our comprehensive range of collimators is designed to meet diverse application requirements and testing techniques.
Collimator Specifications
Description Weight Beam Size Attenuation Half Value Layers Item No.
Tungsten 1.75 lb (0.79 kg) 60° Conical, side throw Ir-192: 0.05
Co-60: 0.46		 Ir-192: 4.30
Co-60: 1.12		 TCN799
Tungsten 4.3 lb (1.95 kg) 60° Conical, side throw Ir-192: 0.009
Co-60: 0.26		 Ir-192: 6.80
Co-60: 1.90		 TCN827
Tungsten 4.3 lb (1.95 kg) 60° Conical, side throw Ir-192: 0.003
Co-60: 0.17		 Ir-192: 8.30
Co-60: 2.50		 TCN828
Lead 3 lb (1.36 kg) 60° Conical, side throw Ir-192: 0.014
Co-60: 0.32		 Ir-192: 6.20
Co-60: 1.70		 TCN714
Large Lead Collimator 3 lb (1.36 kg) 60° Conical, side throw Ir-192: 0.014 Ir-192: 6.20 TCN717
Lead Collimator with Lab Stand & Inserts 32 lb (14.5 kg) 20°×360° panoramic
60° directional		 Ir-192: 0.001
Co-60: 0.10		 Ir-192: 10.0
Co-60: 3.30		 TCN527
527 Collimator Only 32 lb (14.5 kg) 20°×360° panoramic
60° directional		 52710
360° Panoramic Insert 20°×360° panoramic 52704
60° Directional Insert 60° directional 52711
Key Features
  • Precision beam containment and direction for radiographic testing
  • Available in tungsten and lead construction for optimal attenuation
  • Multiple beam configurations including conical, panoramic, and directional
  • Compatible with Ir-192 and Co-60 radiation sources
  • Modular design with interchangeable inserts for flexible applications
