XXG-1605 160kv Industrial Radiographic Testing Machine for Pipeline Weld NDT Inspection

1PCS
MOQ
XXG-1605 160kv Industrial Radiographic Testing Machine for Pipeline Weld NDT Inspection
Features Gallery Product Description Chat Now
Features
Specifications
Max Tube Voltage: 80 ~ 160kv
Max. Penetration: 19mm
Focus Size (mm): 0.8 × 0.8
Input Power(kw）: 1.5
Tube: Ceramic Tube
Operating Temperature: -30°C ~ +60°C
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE, ISO
Model Number: XXG-1605
Payment & Shipping Terms
Packaging Details: in carton
Delivery Time: within 5 days
Payment Terms: T/T,Western Union,PayPal
Supply Ability: 500pcs per month
Product Description

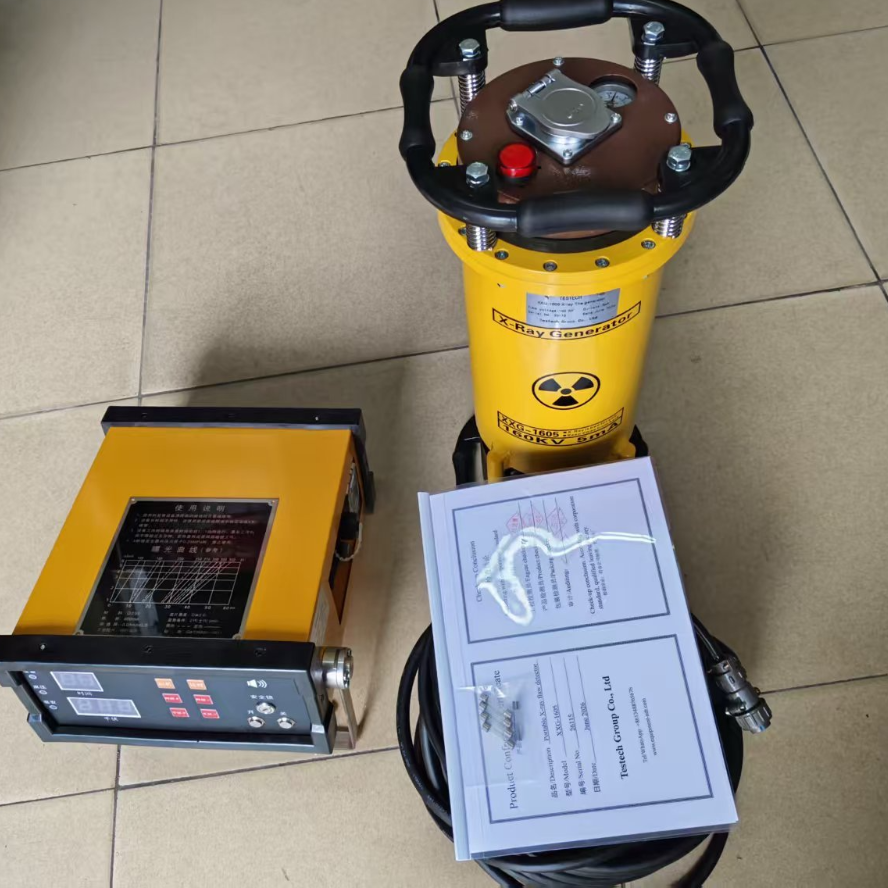

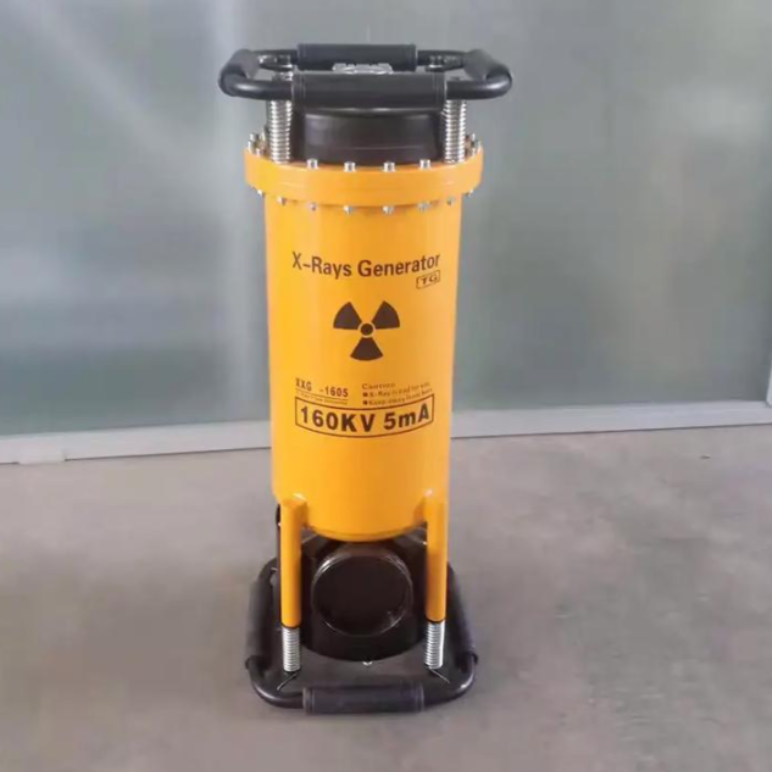

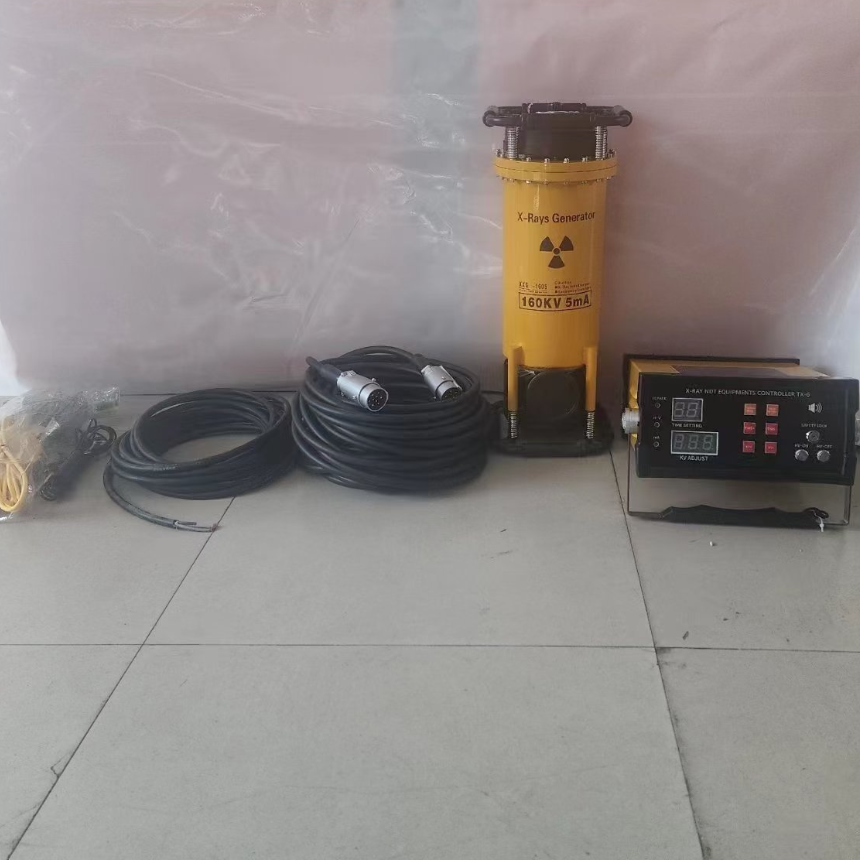

XXG series Directional Portable X-ray Detector (with Ceramic X-ray Tube)

Technical Data

Place of Origin China
Brand Name XinLi
Model Number XXG-1605
Power Electronic
Product name NDT equipment x ray machine XXG-1605
Function universal testing machine
Max. penetration 19mm
power supply AC220V±10%,50HZ
Radiation angle 40+5°
focal size 0.8x0.8mm
material ceramic tube
dimension(mm) 225x225x550mm
weight 14.5kg
Warranty 1 Year
Model Output Voltage
(kV)		 Input Power
(kw)		 Focus Size
(mm)		 Beam Angle Q235 Max.
Penetration
(mm)		 Generator Weight / Dimension
XXG-1605 80 ~ 160 1.5 0.8 × 0.8 40+5° 19 14.5 kg / 225×550 mm
XXG-2005 100 ~ 200 2.0 2.0 × 2.0 40+5° 30 18.0 kg / 285×615 mm
XXG-2505 150 ~ 250 2.5 2.0 × 2.0 40+5° 40 30.5 kg / 320×640 mm
XXG-3005 170 ~ 300 3.0 2.5 × 2.5 40+5° 50 36.5 kg / 345×670 mm
XXG-3505 180 ~ 350 3.5 2.5 × 2.5 40+5° 60 38.0 kg / 345×670 mm
