Digital Optical Profile Projector CPJ-3015 Vertical Dimension Measurement 0.5m Resolution

1 Piece
MOQ
Bulk discount
Price
Digital Optical Profile Projector CPJ-3015 Vertical Dimension Measurement 0.5m Resolution
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Model Number: CPJ-3015
Product Name: TESTECH Digital Profile Projector Optical Measure Machine
Key Words: TESTECH Measuring Profile Projector
Indication Error (μm)::: 2.5+L/100
Resolution:: 0.5μm
Accuracy:: Ex,y ≤ (3.0+L/200)um
Optional Lens::: 10X,20X,50X ,100X
Meterial:: Steel Granite
Dimension:: 770*550*1100mm
Projector Screen::: 300mm
X.Y Axis Travel (mm) ::: 150*50
Highlight:

CPJ-3015 vertical dimension measurement

,

0.5m vertical dimension measurement

,

Digital optical profile projector
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: TCPJ-3015
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

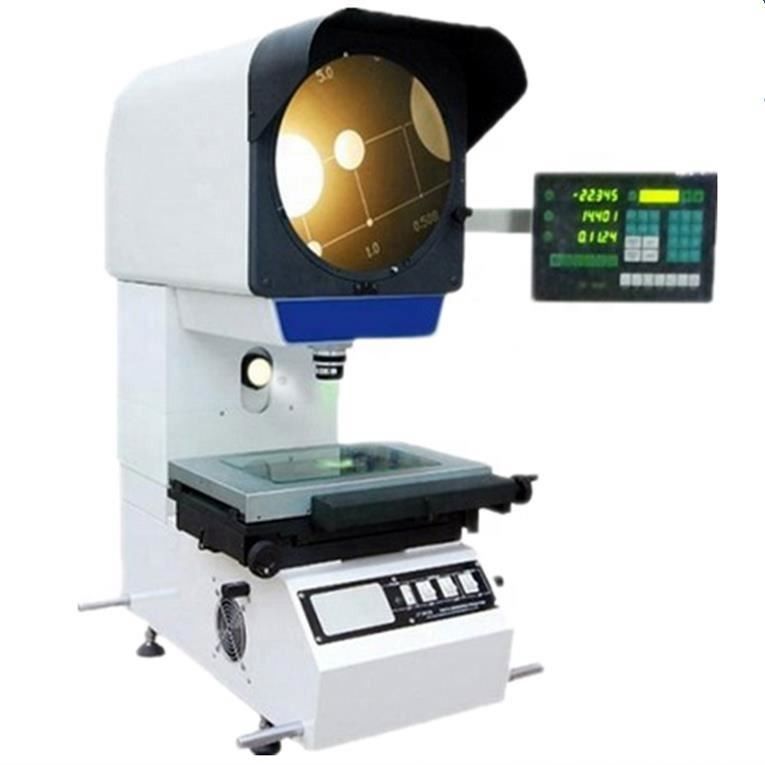

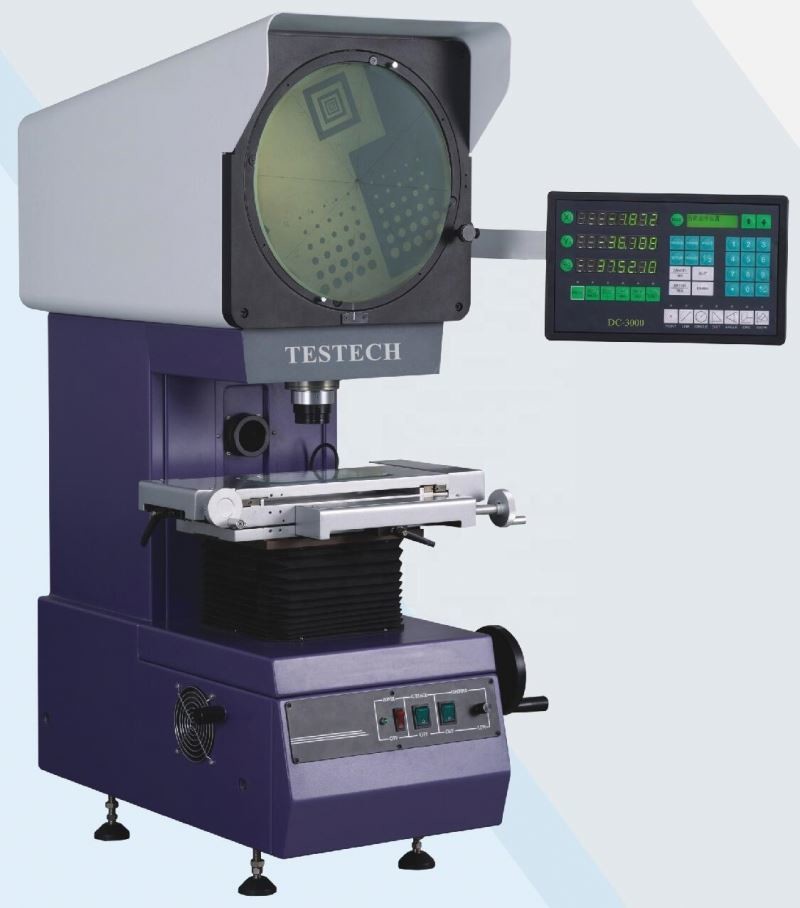

CPJ-3015 Digital Profile Projector High Precision Workpieces Measurement Machine Vertical Profile Projector
Usages:
  • Profile projector is mainly used for the measurement of the mechanical parts of the length,
  • angle, contour and surface shape.
  • It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and measurement-inspecting department.
  • This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
Model CPJ-3015 Specifications
Model CPJ-3015
Table The metal table’s size(mm) 340X152
The glass table’s size(mm) 196X96
X-axis travel(mm) 150
Y-axis travel(mm) 50
Z-axis travel(mm) 90 for focus
Measuring accuracy (3+L/50)µm
Resolution(X-axis, Y-axis) 0.001 mm
Screen size (mm): Ø 312 Used range>Ø 300(with the meter line)
Screen rotary range: 0°~360°
Rotary angle Resolution 1´ or 0.01°
Lens (Choose one) Magnification 10X option 20X option 50X option 100X option
Object view Ø30 Ø15 Ø6 Ø3
Working distance 77.7mm 44.3mm 38.4 25.3
Max.　work-piece height 80mm 80mm 80mm 80mm
Data processing system DC-3000 multi-function data processing system ,appearing in English, can be used to gather the data and measure the point ,line, circle, angle and distance
Cold By three fans
Illumination The illumination of transmission and reflection: 24V/150W-halogen lamp.
Power 110V/220V(AC), 50/60HZ, Total power=400W
Dimensions 780*780*1100mm
Weight 180kg
Warranty:
  • Warranty Period: Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment. During this period machine failure caused by our side is maintained with free of charge.
  • Extra warranty period: We will take phone and regular visit to users with a combinative after-sale advisory service.
  • We provide life warranty services of machine for users with cost.
  • Our company has spare parts which can be provided for the users with cost.
  • We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades, retrofit.
