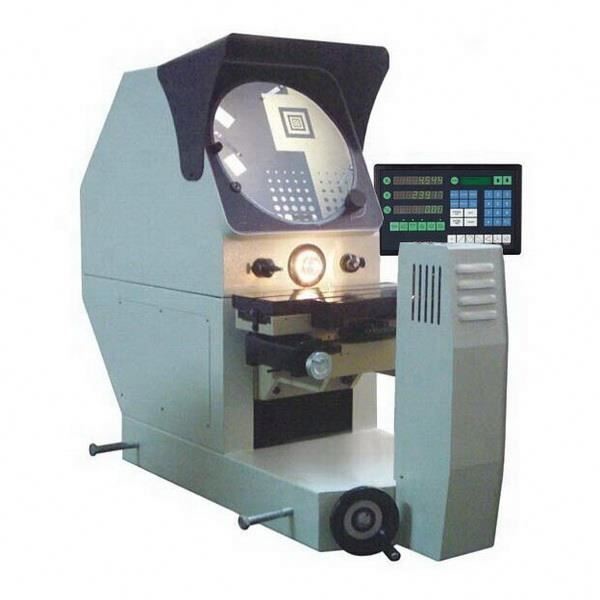

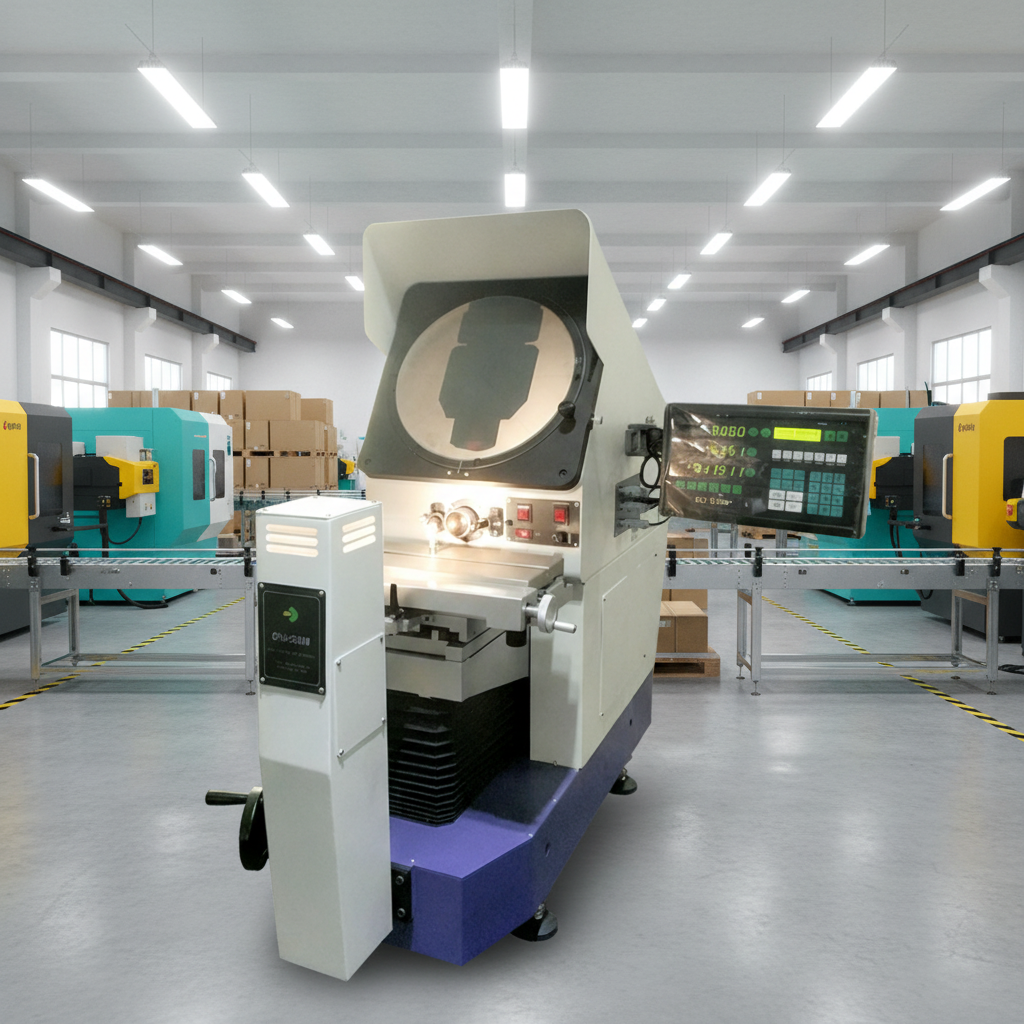

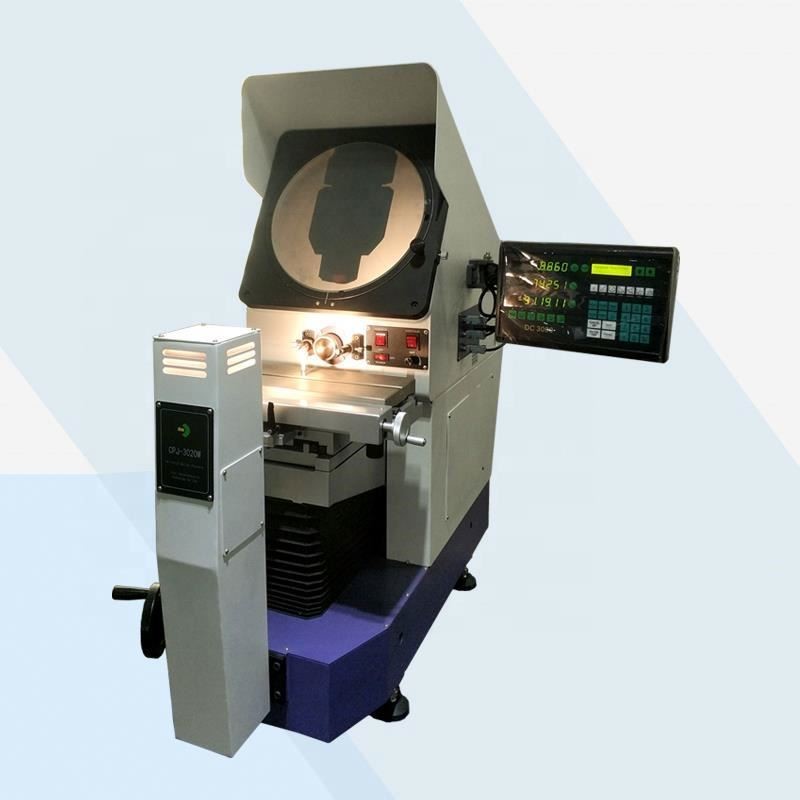

| Table |
Metal Table Size (mm) |
340 x 152 |
404 x 228 |
450 x 280 |
| |
Glass Table Size (mm) |
196 x 96 |
260 x 160 |
306 x 196 |
| |
X-axis Stroke (mm) |
150 |
200 |
250 |
| |
Y-axis Stroke (mm) |
50 |
100 |
150 |
| |
Z-axis Stroke (mm) |
90 for focus |
90 for focus |
90 for focus |
| Measuring Accuracy* |
— |
Ex, y ≤ (3.0+L/200)μm |
Ex, y ≤ (3.0+L/200)μm |
Ex, y ≤ (3.0+L/200)μm |
| Resolution(X,Y) |
— |
0.5 μm |
0.5 μm |
0.5 μm |
| Projector Screen |
Screen Size (mm) |
Ø 312 Used range>Ø 300(with the meter line) |
Ø 312 Used range>Ø 300(with the meter line) |
Ø 312 Used range>Ø 300(with the meter line) |
| |
Screen Rotary Range |
0°~360° |
0°~360° |
0°~360° |
| |
Rotary Angle Resolution |
1′ or 0.01° |
1′ or 0.01° |
1′ or 0.01° |
| Lens |
Magnification |
10X (standard), 20X (option), 50X (option), 100X (option) |
10X (standard), 20X (option), 50X (option), 100X (option) |
10X (standard), 20X (option), 50X (option), 100X (option) |
| |
Object View |
Ø30 (10X), Ø15 (20X), Ø6 (50X), Ø3 (100X) |
Ø30 (10X), Ø15 (20X), Ø6 (50X), Ø3 (100X) |
Ø30 (10X), Ø15 (20X), Ø6 (50X), Ø3 (100X) |
| |
Working Distance |
77.7mm (10X), 44.3mm (20X), 38.4mm (50X), 25.3mm (100X) |
77.7mm (10X), 44.3mm (20X), 38.4mm (50X), 25.3mm (100X) |
77.7mm (10X), 44.3mm (20X), 38.4mm (50X), 25.3mm (100X) |
| |
Max. work piece height |
80mm |
80mm |
80mm |
| DRO |
— |
DC-3000 Digital Readout, appearing in English, can be used to gather dimension data and measure point, line, circle, angle and distance, etc. |
DC-3000 Digital Readout, appearing in English, can be used to gather dimension data and measure point, line, circle, angle and distance, etc. |
DC-3000 Digital Readout, appearing in English, can be used to gather dimension data and measure point, line, circle, angle and distance, etc. |
| Cooling |
— |
By three fans |
By three fans |
By three fans |
| Illumination |
— |
24V/150W halogen transmitted illumination, 21V/150W halogen reflecting illumination |
24V/150W halogen transmitted illumination, 21V/150W halogen reflecting illumination |
24V/150W halogen transmitted illumination, 21V/150W halogen reflecting illumination |
| Power |
— |
110V/220V(AC);50/60HZ; Total Power Consumption 400W |
110V/220V(AC);50/60HZ; Total Power Consumption 400W |
110V/220V(AC);50/60HZ; Total Power Consumption 400W |
| Dimension (LWH, mm) |
— |
7705501100 |
7807801100 |
8107801120 |
| Weight (kg) |
— |
180 |
190 |
200 |
| Option |
— |
Mini-printer, Edge detector, M2D software and so on, please refer to 'Appendix' for details. |
Mini-printer, Edge detector, M2D software and so on, please refer to 'Appendix' for details. |
Mini-printer, Edge detector, M2D software and so on, please refer to 'Appendix' for details. |
