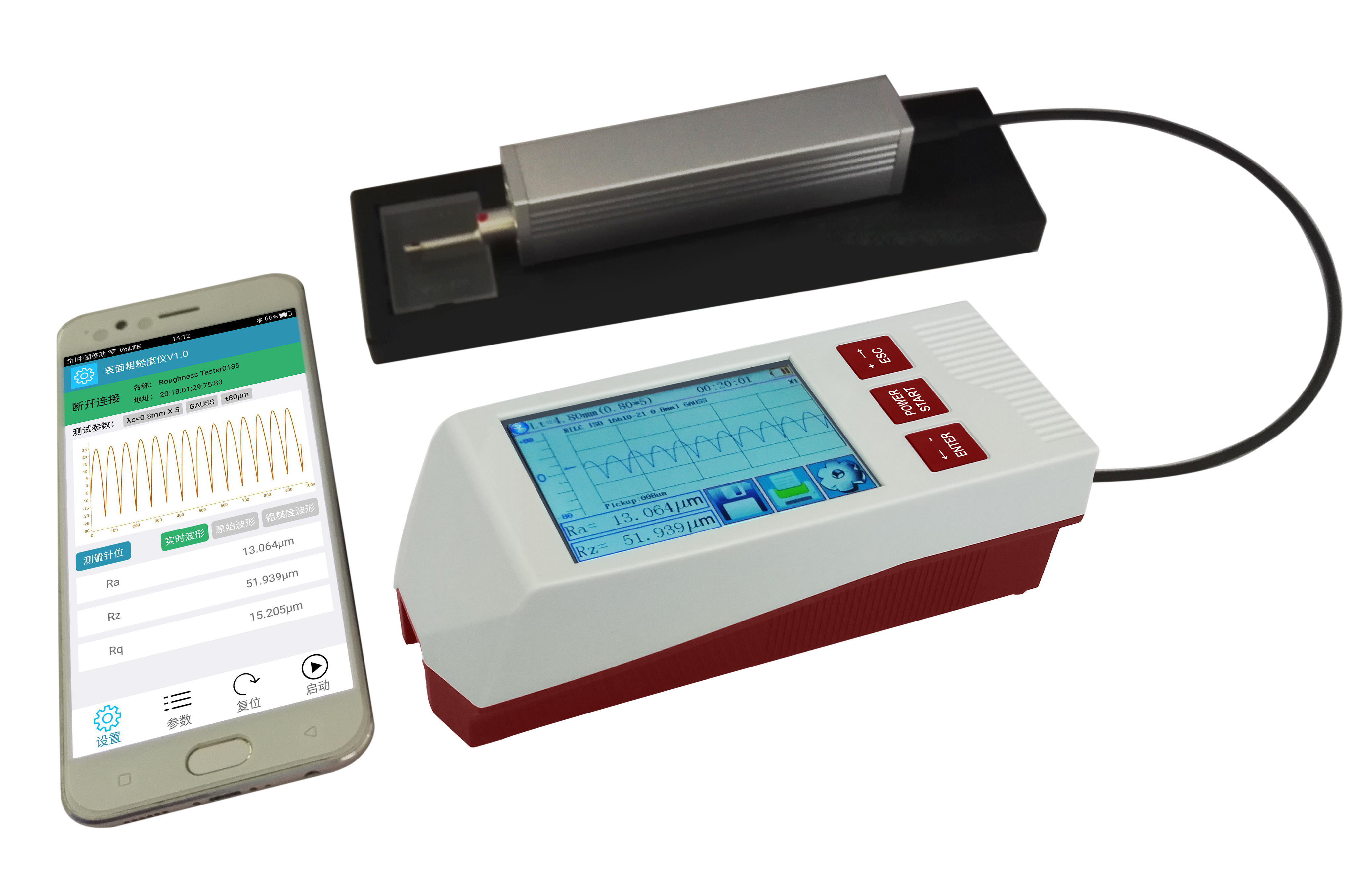

DIN ANSI JIS2001 Touch Screen Surface Roughness Tester Profilometer

Roughness instrument is also called surface roughness instrument, surface finish instrument, surface roughness detector, roughness measuring instrument, roughness meter, roughness tester and other names. It has the characteristics of high measurement accuracy, wide measurement range, simple operation, easy to carry, stable work and so on, can be widely used in all kinds of metal and non-metal processing surface detection, the instrument is a sensor host integration of pocket instrument, with handheld characteristics, more suitable in the production site use. The appearance design, strong and durable, anti-electromagnetic interference ability is remarkable, in line with the new trend of today's design.

First, machine processing manufacturing industry, mainly metal processing manufacturing. Roughness meter was originally produced for testing the surface roughness of machined parts. In particular, the stylus roughness measuring instrument is more suitable for the detection of hard metal surface. Such as: auto parts processing manufacturing, machinery parts processing manufacturing and so on. As long as the surface quality of the workpiece is involved in these processing and manufacturing industries, it is essential for the detection and application of the roughness meter.

Second, non-metal processing manufacturing industry, with the progress and development of science and technology, more and more new materials are applied to the processing technology, such as ceramics, plastics, polyethylene, and so on. Now some bearings are processed with special ceramic materials, and pumps and valves are processed with polyethylene materials. These materials are hard and can be used in some applications as a substitute for metal materials to make workpieces, and their surface roughness needs to be measured during production and processing.

Three, as the roughness instrument technology, and continuously strengthen and improve the function, as well as the further promotion and application, was found to be more and more industry demand roughness detection, in addition to the mechanical processing and manufacturing, electric power, communications, electronics, such as switches on the coupling, integrated circuits, semiconductor, etc in the process of production and processing of roughness is also need to assess, Even stationery, tableware and human teeth used in daily life should be tested for surface roughness

• Integrated structure of main display unit, driver unit and sensor. Mechatronics design, compact size, light weight and easy to operate.
• Supports Bluetooth printing and wireless operation via mobile APP.
• Measures multiple parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rc, Ry, Rmax, Rmr, RPc, Rk, Rpk, Rvk, Mr1, Mr2.
• Displays calculation results, primary profile, evaluated roughness profile and bearing area curve graphically.
• Large measuring range up to 320μm.
• Equipped with a 3.5-inch color graphic LCD (480*320 dots) with adjustable backlight, wide viewing angle, high readability and intuitive user interface.
• Adopts DSP chip for control and data processing, featuring high speed and low power consumption.
• Full-information display with intuitive graphical presentation of all parameters.
• Conforms to standards: ISO-1997, DIN, ANSI, JIS2001.
• Four profile filters: Gauss, RC, PC-RC, D-P.
• Built-in 3200mAh rechargeable lithium-ion battery with protective circuit, large capacity and no memory effect.
• Graphical display of remaining battery level.
• Animated charging and full-charge indicators for clear status recognition.
• Continuous working time exceeds 50 hours on a full charge.
• Large-capacity data storage: saves up to 100 sets of raw data and measured profiles.
• Real-time clock for convenient data recording and archiving.
• Power-saving functions including automatic sleep and auto power-off.
• Reliable hardware and software design to prevent motor stalling.
• Provides multiple prompts and instructions: measurement results, menu tips and error messages.
• Driver unit with metal housing, rugged, compact, portable and highly reliable.
• Connectable to a computer and printer.
• Supports printing of all parameters or user-selected parameters.
• Optional accessories: curved surface sensor, hole sensor, micro-hole sensor, measuring stand, sensor sheath, extension rod, printer and analysis software.

• Sensor for curve/concave/groove surface
• Hole sensor
• Measuring platform
• Extension rod
• Calibration plate
