Name: TR-300 High Precision Integrated Tester Surface Roughness Waviness Measurement
Brand: Testech Group Co., Ltd
SKU: TR-300
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Years

Product: Integrated Roughness Waviness Meter

Model Number: TR-300

Product Name: Portable/Large Range/Integrated Roughness Waviness Tester TR300

Accurate: 0.001μm

Measure Range: 320µm

Compliant Standards: ISO4287, ANSI B46.1, DIN4768, JIS B601

Tolerance: ≤±(5nm+0.1A)

Residual Profile:: ≤ 0.010μm

Power Supply: Built-in 3200mAh Lithium Ion Batter

Highlight:

TR-300 Integrated Tester

High Precision Integrated Tester

TR-300 roughness testing machine

Basic Infomation

Place of Origin: CHINA

Brand Name: TESTECH

Certification: CE; ISO

Model Number: TR-300

Payment & Shipping Terms

Packaging Details: In Carton

Delivery Time: 3-7 days

Payment Terms: T/T, Credit Card, Paypal, Western Union

Supply Ability: 5000pcs/month

Gallery

TR-300 High Precision Integrated Tester Surface Roughness Waviness Measurement

Product Description

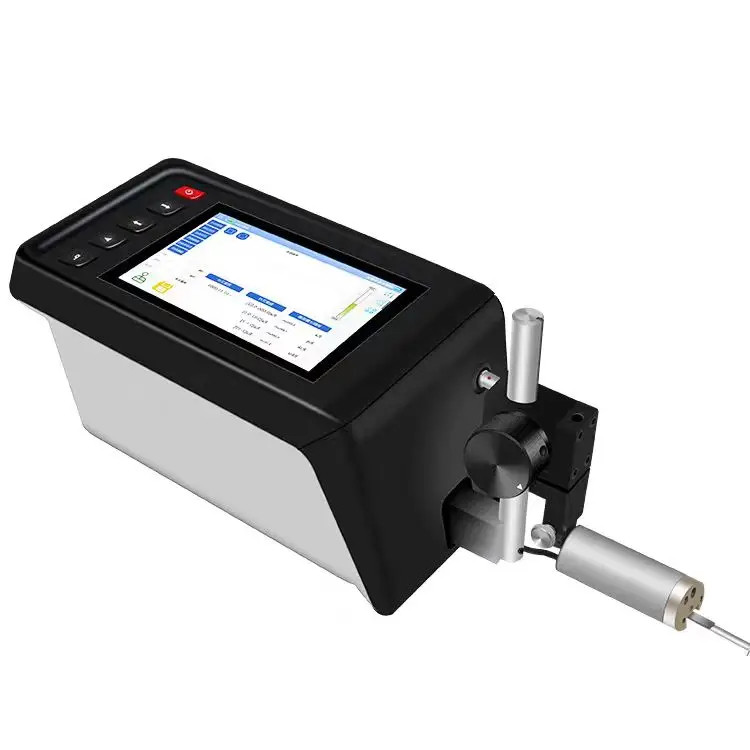

Portable/Large range/Integrated Roughness Waviness Tester TR300

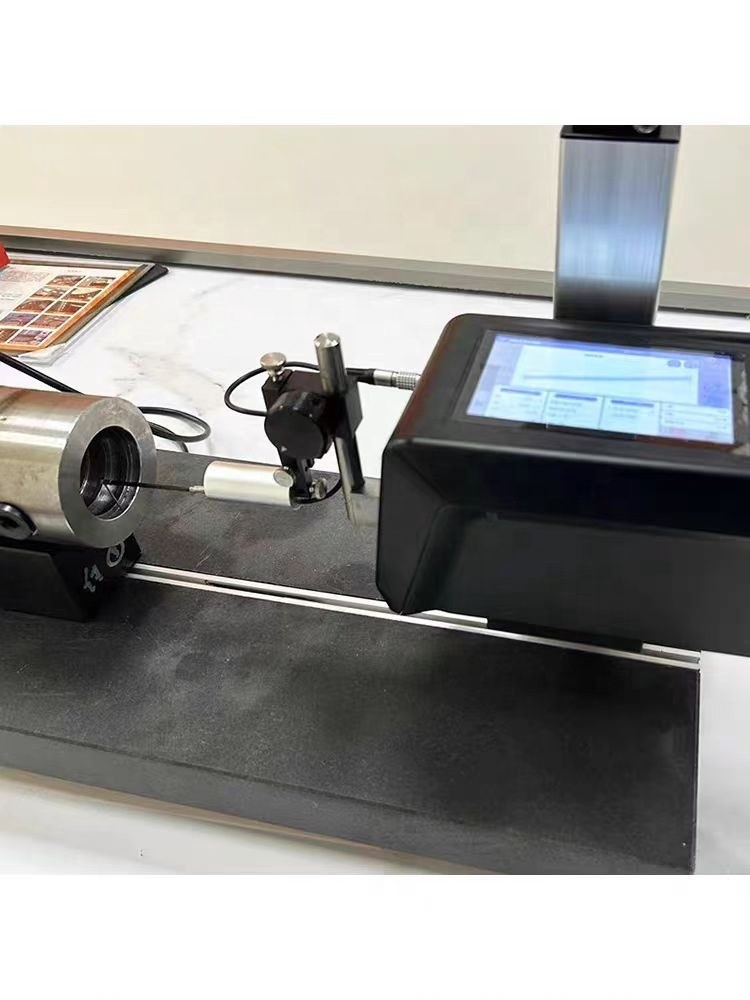

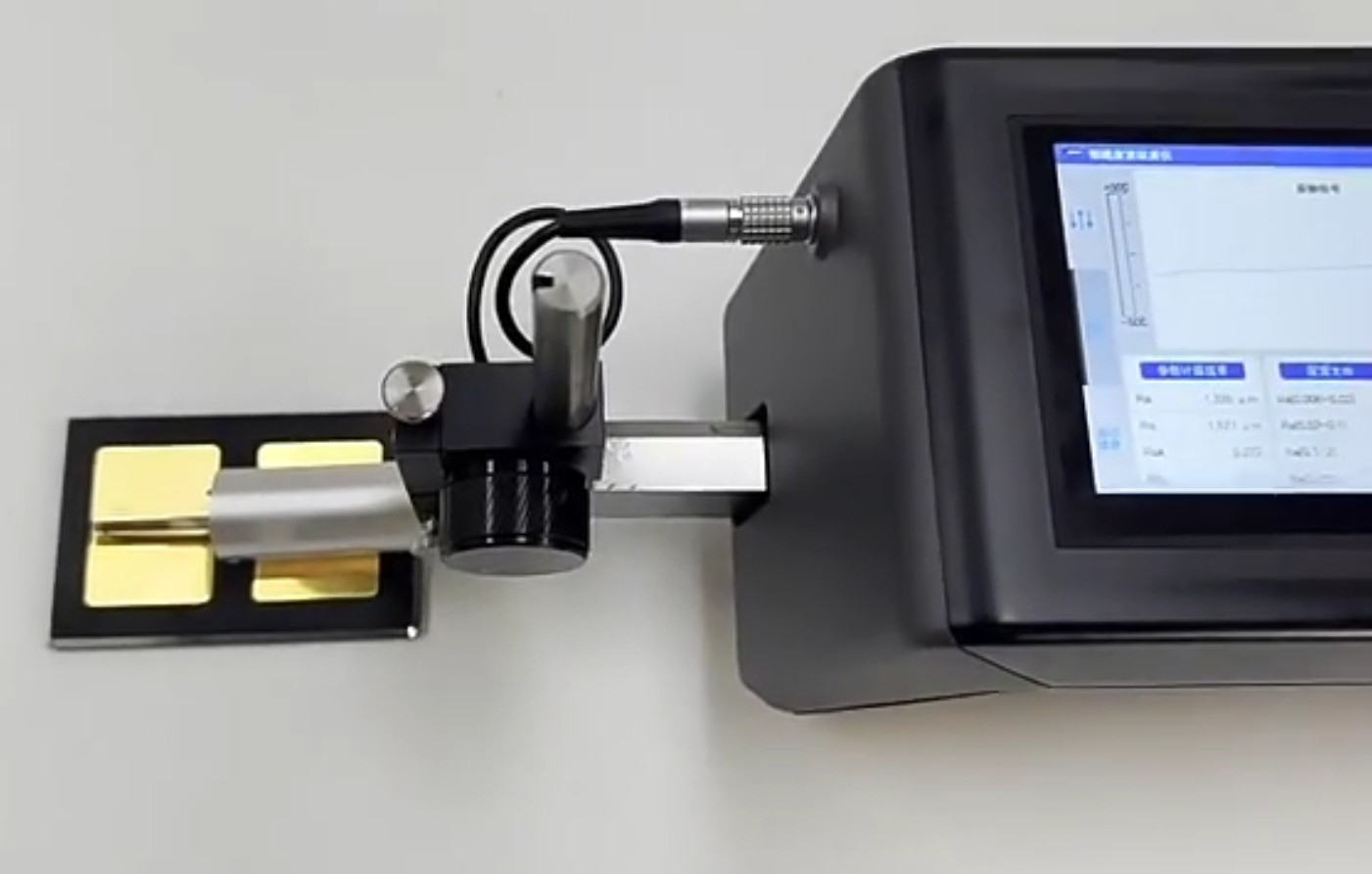

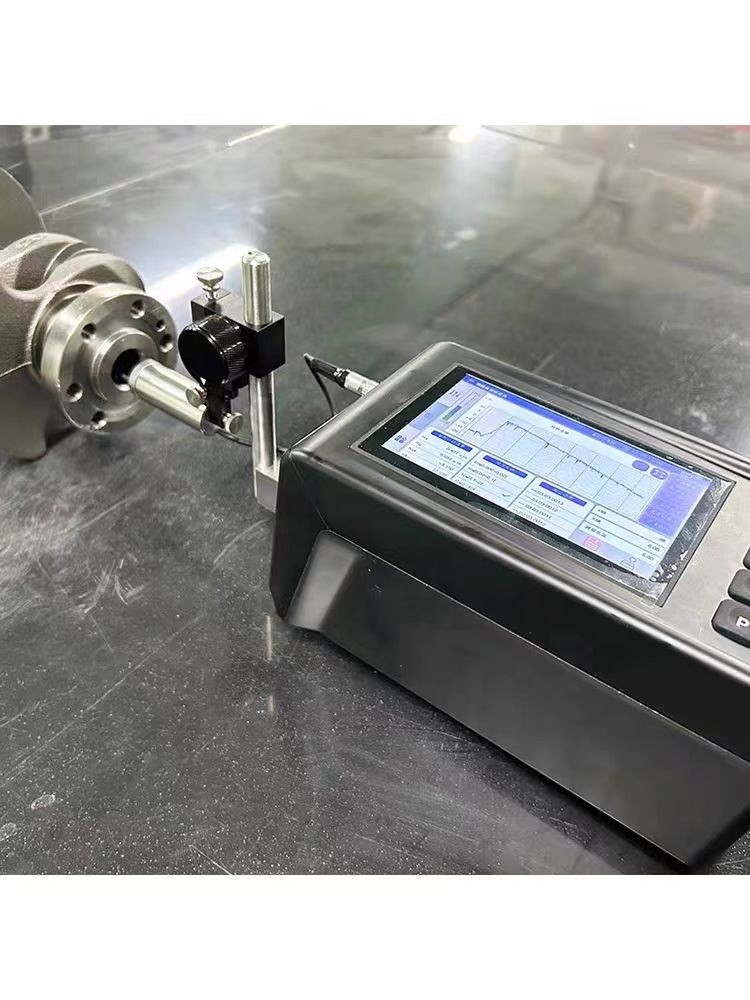

TR300, an integrated roughness waviness meter, which can evaluate roughness profile, waviness profile, original profile, support rate curve and graph, 5 measurement types. Friendly software interface and simple operation. There is no need for complicated settings when measuring different workpieces. You only need to select the configuration and then measure it.

Measuring rang	The Z axis (vertical)	320µm (-160µm~160µm) , 12600μin (-6300μin~+6300μin)
	The X axis (Transverse)	17.5mm(0.69 inch)
Resolution	the Z axis (vertical)	0.002µm/±20µm, 0.004µm/±40µm 0.008µm/±80µm, 0.02µm/±160µm
Parameter		Ra Rz Rq Rt Rp Rv R3z R3y Rz(JIS) Ry Rs Rsm Rsk Rku Rmax Rc Rpc Rk Rpk Rvk Mr1 Mr2
standards		ISO4287,ANSI b46.1,DIN4768,JISb601
Assessed Graphic		Rmr curve, Roughness curve, Primary Profile
Filter		RC,PC-RC,Gauss,D-P
The sampling length(lr)		0.25, 0.8, 2.5mm
Assessment length(ln)		Ln= lr*n n=1~5
Sensor	Measuring principle	Differential Inductance
	Stylus tip	Diamond, 90°/ cone angle/5µmR
	Force	Measuring force<4mN, Skid force<400mN
	Probe head	hard alloy, skid radius of curvature: 40mm
	Measuring speed	lr=0.25, Vt=0.135mm/s lr=0.8, Vt=0. 5mm/s
		lr=2. 5, Vt=1mm/s Return Vt=1mm/s
Accurate to		0.001µm
Tolerance		≤±(5nm+0.1A) A=Ra standard value of precise specimen
Residual Profile		≤ 0.010µm
Repeatability		≤3%
Power supply		Built-in Lithium ion battery 3200mAh, Charger :DC5V

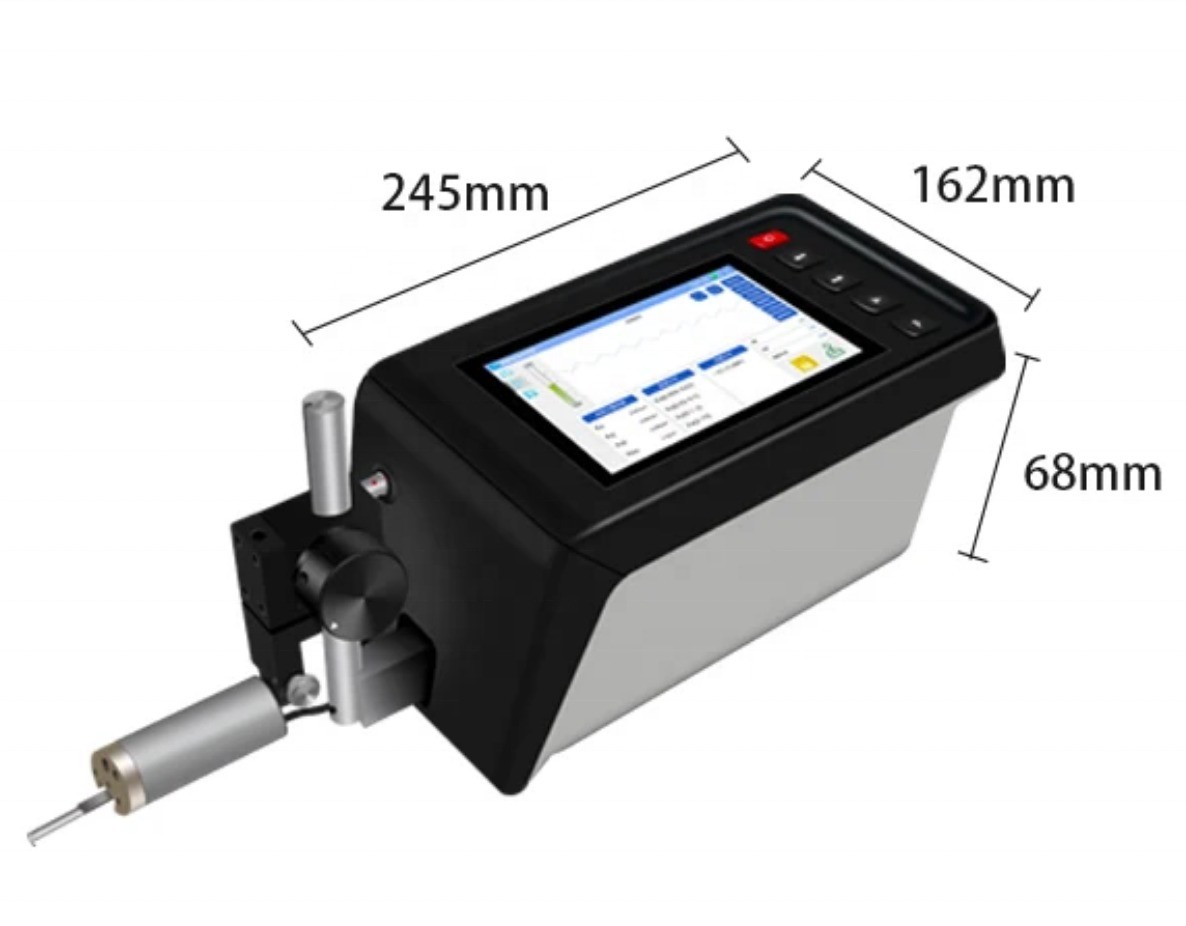

Outline dimension		Main unit: 1585552mm drive unit: 2327115mm
Weight(main unit)		Around 380g
Zoom of height adapter		40mm
working Environment		Temperature: - 20℃ ~ 40℃ Humidity: < 90% RH
Store and Transportation		Temperature: - 40℃ ~ 60℃ Humidity: < 90% RH
Optional accessory		Magnetic Base, height gauge adapter, curved sensor, small hole sensor, deep groove sensor, pinhole sensor, Extending Rod, Right Angle Rod, mini printer, 200mm platform, 300mm marble platform, software, mobile APP
