Name: TR-110 Surface Roughness Tester Ra Rq Rz Rt Multi Parameter Measurement
Brand: Testech Group Co., Ltd
SKU: TR-110
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 1 Years

Customized Support: OEM

Type: NDT Testing

Model Number: TR110

Product Name: Surface Roughness Test Machine

Key Words: Roughness Measurment

Measurement Parameters:: Ra, Rz, Rq, Rt

Measurement Range:: Ra: 0.05~10.0 Rz: 0.1~50

Evaluation Length (mm):: 1.25, 4.0

Sampling Length (mm):: 0.25, 0.80, 2.50

Indication Variability:: <6%

Battery:: 3.7 V Lithium Ion Batteries

Stroke Length:: 6mm

Weight:: 200g

Highlight:

TR-110 Surface Roughness Tester

Ra Surface Roughness Tester

Multi Parameter surface roughness instrument

Basic Infomation

Place of Origin: CHINA

Brand Name: TESTECH

Certification: CE; ISO

Model Number: TR-110

Payment & Shipping Terms

Packaging Details: In Carton

Delivery Time: 3-7 days

Payment Terms: T/T, Credit Card, Paypal, Western Union

Supply Ability: 5000pcs/month

Gallery

TR-110 Surface Roughness Tester Ra Rq Rz Rt Multi Parameter Measurement

Product Description

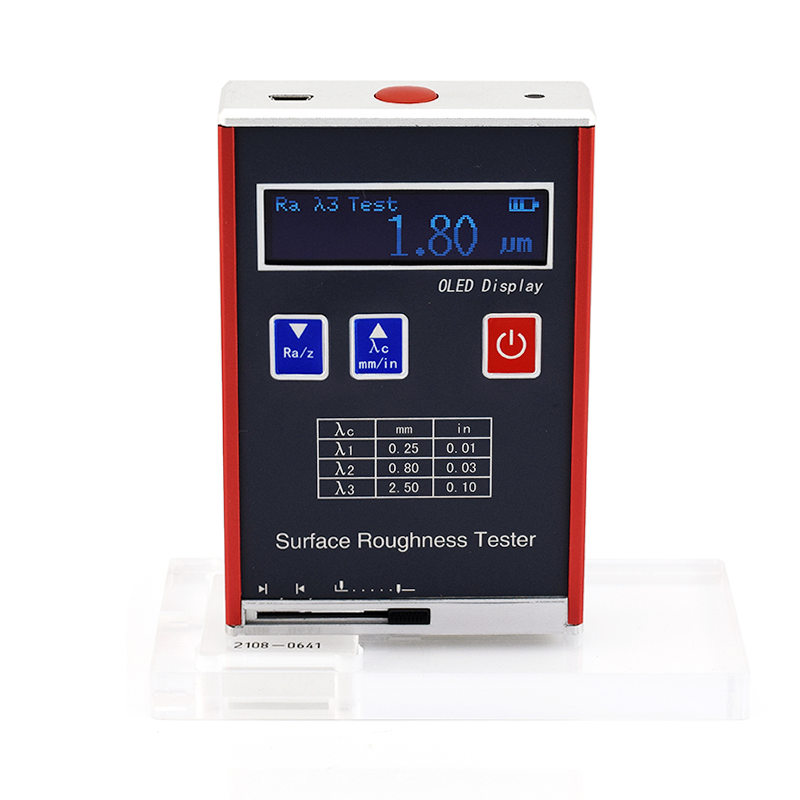

TR-110 Surface Roughness Tester - Ra, Rq, Rz, Rt Measurement Capabilities

TECHNICAL DATA

4 Testing Parameters	Ra, Rz, Rq, Rt;
Measuring Range	Ra, Rq: 0.05~15.0μm Rz,Rt: 0.1~50.0μm
Sample Length	0.25, 0.80, 2.50mm
Evaluation Length	1.25, 4.0, 5.0mm
Stroke Length	6mm
Indication Accuracy	0.01μm
Indication Error	≤ ±15% of A; A: Ra of calibration test block
Variability	<6%
Stylus Static Force:	≤ 0.016N
Force Measuring Rate of Change	≤ 800N/m
Power	Built in lithium ion battery: 3.7v, 850mAh
Relative Humidity	<90%
Working Temperature	-20°C~40°C
Size	106mmx70mmx24mm
Weight of Host	200g

Feature

Ra, Rz, Rq, Rt 4 testing parameters.
Large measuring range suitable for most materials, both metal and non-metallic surface;
Using high-speed DSP processor for data processing and calculation, quick measurement and computation speed;
Shell used to pull aluminum mold design, durable, anti-electromagnetic interference ability significantly;
Liquid crystal display wide temperature using OLED display, high brightness, suitable for various occasions;
Using a dedicated charger or computer USB port for charging, can work during charging, quick and convenient;
Real-time monitoring of lithium battery power and display, remind users to charge;
Automatic shutdown function and low power design of software and hardware of the instrument with long working hours, suitable for field use;
suitable for more applications, testing for metal and non-metal workpiece

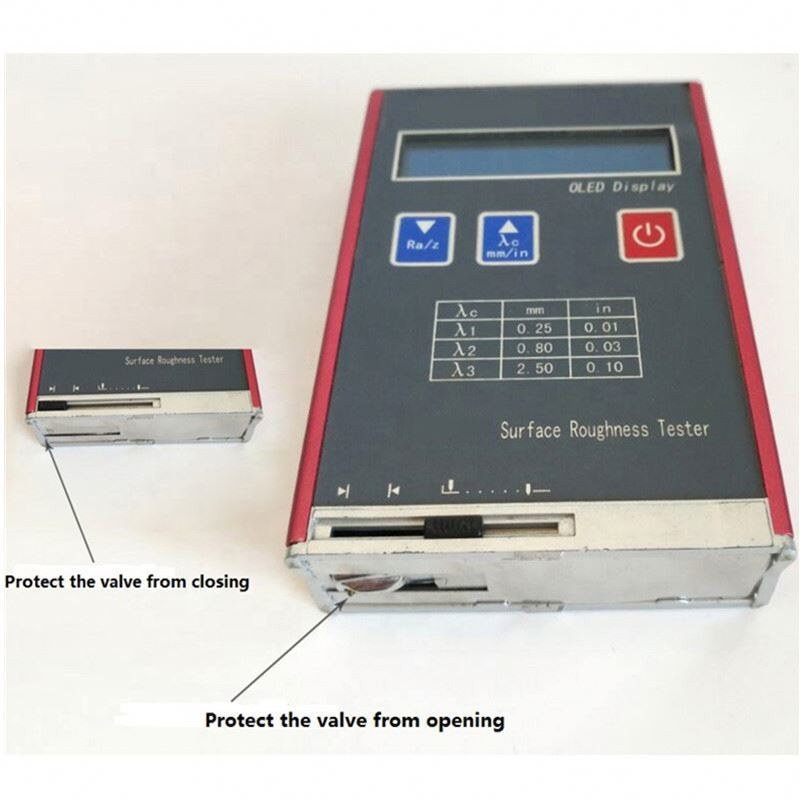

The probe assembly are built in the main unit, directly measure flat surface, in grooves of 80*30mm or more, can also measure the shaft that diameter more than 22mm.

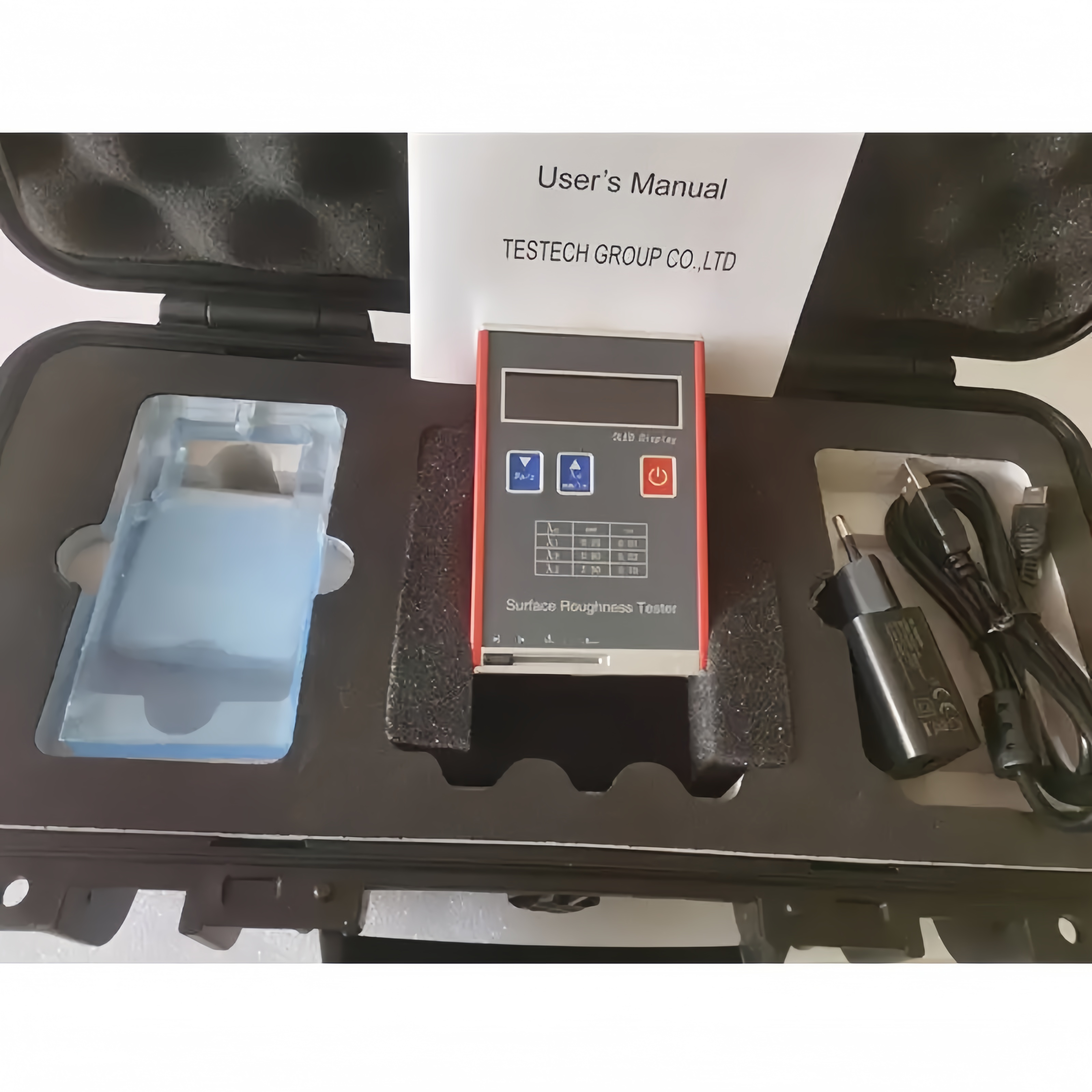

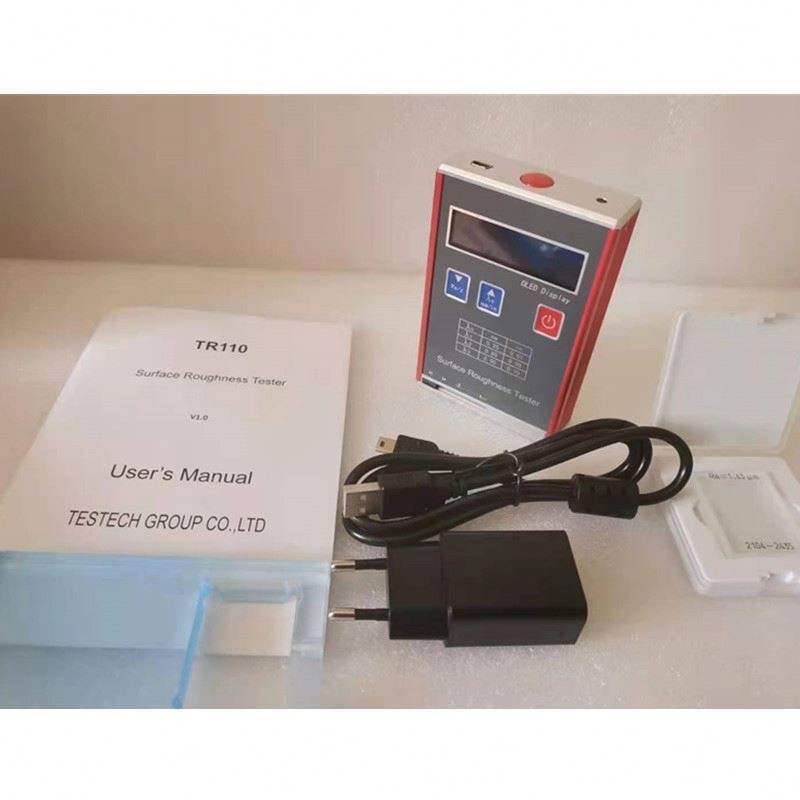

Standard Packing List

ITEM	QTY
Host	1 PC
Standard Calibration Block	1 PC
Bracket for Calibration Block	1 PC
Power Charger	1 PC
Charging Cable	1 PC
User Manual	1 PC
Instrument Case	1 PC
Warranty	2 Years

Tag:

Contact Person :	Linda
Tel :	+86 13488765676
