Ra Rz Rq Rt Multi Parameter Surface Roughness Tester TR220 High Precision

TR220 Surface Roughness Test Machine - High Accuracy for Ra/Rz/Rq/Rt | Factory Supply

Main feature:

1. *Electromechanical integration design, small volume, light weight, easy to use;
2. *Using DSP chip to control and data processing, high speed, low power consumption;
3. *128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
4. *Intuitive and rich display information, can display all the parameters and graphics;
5. *Compatible with ISO, DIN, ANSI, JIS national standards;
6. *Residual quantity icon, prompting the user to charge;
7. *Continuous working time: more than 20 hours.
8. *Real-time clock settings and display, convenient data recording and storage.
9. *With automatic dormancy, automatic shutdown and power saving function
10. *Reliable control motor to go dead circuit and software design
11. *Measurement information display, menu prompt information, false information and switch machine and other tips that information;
12. *Can be connected to a computer and printer;
13. *Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
14. *Plastic shell, inspired by “TRANSFORMERS" stylish design, portable, high reliability.
15. *Optional bluetooth function.
16. *High price performance.

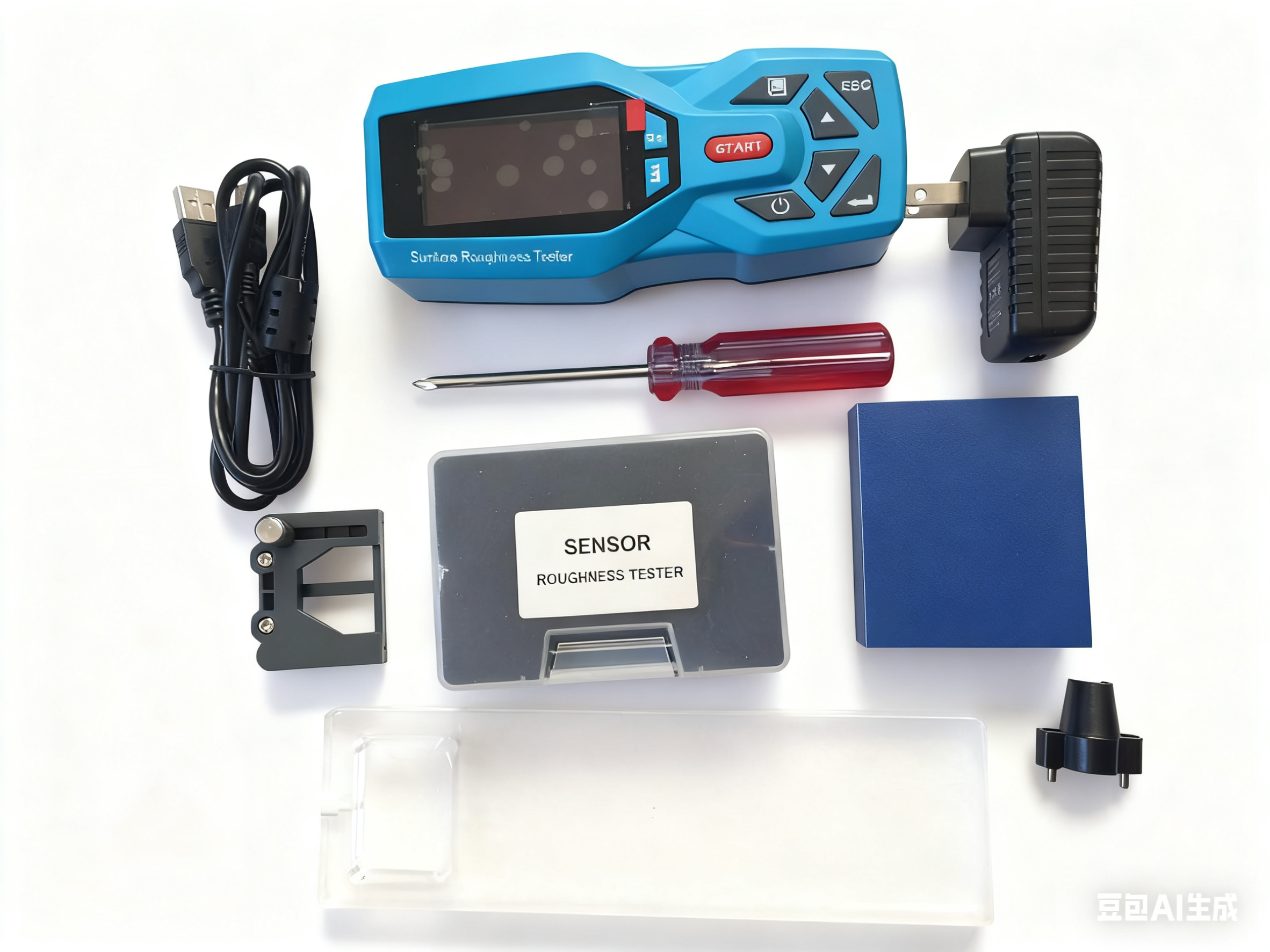

Standard configuration:

Optional configuration

	KS55 -Extension rod. Used to extend length of sensor when testing deep hole (55mm)
	KS90 -Right angle measuring mechanism.
	KS100 -standard sensor, plane & shaft & inner surface of hole>6mm, depth <22mm
	KS120 -small hole sensor, cylindrical& plane &inner surface of hole>2 mm, depth <9mm
	KS110 -sensor for curved surface & plane, cylindrical, curvature radius>3 mm, work with platform KA620
	KS131 -sensor for deep groove, cylindrical & plane & groove width>3 mm, depth<10mm work with platform KA620
	KA520 -Metal working platform, elevating, convenient and stable for test process.
	KA620 -Marble substrate working platform, elevating, V groove, high accuracy to test tiny work piece.
	Roughness comparison block High quality comparison block of surface roughness Strict anti-rust treatment process 30 comparison block/set
	Mini Pinter External printer for TR210, TR220
