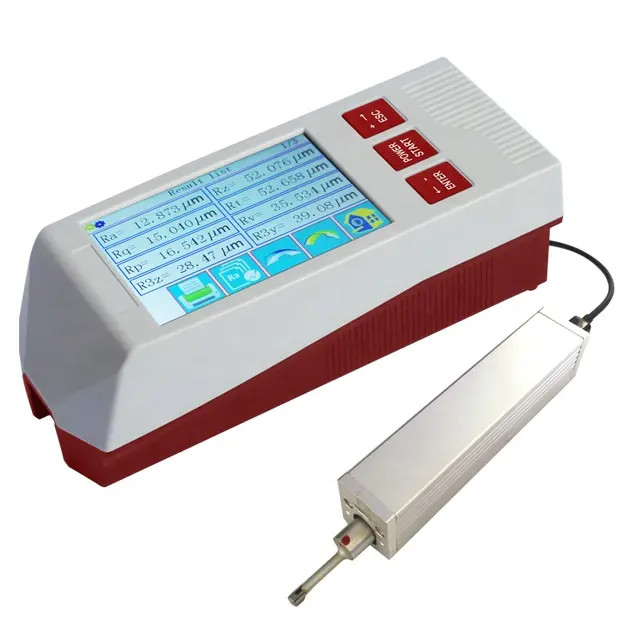

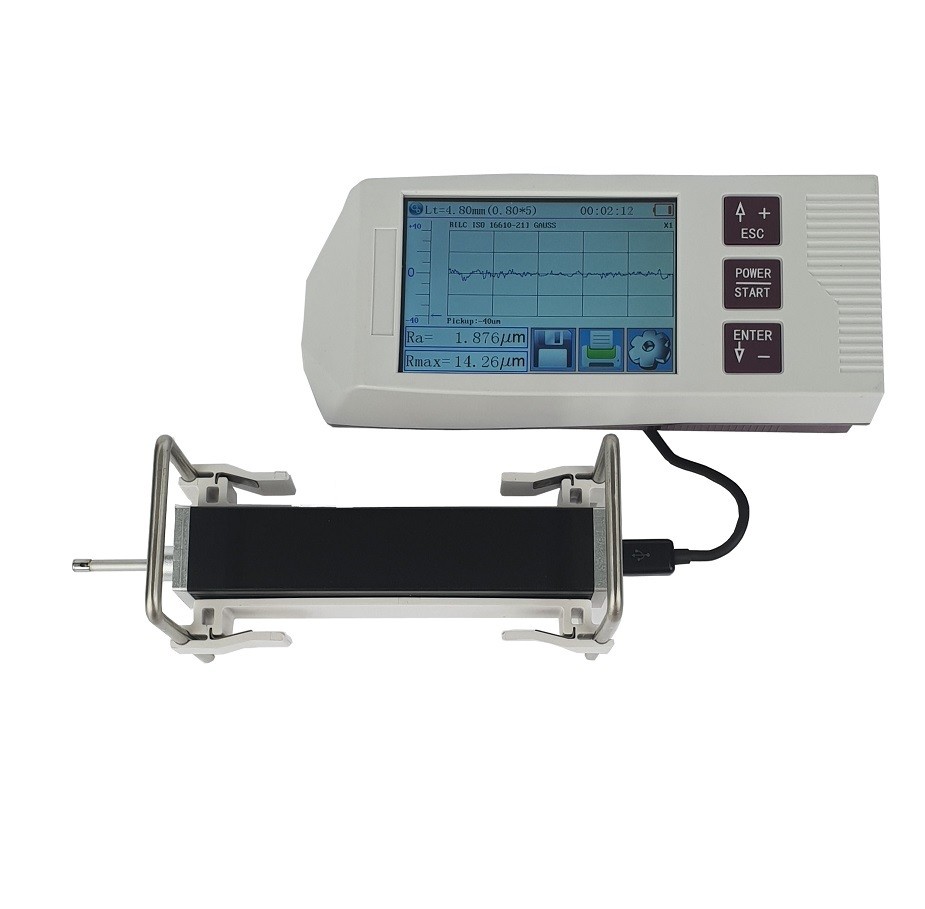

TR310 3.5" Colour Touchscreen LCD Surface Roughness Gauge Testers 22 Parameters

0.002μm/±20μm, 0.004μm/±40μm

0.008μm/±80μm, 0.02μm/±160μm

Temperature: - 20℃ ~ 40℃

Humidity: < 90% RH

Temperature: - 40℃ ~ 60℃

Humidity: < 90% RH

KS55 - Extending Rod, extending rod increases the depth for pickup to reach the part. extending 50mm long.

KS90 - Right Angle Rod, change the position of the sensor, mostly use for measure surface of particular groove.

KS100 - Small Hole Sensor, measures flat surface, shaft in axial direction ; when measure in inner hole, the diameter of inner hole are required＞5mm, depth＞22mm.

KS110 - Curved Surface Sensor, to measure smooth cylindrical surface which radius is larger than 3mm, for the large radius smooth spherical surface and other surface also can obtain good approximation, need to work with platform KA520 or KA620.

KS120 - very small Sensor, to measure the inner surfaces of holes with radius more than 2mm, better to work with platform KA520 or KA620.

KS130 - Groove sensor, 1. measure flat surface when attached to split type surface roughness tester. 2.For measuring in grooves up to a depth of 3mm with width of 2mm, also to equipped with Measuring fixture, allow measure cylindrical in axial direction.

KS131 - Deep Groove Sensor, measuring in grooves up to a depth of 10mm with width of 3mm. used to measure the planar, cylindrical in axial direction and work with platform KA520 or KA620 and other stand to adjust height.

KS132- 15mm Very Deep Groove Sensor,

KA520 -Metal Substrate Working platform, adjustable height 200mm.

With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended.

KA620 -Marble Substrate Working Platform, adjustable height 300mm.

With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended.

Height Gauge, adjust testing height and angle. suit for for split type surface roughness tester, allows more flexible and firm measurement, Adjustable max height: 300mm.

Standard Roughness Calibration Block Multi-engraved lines (Square Wave)

Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block.

Meet standard GB/T19067.1-2003 and ISO5436-1:2000

Approximation: Ra=0.1μm, 0.2μm, 0.4μm, 0.8μm, 1.6μm, 3.2μm, 6.4μm

Customized Value and Sine Wave available, welcome to inquire.

Standard Roughness Calibration Block Single engraved lines

Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block.

Meet standard GB/T19067.1-2003 and ISO5436-1:2000

Approximation: H10-20μm (roughness tester use filter D-P, test RT value)

Customized Value available, welcome to inquire.

Roughness Comparator (30 pcs/set)

This set contains standards of the six most important machining methods in the prevalent "AA" values. These surface roughness is used to compare and determine the degree of the surface finish by comparision method and eye estimation or magnifying glass.The surface rough contast blocks is made of 45 super carbor steel except the GCr15 which is using to plat lapping the sample block. All 30 speciments are calibrated in u''AA (Arithmetical Average) and in the metric equivalents um Ra.

Charge and Cable for Surface Roughness Tester

Charger: US and EU standard optional

Cable: USB interface

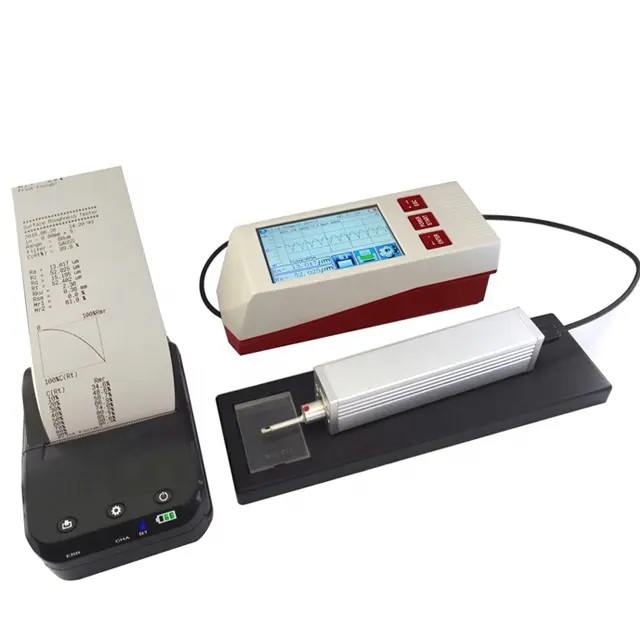

Mini thermal printer

External printer, connect by USB interface, suitable for Kairda models.

Thermal printing paper

Suitable for our mini thermal printer and other testers with built-in printer

Packing: 10pcs/bag

• Paper Width : 57mm(56.18mm)Roll Diameter : Ø = 30 mm
