Reliable Instruments Metal Alloy Analyzer K-1688 Hand-held Precious Metal Analyzer

1 Piece
MOQ
Bulk discount
Price
Reliable Instruments Metal Alloy Analyzer K-1688 Hand-held Precious Metal Analyzer
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Weight: 1.5 Kg
Product Name: Metal Alloy Analyzer
Model: K-1688
Voltage: 35kV-50kV Voltage
DIMENSION: 250mm X 75mm X 270mm
Weight: Device: 1.50kg, 1.65kg With Battery
Detector: High-resolution Si-Pin Detector
Power Supply: 1 Lithium Battery (7.2v\6600mAh)
Operating System: Windows CE6.0
Size: 50*50*50mm
Highlight:

oem ndt radiography equipment

,

50kv ndt radiography equipment

,

oem ndt x ray equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: K-1688
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
K-1688 Metal Alloy Analyzer

K-1688 can analyze common alloys in one second or less. The system is built on the Microsoft WINCE platform, which has better compatibility with the computer platform in facilitating data communication. The users who want to use the device need only to know how to use a computer. KMS-Ray patented technology (mirror system design) is adopted in this device. The temporary files generated during system operation will be automatically deleted after the device restarts, and it can run smoothly as a new one for 10 years. One key system test, one step from startup to test, the test has never been so convenient.

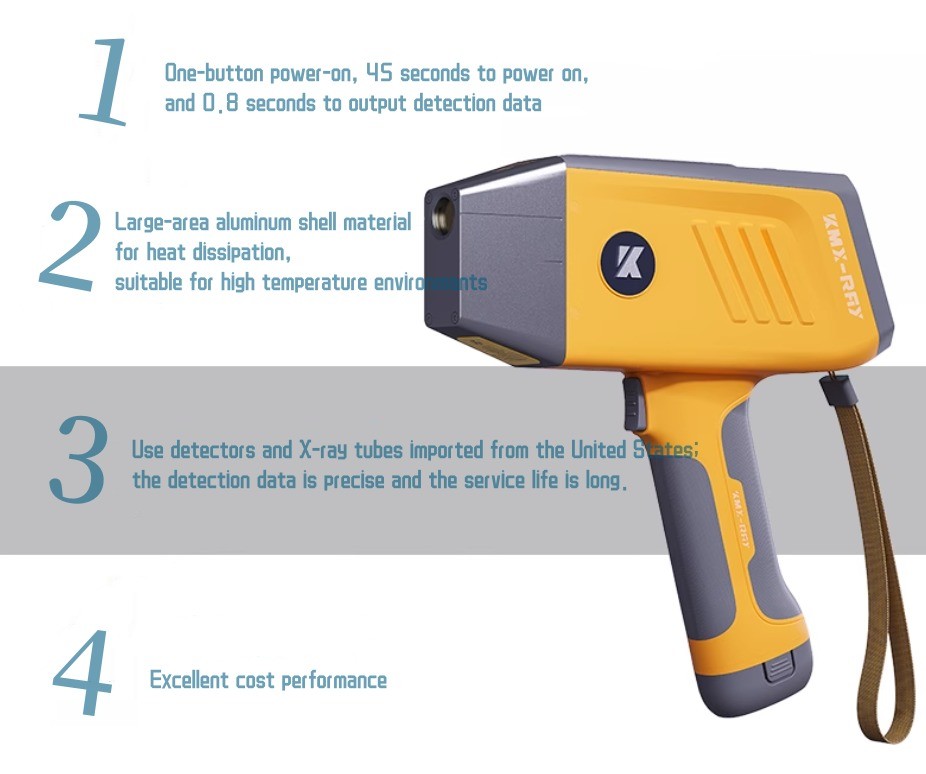

Feature:
  1. One-button power-on, 45 seconds to power on, and 0.8 seconds to output detection data
  2. Large-area aluminum shell material for heat dissipation, suitable for high temperature environments
  3. Use detectors and X-ray tubes imported from the United States; the detection data is precise and the service life is long.
  4. Excellent cost performance
Weight Device: 1.50kg, 1.65kg with battery
Dimension 250mm x 75mm x 270mm (L*W*H)
Excitation source High-power high-performance X-ray microtube
Target 5 available targets for ray tubes are: gold (Au), silver (Ag),
tungsten (W), tantalum (Ta), palladium (Pd)
Voltage 35kV-50kV voltage (changeable)
Filter A variety of selectable filters, automatically adjusted
according to different tested objects
Detector High-resolution Si-Pin detector
Detector refrigeration temperature Peltier effect semiconductor refrigeration system
Standard film 316 external standard films/window protection cover
(internal plus version standard films available)
Power supply 1 lithium battery (7.2v6600mAh)
Processor High-performance ARM pulse processor
Operating system Windows CE6.0
Data trasnsimission Hotspot sharing via Bluetooth and Wifi
Standard mode K-MAX Alloy Plus 6.0
Data processing 32G large capacity data storage card: ≥80000 sets of data and spectrograms
