EC-370 Portable Coating Thickness Measurement Instruments Car Paint Auto Testing Tool

1 Piece
MOQ
Bulk discount
Price
EC-370 Portable Coating Thickness Measurement Instruments Car Paint Auto Testing Tool
Features Gallery Product Description Chat Now
Features
Specifications
Product: Coating Thickness Gauge
Measuring Principle: (Fe ) & Eddy Current ( NFe)
Accuracy: ±(3%+1μm)
Unit: μm, Mm, Mil
Calibration Method: Zero Calibration
Measuring Range: 0~2000μm
Resolution: 0.1μm(0~100μm); 1μm(>100μm)
Probe Type: Internal
Highlight:

Portable coating thickness measurement instruments

,

Car Paint coating thickness measurement instruments

,

Zero calibration car paint thickness measure
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: EC-370
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

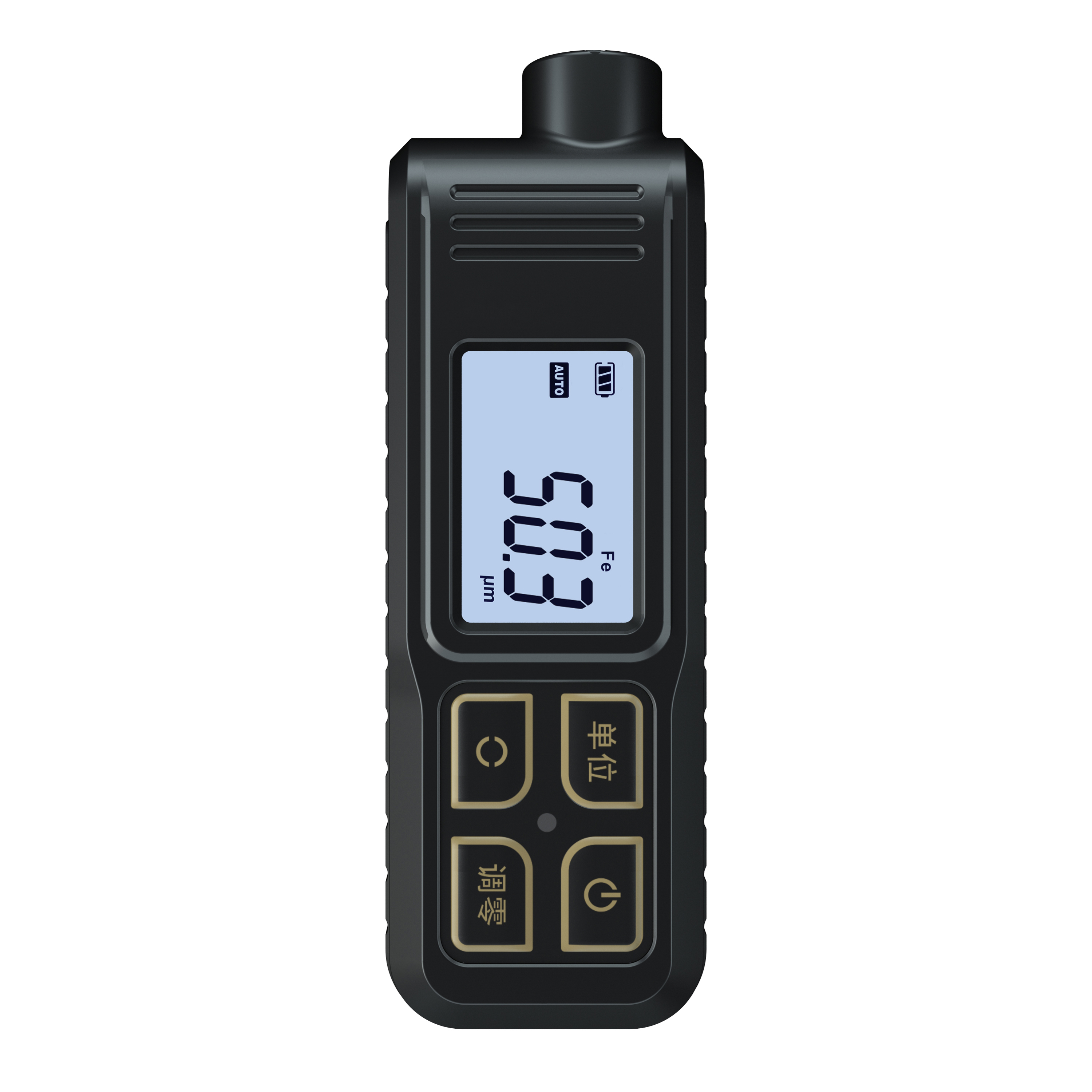

EC-370 Thickness Gauge
DESCRIPTION

EC-370 thickness gauge has a built-in magnetic induction and eddies current effect integrated probe, which can non-destructively measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (such as iron, nickel, cobalt). Specific uses include measuring the thickness of the paint or galvanized layer on the surface of iron and stainless steel and the thickness of the paint or plastic film on the surface of aluminum and copper.

Features
  • Ruby probe
  • Resolution up to 0.1μm
  • Accuracy ±(3%+1μm)
  • Measuring range 0~2000μm
  • Data statistics and recording function
  • Support continuous measurement
  • Support user calibration
  • Recognition of iron-galvanized substrate
  • Maximum measurement speed 2 times/sec
  • Indicator light
  • Manually rotate the screen
  • Automatic shut-down
  • Battery protection
Specifications
Model EC-370 EC-370X
Probe type Internal
Measuring principle Fe: Magnetic induction; NFe: eddy currents
Measuring range 0~2000μm
Accuracy ±(3%+1μm) ±(3%+2μm)
Resolution 0.1μm(0~100μm); 1μm(>100μm)
Unit μm, mm, mil
Galvanized iron identification range 3~500μm
User calibration method Zero calibration
Statistics Maximum, minimum, average, number of measured values
USB data transfer Supported
Storage capacity 200 measurement data
Probe triggering force 0.5~1.2N
The minimum radius of curvature of the substrate Convex surface 5mm; Concave surface 25mm
Minimum measuring area 15mm in diameter
Minimum thickness of substrate Fe: 0.30mm; NFe: 0.05mm
Maximum measuring speed 2 readings/sec
Display Dot-matrix LCD screen Dot-matrix OLED screen
Operating environment -10~50℃ -40~50℃
Storage environment -20~60℃ -50~60℃
Power supply 2 pcs AAA 1.5V alkaline batteries; 2 pcs AAA 1.2V rechargeable batteries
Protection class IP40
Size 134*44*27mm
Case material ABS
Weight About 71g (without batteries)
EC-370 Portable Coating Thickness Measurement Instruments Car Paint Auto Testing Tool 0
