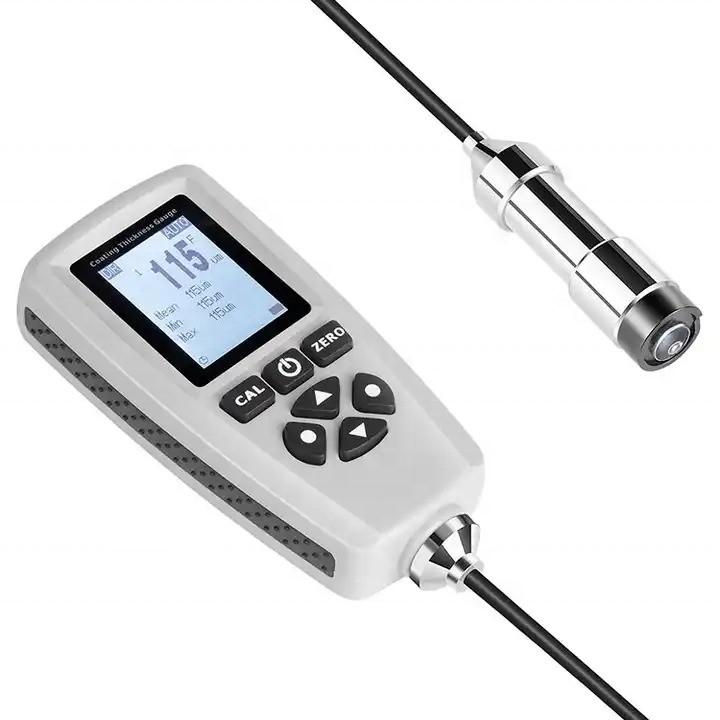

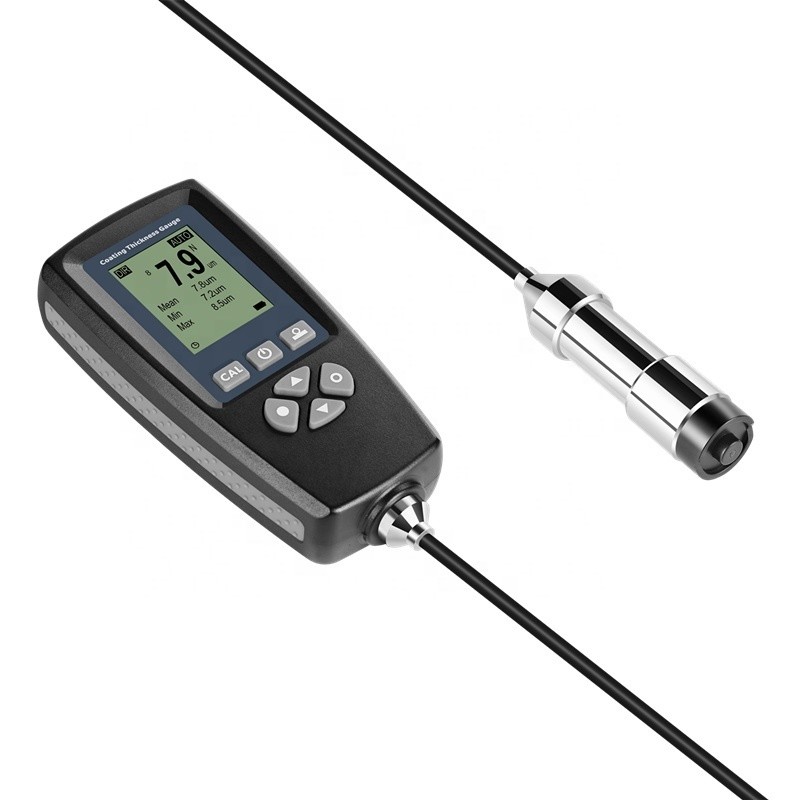

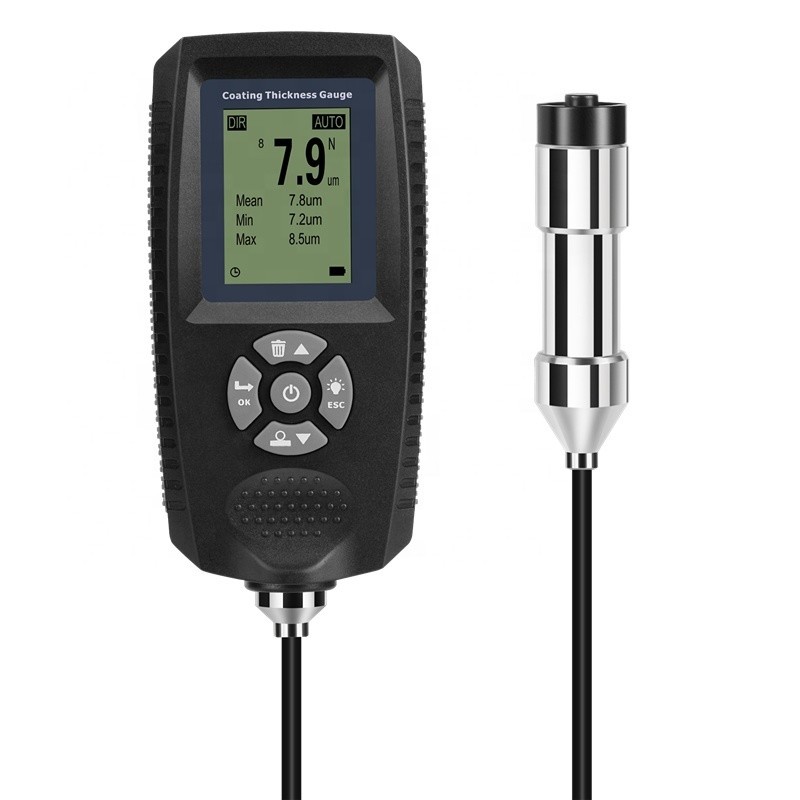

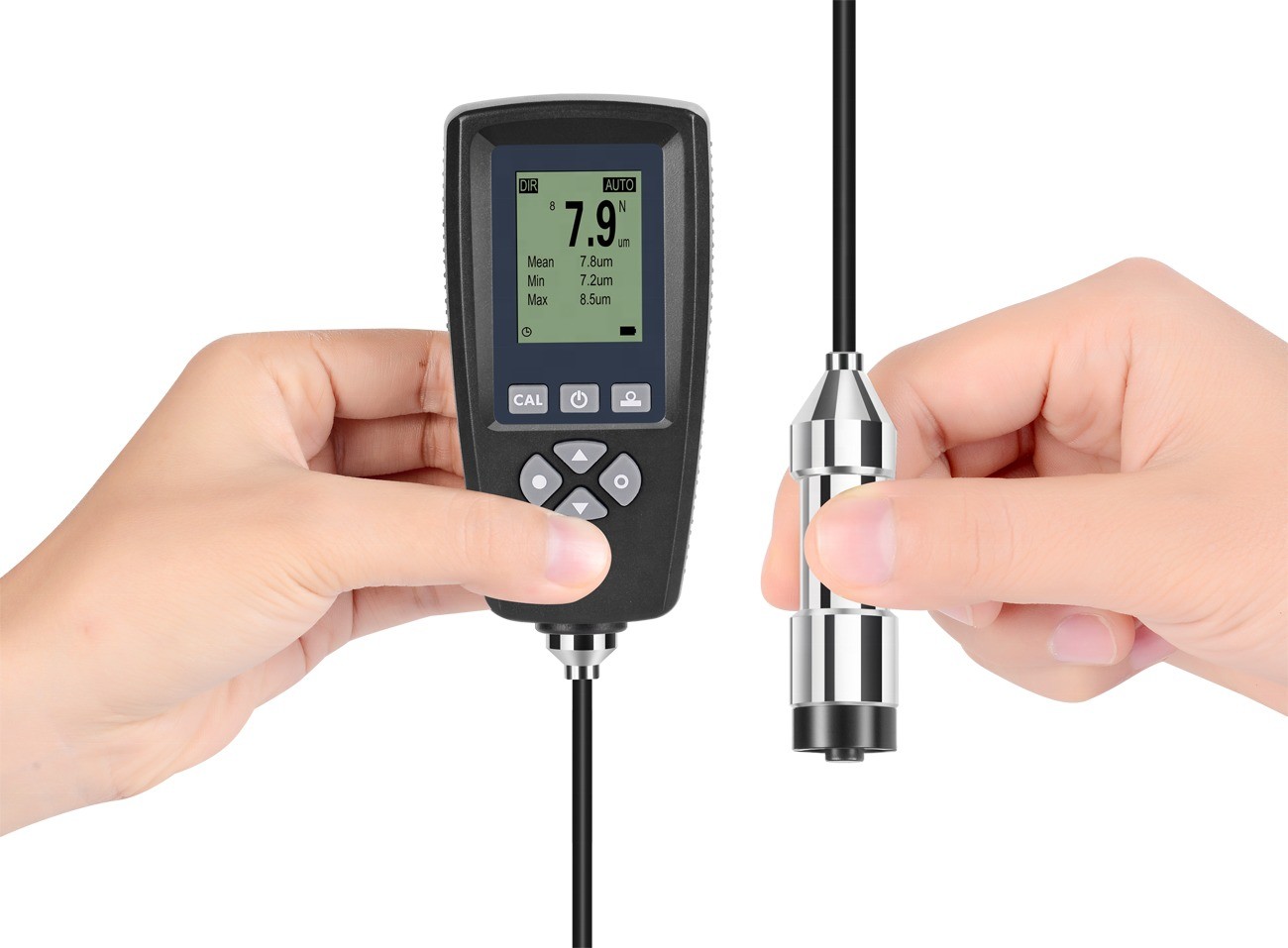

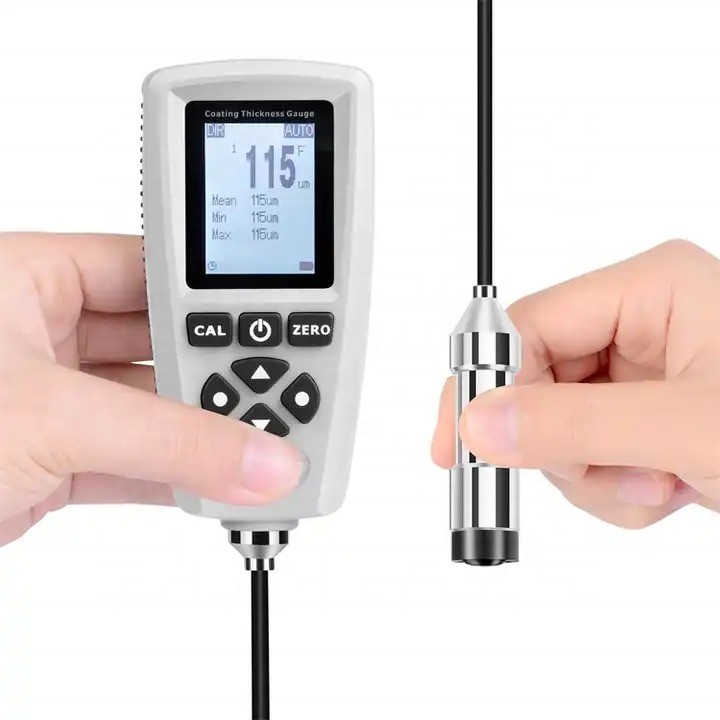

Name: Electroplating Dedicated EC-770 Coating Thickness Gauge Dual Probe Metal Coating Thickness Gauge
Brand: Testech Group Co., Ltd
SKU: EC-770
Availability: InStock

Electroplating Dedicated EC-770 Coating Thickness Gauge Dual Probe Metal Coating Thickness Gauge

1 Piece

MOQ

Bulk discount

Price

Features Gallery Product Description Chat Now

Features

Specifications

Warranty: 2 Years

Customized Support: OEM

Place Of Origin: China

Brand Name: TESTECH

Model: ET-770

Product Name: Coating Thickness Gauges

Measuring Range: 0-122μm(0-3.5oz/ft2)

Probe Position: Separate Digital Probes

Metric Units(μm): 9,12,17,26,35,53,70,105

Imperial Units(oz/ft2): 1/4,1/3,1/2,3/4,1,3/2,2,3

Protection Class: IP20

Material: ABS

Dimensions: 109*67*31mm

Operating Environment: -10~50℃

Highlight:

oem coating thickness gauge

oem dry film thickness tester

Basic Infomation

Place of Origin: CHINA

Brand Name: TESTECH

Certification: CE; ISO

Model Number: EC-770

Payment & Shipping Terms

Packaging Details: In Carton

Delivery Time: 3-7 days

Payment Terms: T/T, Credit Card, Paypal, Western Union

Supply Ability: 5000pcs/month

Gallery

Electroplating Dedicated EC-770 Coating Thickness Gauge Dual Probe Metal Coating Thickness Gauge

Product Description

USB type EC-770 Coating Thickness Gauges

Model	EC-770	EC-770S	EC-770XE
Probe position	Internal		External
Measuring principle	Fe: magnetic induction; NFe: eddy current effect
Measuring range	0~2000μm
Accuracy	±(2.5%+1μm)	±(2%+1μm)
Resolution	0.1μm (0~99.9μm ); 1μm (≥100μm)
Unit	μm, mm, mils
Calibration	Zero calibration, point calibration
Statistics	Number of data, maximum, minimum, mean, standard variance
USB data transmittion	Support
Storage capacity	320 measurements	2000 measurements
Probe triggering force	0.3~0.8N
Minimum radius of curvature of substrate	Convex 5mm Concave 25mm
Minimum measurement area	Diameter 15mm	Diameter 10mm
Minimum substrate thickness	Fe: 0.30mm; NFe: 0.05mm	Fe: 0.20mm; NFe: 0.03mm
Maximum measuring speed	2 readings/sec
Display	Dot Display
Operating environment	Temperature: -10~+50℃; Humidity: 20~90% RH (non-condensing)
Storage environment	Temperature: -20~+60℃; Humidity: 20~90% RH (non-condensing)
Power supply	2 AAA 1.5V alkaline batteries 2 AAA 1.2V rechargeable batteries
Protection class	IP40
Dimension	1145325mm		Host:1145325 mm Line:Φ3.51000mm Probe:Φ1767mm
Material	ABS		Host: ABS Probe: stainless steel
Weight	About 80g(without batteries)		About 140g(without batteries)
Standard	CE, ROHS, ISO 2178, 2360, GB/T 4956-2003, 4957-2003, JJG-818-2005
