High Accuracy Car Paint Coating Thickness Tester Measuring Range 0-1250um

1 Piece
MOQ
Bulk discount
Price
High Accuracy Car Paint Coating Thickness Tester Measuring Range 0-1250um
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Accuracy: ±(2%+2μm) / ±(2%+0.1mil)
Display: TFT 320*240 LCD
Model Number: CM8811FN
Place Of Origin: Beijing, China
Brand Name: TESTECH
Key Words: Paint/coating Thickness Tester
Power: Battery
Highlight:

High Accuracy paint coating thickness tester

,

Car paint coating thickness tester

,

1250um auto paint thickness gauge
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: CM8811FN
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

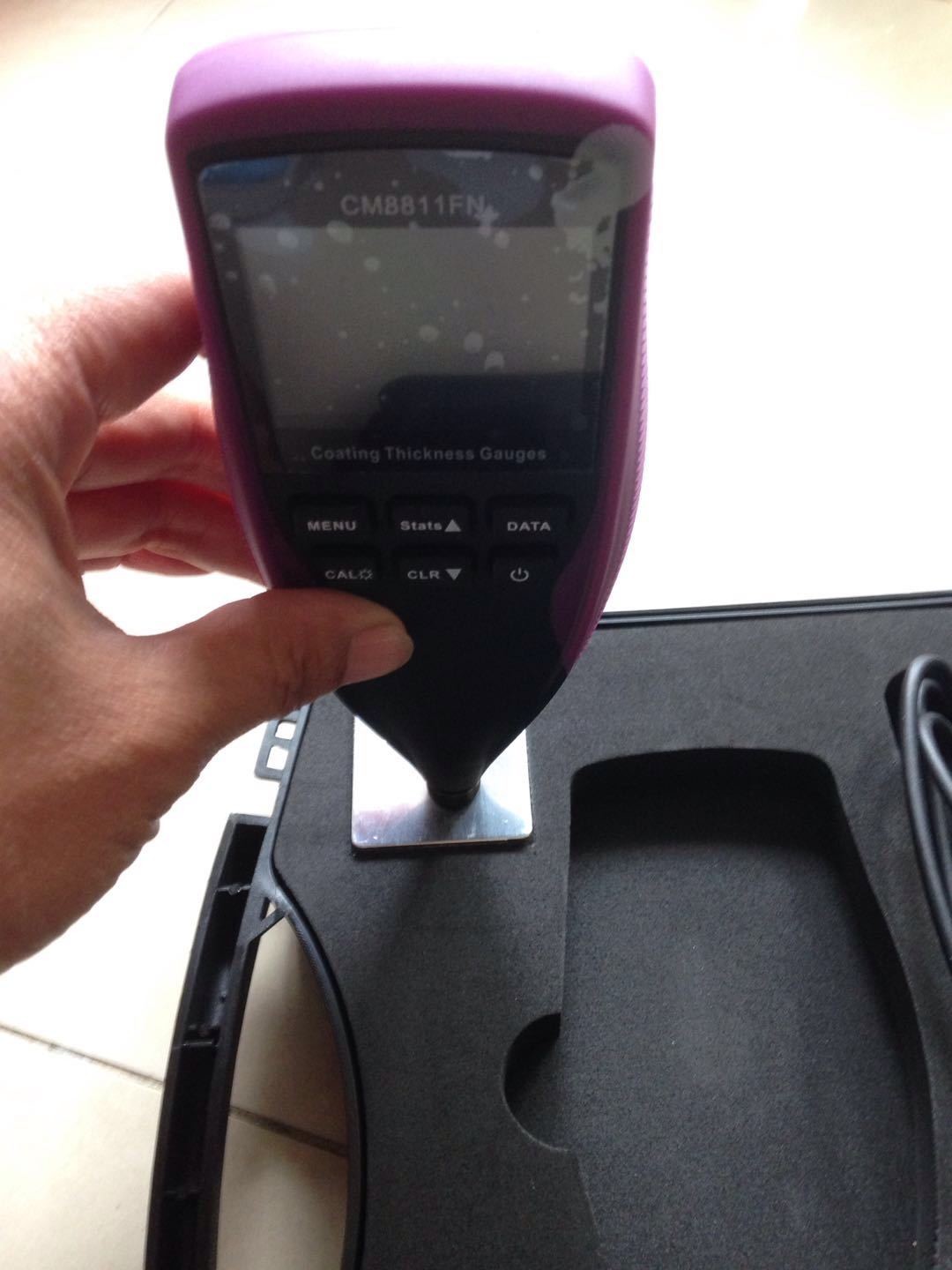

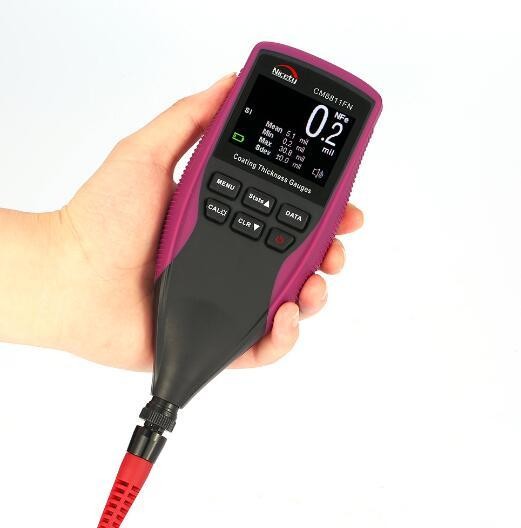

CM8811FN High Accuracy Car Paint Thickness Gauge Coating Thickness Meter Measuring Range 0-1250um
Specification
Range:
0-1250μm /0-50mil
Resolution:
0.1μm/mil
Accuracy:
±(2%+2μm) / ±(2%+0.1mil)
Display:
TFT 320*240 LCD
Test Limits:
Surface curvature: convex 1.5 mm / concave 7 mm
Minimum test surface:
Φ8mm
Minimum thickness of base material:
0.4mm
Operation Condition(not in high magnetic field):
Temperature: 0-40C
Humidity: 20%RH-90RH
Product Size:
166 x 68 x 30mm
Weight:
180g (batteries included)
Function
  • Measuring: Continuous and Single Measurement available
  • Display: Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation
  • Memory: 80 data store
  • Unit: Metric/Imperial switchable (mil/um selectable)
  • Backlight: Brightness adjustable, clear and easy reading under any light condition
  • Alarm: Set higher and lower alarm range for measuring
  • Calibration: Zero-in, 2 points calibration and multi-point calibration selectable
  • Battery: Low battery indication
  • Language: English and Chinese selectable (customization for other languages available)
  • Data Delete: delete a single data or clear all the data

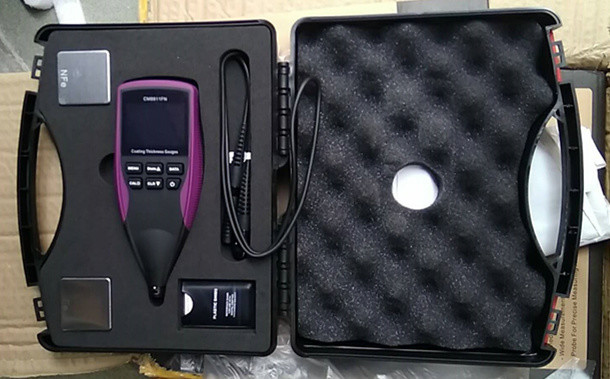

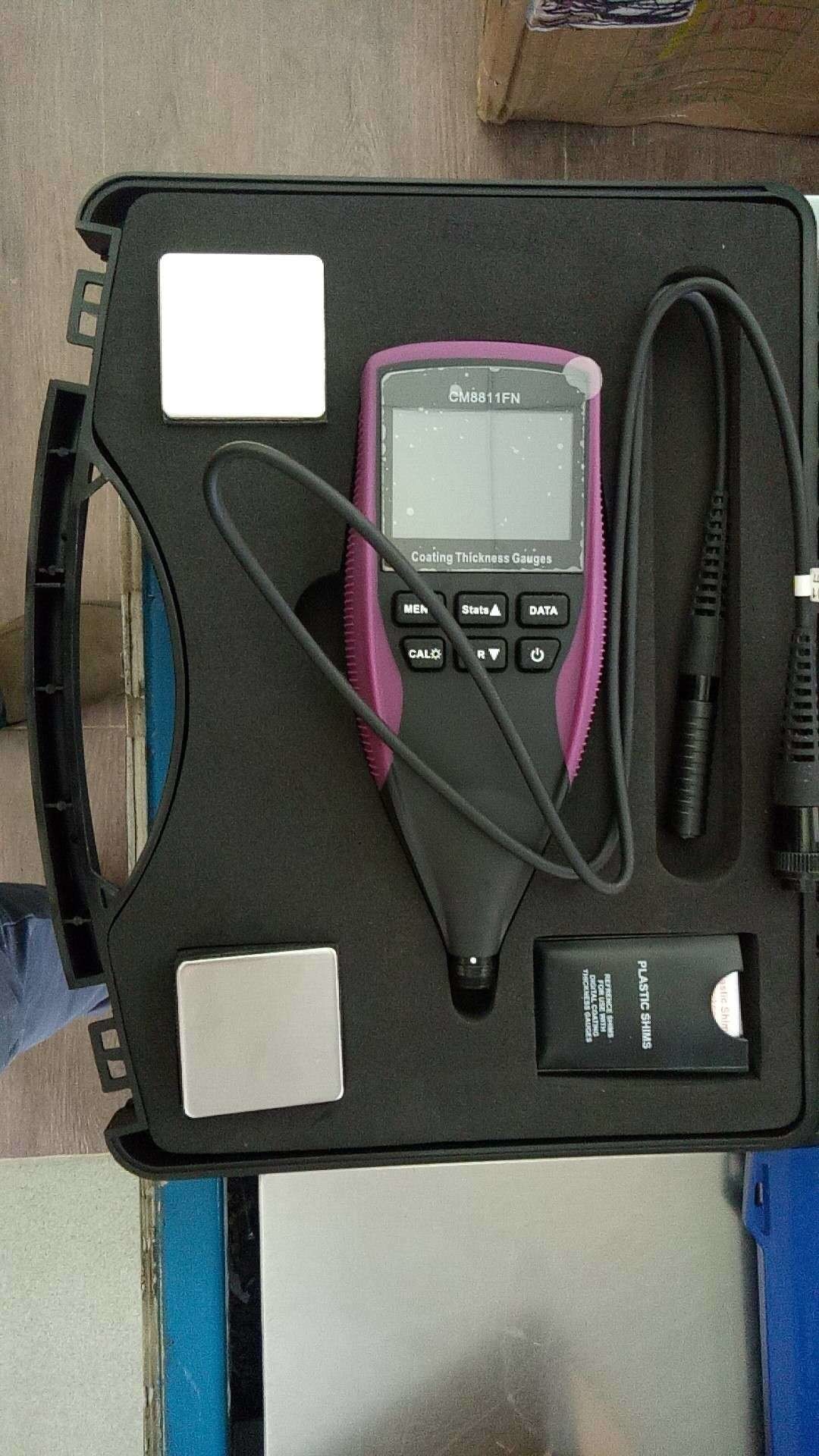

Standard Packing
  • Fe / NFe 2 in one probe x1
  • Plastic test shims x 1set
  • Calibration plates (Steel and Aluminum).
  • Instruction manual x 1
  • Carrying tool case x 1
Products Description
High Accuracy Car Paint Coating Thickness Tester Measuring Range 0-1250um 0
High Accuracy Car Paint Coating Thickness Tester Measuring Range 0-1250um 1
High Accuracy Car Paint Coating Thickness Tester Measuring Range 0-1250um 2
High Accuracy Car Paint Coating Thickness Tester Measuring Range 0-1250um 3
Tag:

Coating Thickness Gauge

automotive paint gauge

auto paint thickness gauge
