Mini Type Coating Thickness Gauge Zero Calibration CE FCC Certification

1 Piece
MOQ
Bulk discount
Price
Mini Type Coating Thickness Gauge Zero Calibration CE FCC Certification
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Accuracy: ±(2%+0.02mm)
Calibration: Zero Calibration
Brand Name: TESTECH
Model Number: EC-100
Measuring Principle: (Fe ) & Eddy Current ( NFe)
Units:: Um, Mm, Mils
Probe:: Built-in Probe
OEM: Acceptable
Certification::: CE FCC Certification
Power Supply:: Two 1.5V AAA Battery
Weight:: ABS; 80g
Highlight:

Mini Coating Thickness Gauge

,

Zero Calibration Coating Thickness Gauge

,

FCC automotive paint gauge
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: EC-100S
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

DESCRIPTION:

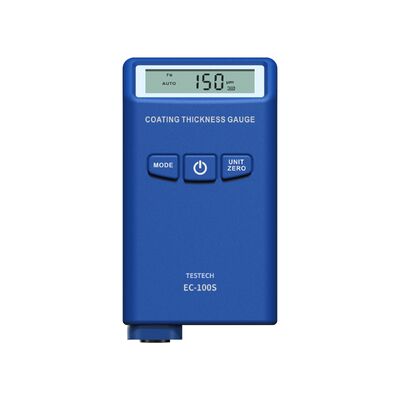

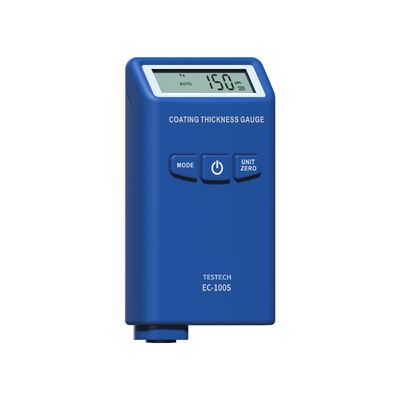

DC-100S is with an integrated magnetic induction and eddy current effect probe, the thickness of non-conductive coating on metal surface and non-ferromagnetic metal coating on ferromagnetic metal (such as iron, nickel, cobalt) surface can be measured nondestructive. The specific uses include measuring the thickness of iron, stainless steel surface paint or galvanized layer, measuring the thickness of aluminum, copper surface paint or plastic film, etc.

SPECIFICATIONS:

Model DC-100S
Probe type Internal probe
Measuring principle Fe:Magnetic induction;NFe:Eddy currents
Measuring range 0~2.00mm
Accuracy ±(2%+0.02mm)
Resolution 0.01mm
Unit μm, mm, mils
Calibration Zero calibration
Probe trigger force 0.5~1.2N
Minimum curvature radius Convex 10mm;Concave 50mm
Minimum measuring area Diameter 10mm
Minimum thickness of substrate Fe:0.20mm;NFe:0.05mm
Maximum measuring rate 2 readings/s
Display Segment code display
Operation environment Temperature:0~50℃;Humidity:20~90%RH (Non-condensing)
Storage environment Temperature:-20~60℃;Humidity:20~90%RH (Non-condensing)
Power supply 2 pcs 1.5V AAA alkaline batteries
2 pcs 1.2V AAA rechargeable batteries
Protection class IP40
Size 89*49*21mm
Case material ABS
Weight About 45g (No battery)
Standards / Certificates CE,ROHS,ISO 2178,2360,GB/T 4956-2003,4957-2003,JJG-818-2005

FEATURES:

  • Accuracy ±(2%+0.02mm)
  • Measuring range 0~2.00mm
  • Resolution 0.01mm
  • Buzzer alert
  • Users calibration supported
  • Maximum measurement speed 2 readings/sec
  • Power off automatically
  • Battery protection

APPLICATION:

  • Car paint detection
  • Metal anti-rust treatment
  • Film thickness detection
  • Hardware parts processing
Tag:

Coating Thickness Gauge

automotive paint gauge

auto paint thickness gauge
