Electromagnetic Couplant-Free Ultrasonic Thickness Gauge 1.0-2000mm A/B Scan Metal Wall Thickness Tester with High Temperature Probe

1 Piece
MOQ
Bulk discount
Price
Electromagnetic Couplant-Free Ultrasonic Thickness Gauge 1.0-2000mm A/B Scan Metal Wall Thickness Tester with High Temperature Probe
Features Gallery Product Description Chat Now
Features
Specifications
Measuring Range:: 1.0-2000mm
Accuracy:: ±0.01mm
Sampling:: 100MSPS
Bandwidth:: 1-10MHz
Max Gain:: 96dB
A/B Scan: Supported
Communication: USB2.0
Units: Metric & Imperial
Display: 2.4" IPS Color LCD
Net Weight:: 250g
Highlight:

Electromagnetic ultrasonic thickness gauge with high temperature probe

,

Couplant-free metal wall thickness tester

,

A/B scan ultrasonic thickness gauge 1.0-2000mm
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: EUT-340
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T,Credit Card,Paypal,Western Union
Supply Ability: 5000pcs/month
Product Description

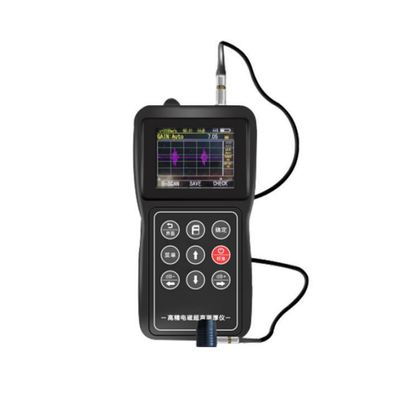

Electromagnetic Couplant-Free Ultrasonic Thickness Gauge
Advanced 1.0-2000mm A/B Scan metal wall thickness tester with high temperature probe capability for industrial non-destructive testing applications.
Key Features
Couplant-Free Operation - Penetrates coating layers without requiring couplant or surface polishing
High Temperature Capability - Built-in temperature compensation for heated workpiece testing
Advanced Display - 2.4-inch HD IPS LCD with adaptive brightness for varying light conditions
Multiple Scan Modes - A-scan and B-scan modes to visualize internal corrosion status
Automatic Functions - Auto gain control, gate recognition, and stable measurement values
Comprehensive Connectivity - RS485 and USB virtual serial port communication
Technical Specifications
Sampling Rate100 MSPS
Bandwidth1 ~ 10 MHz
GainMax 96dB, adjustable in 1dB steps
Transmit Voltage±600V (Non-adjustable)
Measurement Accuracy±0.01 mm
Sound Velocity Range400 ~ 9999 m/s
Effective Measuring Range1.0 ~ 2000 mm
Carbon Steel Measuring Range1X: 125mm, 2X: 500mm, 3X: 2000mm
Applicable MaterialsAluminum, Copper, Iron, Carbon Steel, Cast Steel, Alloy Steel, Stainless Steel, Titanium Alloy
Display Screen2.4-inch HD IPS LCD, 320×240 Resolution
Battery Life5 hours continuous operation
Net Weight250g (Excluding Batteries)
Overall Dimension153mm × 76mm × 37mm
Standard Configuration
ItemQuantityRemarks
Main Instrument1-
Normal Temperature Probe14MHz, Φ30mm×40mm
Charging & Data Cable1-
Charging Adapter1-
User Manual1-
Ferrous Calibration Block1-
Aluminum Calibration Block1-
Packing Box1-
Maintenance Instructions
  • Do not scratch the display screen with sharp objects
  • Protect the instrument and probe from severe vibration
  • Do not store or place the instrument in overly humid environments
  • When plugging or unplugging the probe, grip the movable outer sleeve and pull along the axis - do not rotate the probe
  • Clean oil and dust from probe cable after each use to prevent aging and fracture
