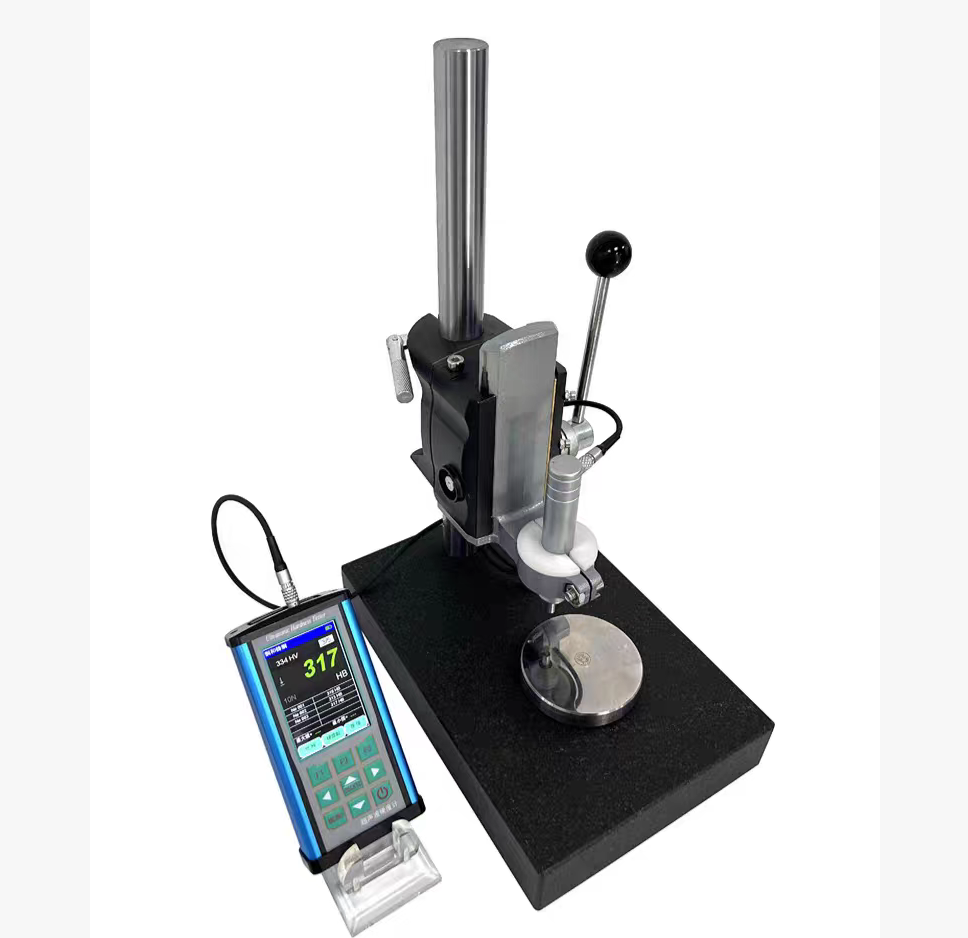

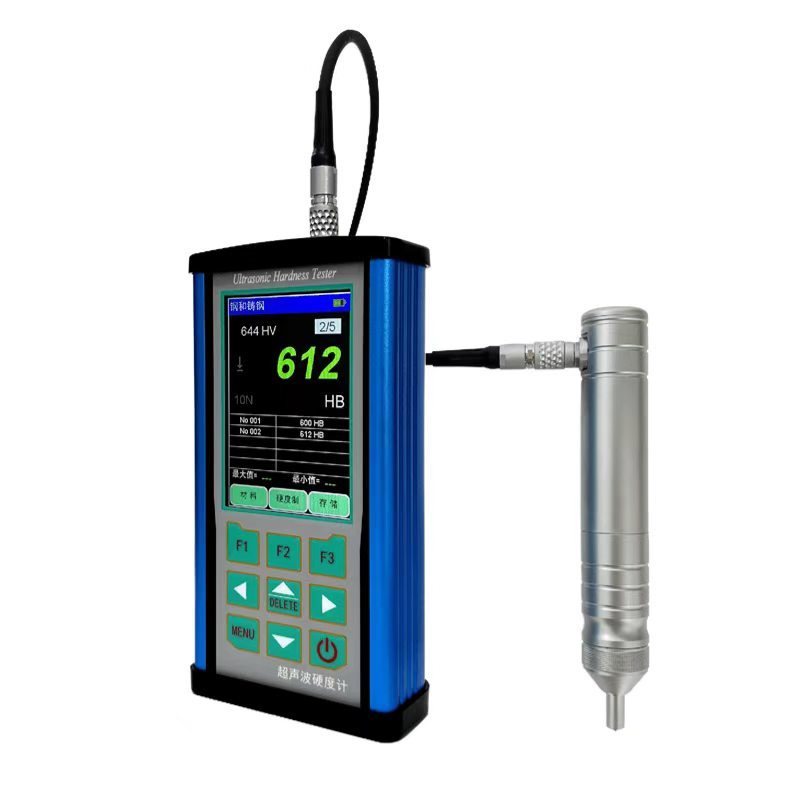

Portable UCI Hardness Tester, Ultrasonic Contact Impedance Method Hardness Testing Instrument

The ultrasonic hardness tester is using ultrasonic contact impedance method to compare and test patterns, this is an innovative design of auto-calibration of probe, presents advantages of high precision, fast speed, easy operation, etc.

3 User materials with setup guide was included, in addition, the hardness measurement covering most ferrous metals, non-ferrous metals and their alloys in industrial production.

It is applicable in hardness test of flange edges, root of gear groove, stamping parts, thin plates, for surface-hardened gear grooves and its taper parts, as well as shafts, thin-walled pipes, turbines.etc.

• Accord to the Testing Standard GB/T 34205-2017
• For materials with different elastic modulus, provide multi-point calibration function for any hardness standard based on your standard hardness samples.
• Support hot-swap and self-calibration: automatically + by manual identifies the probe
• The material function includes 3 new material settings to facilitate hardness testing of special materials
• The display adopts IPS (In-Plane Switching) full digital LCD display with wide viewing angle, and the back light can be adjusted arbitrarily
• USB communication interface allows for data exchange with PC and to set up on PC.
• The upper and lower limits of the hardness value can be pre-set, and an automatic alarm will be issued if the range is exceeded, which is convenient for users to meet the needs of batch testing
• 600 sets of hardness measurement data each includes measurement date, sensor type, material, number of times, single measurement value, average value, maximum value, minimum value, hardness scale and other information

Main unit, Probe (2kgf), Probe cable, 5V ac power adapter, Standard test block, Carrying case
