PHR-100 PHR-200 Magnetic Rockwell Hardness Tester Rockwell And Brinell Hardness

1 Piece
MOQ
Bulk discount
Price
PHR-100 PHR-200 Magnetic Rockwell Hardness Tester Rockwell And Brinell Hardness
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Customized Support: OEM
Place Of Origin: China
Model Number: PHR-100
Product Name: PHR-100 Magnetic Rockwell Hardness Tester
Model: PHR-200
Resolution: 0.5 HR
Test Force: 60kgf, 100kgf, 150kgf
Weight: 4.7 Kg
Highlight:

PHR-200 magnetic rockwell hardness tester

,

PHR-100 magnetic rockwell hardness tester

,

PHR-100 rockwell and brinell hardness
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: PHR-100
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

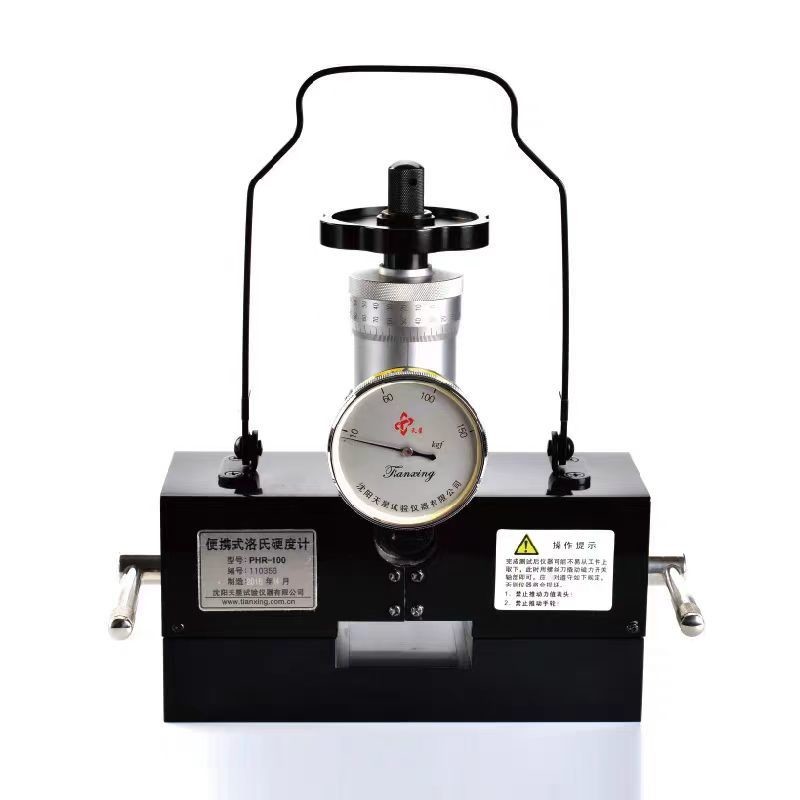

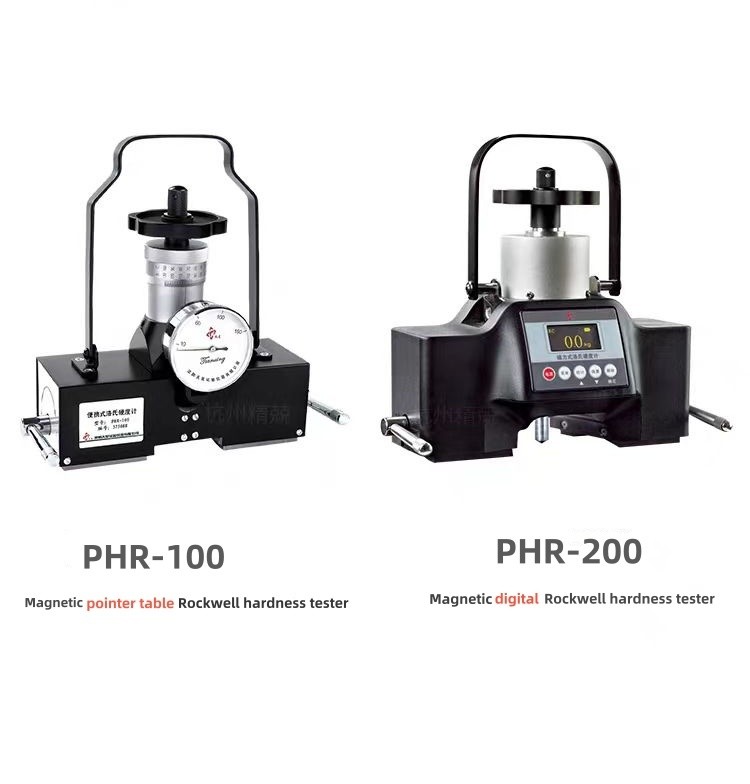

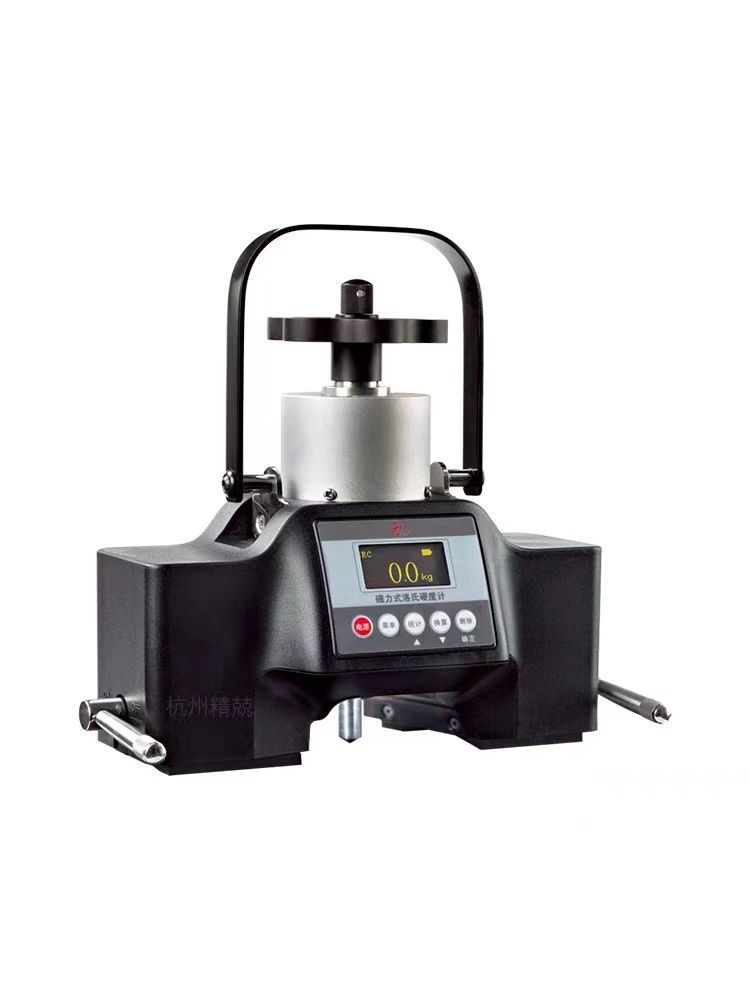

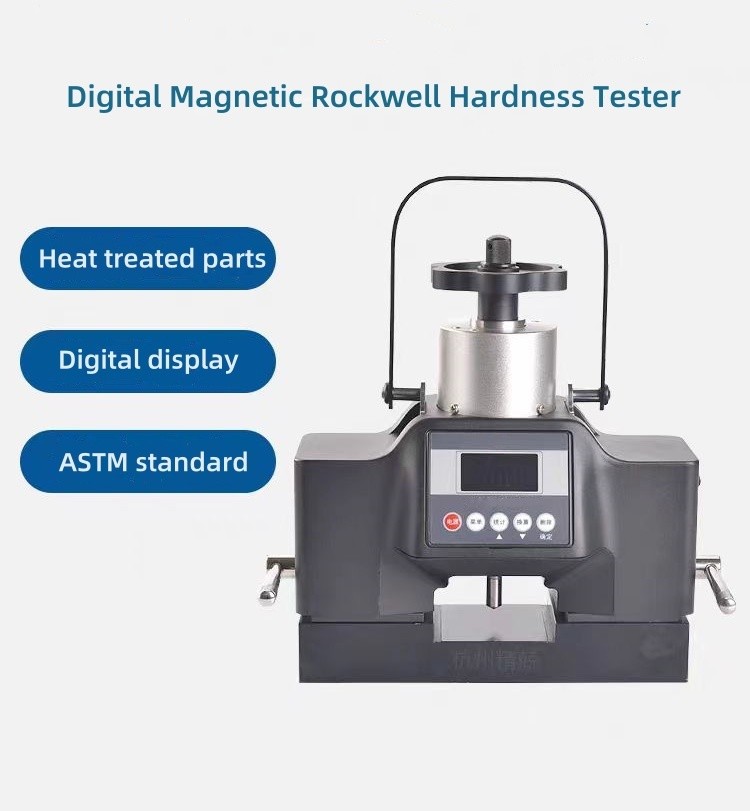

PHR-100 PHR-200 Magnetic Rockwell Hardness Tester Magnetic Brinell Rockwell Hardness Tester

Fix Rockwell test head to the surface of iron and steel parts to test the hardness by applying magnetic force. Follow Rockwell hardness test method completely and the test condition complies with standard of ISO 6508 and ASTM E 18. The magnetic Rockwell hardness tester is mainly applied in on-site quick test body hardness of steel parts. Test hardness of steel plate, pipe, axis, mould, huge forgings and huge and medium-size heat treatment parts if surface available. Test hardness of weld joint in boiler, pressure vessels, and pressure pipes. Replace low accurate and reliable Leeb hardness testers.

Initial Test Force for Rockwell: 10kgf
Total Test Force: 60kgf, 100kgf, 150kgf
Test head: 120°diamond indenter, 1.588mm carbide ball indenter
Indication Error: Comply with ISO 6508 and ASTM E 18
Testing Resolution: 0.5 HR
Weight: 4.7 kg
Surface: Flat : Area ≥ 180 mm x 60 mm
Thickness : ≥ 5 mm
Cylinder: Diameter ≥ 60 mm Length ≥ 200 mm
 PHR-100 PHR-200 Magnetic Rockwell Hardness Tester Rockwell And Brinell Hardness 0
PHR-100 PHR-200 Magnetic Rockwell Hardness Tester Rockwell And Brinell Hardness 1
PHR-100 PHR-200 Magnetic Rockwell Hardness Tester Rockwell And Brinell Hardness 2
