Equipped with large LCD screen, can quickly and easily read the test result; Wide valid testing range equivalent to Brinell hardness 25-150HBW, suitable for testing the hardness of all kinds of aluminum from very soft aluminum to very hard alloys; Equipped with bracket rotation positioning device; The machine automatically converts hardness HW, HV, HB, HR-E, HRF, HRB, HRH; With the maximum value hold function, the maximum hardness value during the measurement is recorded; With the average value calculation function, the average value of up to 29 groups of data can be calculated; Small size and light weight (550g), easy to carry; Good stability, easy calibration and high detection accuracy; One-handed operation, no experience is required, and it can be tested in any occasion as long as it is within reach; Wide test range. From very soft pure aluminum to very hard aluminum alloy can be tested, the effective test range is equivalent to Brinell hardness 25~135HB; High sensitivity. The Webster hardness tester has only 20 scales, while the Barcol hardness tester has a test range of 0-100, which has higher sensitivity; No support required, suitable for testing oversized and thick workpieces and assemblies; International qualified product, which meets the international standard of ASTM E648.

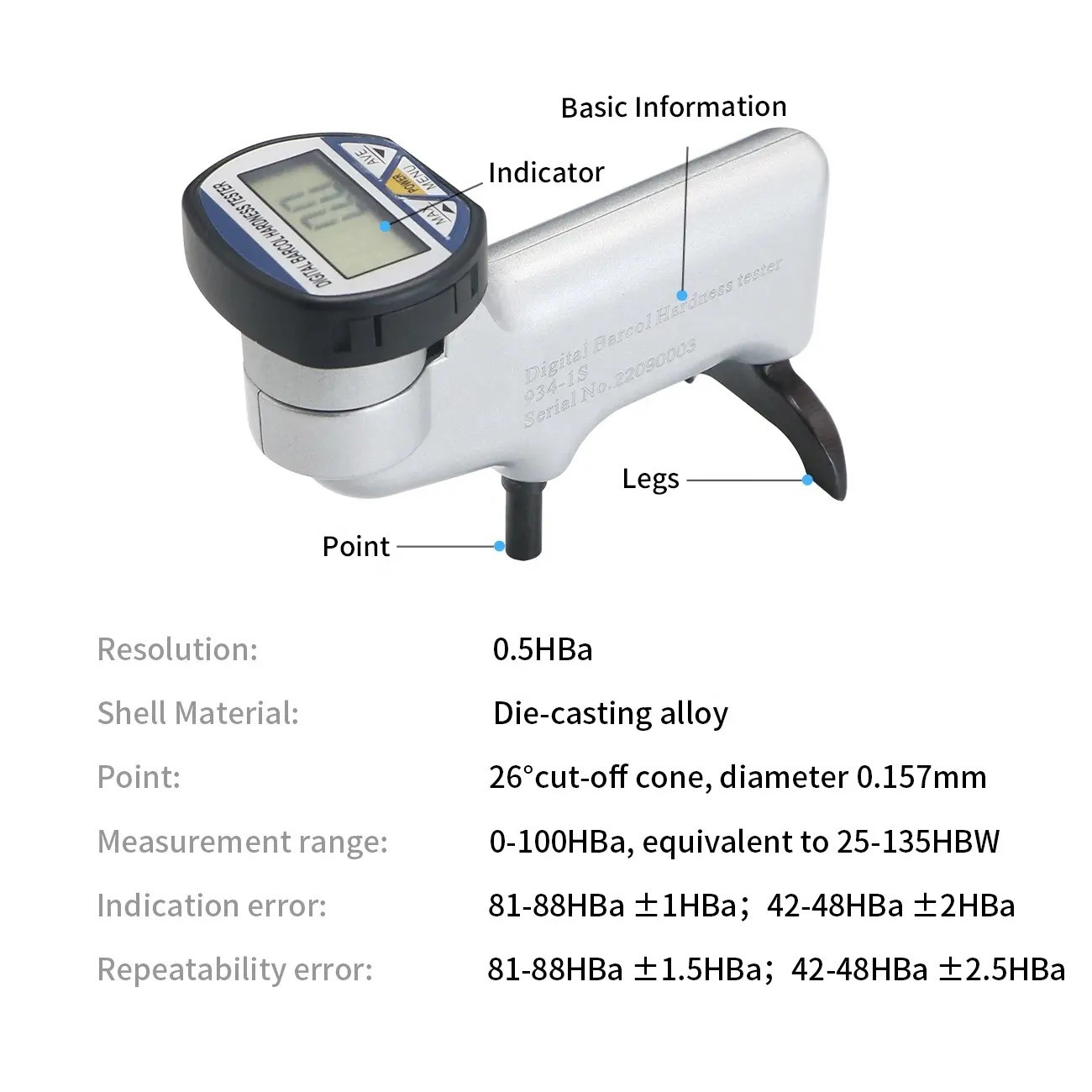

| Testing Range | 0-100HBa(25-150HBW) |
|---|---|
| Resolution | 0.5HBa |
| Indenter | 26°Pan Head Cone, with Head Face Dia.0.176mm |
| Error | ≤±1-2HBa |
| Indication Error | ±2HBa(Hardness Range 42-52HBa); ±1HBa(Hardness Range 84-88HBa) |
| Repeatability | ±2.5HBa(Hardness Range 42-52HBa); ±1.5HBa(Hardness Range 84-88HBa) |
| Dimension | 38x23x14cm(LxWxH) |
| Packing Wegith | 2KG |

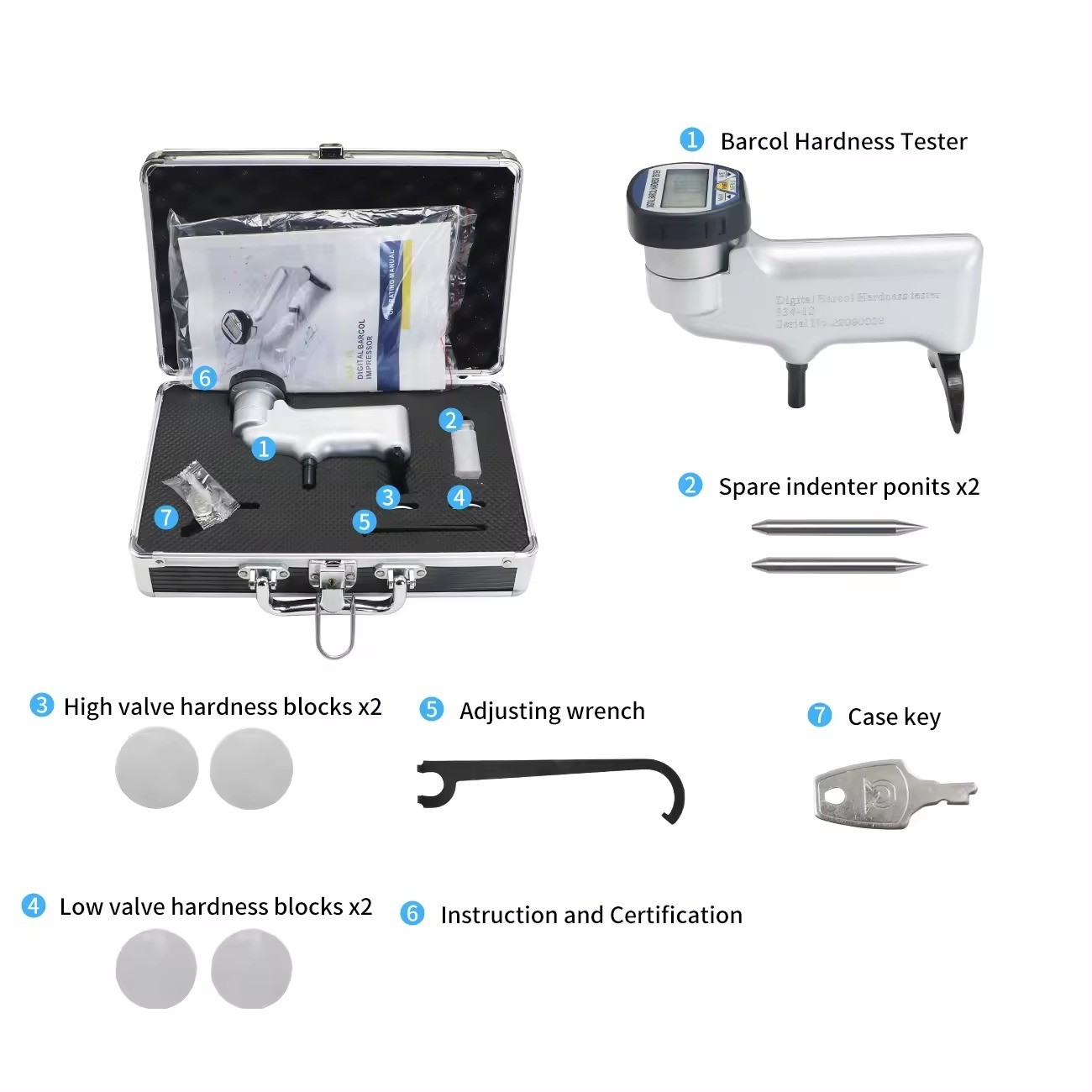

| No. | Items | QTY |
|---|---|---|
| 1 | Main Unit | 934-1S |
| 2 | Testing Block | 2 PCS. |
| 3 | BACKUP Spare Indenter | 1PCS. |
| 4 | Calibration Wrench | 1PCS. |
| 5 | Legs | 1PCS. |
| 6 | Instrument Case | 1PCS. |
| 7 | Manual book, Calibration Report | 1PCS. EACH |
