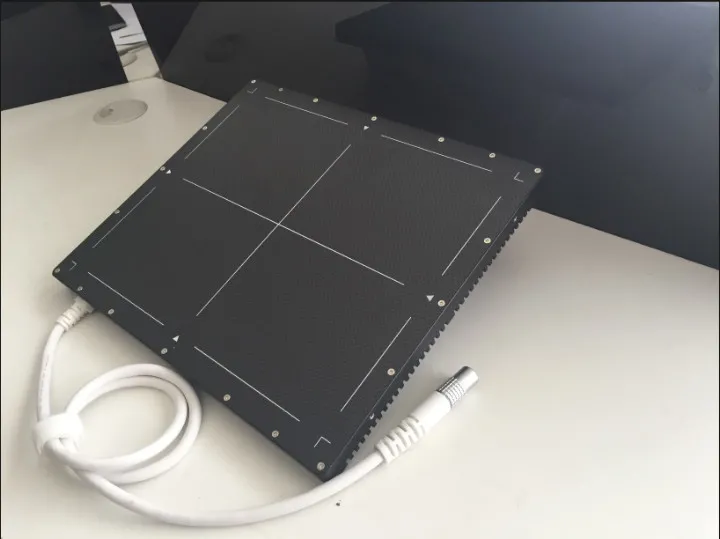

Industrial NDT Digital Radiography DR System NDT X Ray Equipment

• Complies with the latest NB/T 47013.11-2015 standard
• Digital transformation of X-ray real-time imaging detection system
• On-site portable digital imaging inspection
• 16bit high dynamic range
• 120μm pixels, high resolution of 4.0lp/mm
• CsI (cesium iodide) efficient X-ray image conversion
• 25cm×30cm imaging field of view

NDT Instrument Digital Radiography DR System

It integrates the most practical processing and filtering functions specially designed for X-ray real-time imaging systems, which can increase the sensitivity of processed images by an average of 0.6%-0.8%. With the help of a high-speed Ethernet port, it can help you obtain static images and dynamic images at the same time, and save them in 8/16bit image format, which can be directly burned to DVD discs for permanent storage. This facilitates the archiving and review of test data, while saving test costs and archive space.

• Gigabit network flat panel connection, with connection status and fault prompts
• Offset/gain/bad pixel correction
• Offset/gain/bad pixel correction, optional overlap or not
• Display ratio prompt
• Current frame rate reminder
• Software processing progress display
• Pixel gray value display

• Real-time image ROI fast grayscale mapping, facilitating quick observation of effective images of the region of interest
• Real-time display integral noise reduction: 2/4/8 frames optional
• Real-time display algorithm processing: negative film/color/binarization
• Real-time display of image sharpening and enhancement
• Image integration collection: 8/16/32/64/128/256 frame overlay
• Continuous video recording: optional compression format
• Picture/video naming and automatic sequence compilation of names
• 0-65536, 16bit grayscale adjustment
• Gamma/contrast/brightness/threshold adjustment
• Picture information mark, multiple contents optional

• ROI fast grayscale mapping, facilitating quick observation of effective images of the region of interest
• Supports reading of bmp / png / jpg / tiff(8bit/16bit) / RAW / his / dcm files
• Grayscale/negative film/false color/binarization/sharpening/enhancement algorithm processing
• Magnifying glass, 1-5 times magnification observation
• Picture flip
• Gamma/contrast/brightness/threshold adjustment
• Size calibration and measurement, and required information can be marked on the picture

Complies with the requirements of NB/T 47013.11-2015 "Non-destructive Testing of Pressure Equipment X-ray Digital Imaging Testing" standard, automatically verifies the dual-filament image quality indicator, and can determine SNR (Signal-to-Noise Ratio).
