High Luminance LED Industrial Film Viewer Dual View With Adjustable Spot, Electronic Light Mask, 14x17 Inch Compatible, Continuous Operation & ISO 5580 Certified

1 Piece
MOQ
Bulk discount
Price
High Luminance LED Industrial Film Viewer Dual View With Adjustable Spot, Electronic Light Mask, 14x17 Inch Compatible, Continuous Operation & ISO 5580 Certified
Features Gallery Product Description Chat Now
Features
Specifications
Name: High Luminance LED Industrial Film Viewer
Film Compatibility: Supports 14"×17" And Any Size (with Electronic Light Mask)
Dual View Windows: 14x17" View & Spot View
Brightness Adjustment: 5%-100% Dimming For Both Views
Spot View Size: Adjustable From φ5mm To φ100mm
Film Density Capacity: Up To 4.2 H/D
Operation Time: 24-hour Continuous Running
Standard: ISO 5580 And EN 25580
Max Film Density: 3.9D (14×17 View), 4.5D (Spot View)
Power Supply: 85-264VAC 47~63Hz (Switchable)
Highlight:

industrial ndt radiography equipment

,

industrial ndt x ray equipment

,

100mm ndt radiography equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE CERTFICATE
Model Number: FV-2014IRIS
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

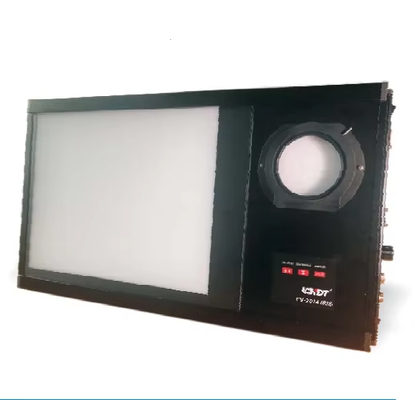

FV-2014IRIS High Luminance LED Industrial Film Viewer with 14×17" & Adjustable Spot View

FV-2014IRIS looks like a fashion LCD, but it is a really High luminance LED Industrial film viewer. It combines our newest electronic technology and most reliable LED driven circuit. Thanks to it, this viewer can view film density up to 4.2 H/D, and can be operated 24 hours continuously.

Electronic light mask

FV-2014IRIS not only support 14” * 17” film, but also support any film size. Because it has a strong LED switch control. Under its help, you can switch on or off any parts of area in the viewer window.

Dual view window
  • Both of two views are LED light source
  • 14 x 17" view and spot view can be switch to each other by press “IRIS” key.
  • Both of them can be dim from 5%-100%.
  • Spot view size can be adjust from φ5mm - φ100mm
  • Complies with ISO 5580 and EN 25580

 14 x 17 inch view Spot view:
MAX. Luminance >= 82,800Cd/m2 (260,000Lux) >= 280,000Cd/m2 (879,200Lux)
Film 3.9D 4.5D
Viewer window 335 x 410mm (13 x 16.1 inch) φ5-φ100mm (0.2-3.94 inch)
Uniformity g=0.9 ; g=0.95
Diffusion Factor 0.95 0.95
Weight 8.45Kg (18 lbs)
Dimension 71 x 41 x 5.5cm (without support leg)
Power 85-264VAC 47~63Hz.
(changed by a switch)
Warranty 2 years
Standard Complies with ISO 5580 and EN 25580
