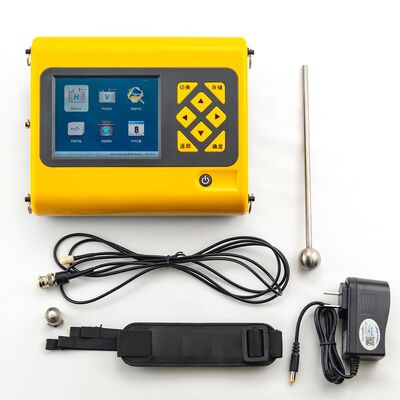

TK-H61 Impact Echo Thickness Gauge State-of-the-Art Technology for Measuring Concrete Structure Thickness

TK-H61 impact echo thickness tester is based on the principle of impact echo to measure the thickness of single concrete structure.

It is mainly used to measure the thickness of floor slab, wall, tunnel concrete, pavement concrete and airport runway.

• Easy to use. Non-destructive testing with shock wave does not need drilling, coring or other methods.
• Large-screen color LCD screen: 5 "color LCD screen with resolution of 640*480, clear and friendly interface.
• The ARM high-speed acquisition platform can display the waveform of impact echo and analyze the frequency spectrum. In the process of on-site acquisition, the waveform can be directly displayed, and the results of spectrum analysis can also be displayed, which is convenient for users to observe the knocking effect and ensure the accuracy of the test results.
• Large storage capacity; It can record more than 20,000 measuring point data, which is convenient for users to use.
• Built-in lithium battery. The instrument adopts built-in lithium battery, which can be recharged and used repeatedly.
• The instrument can save the test date. Save the test date, which is convenient for users to manage data.
• The instrument can be customized in Chinese and English; It can meet the needs of both domestic users and overseas market users.
• Powerful professional windows data analysis and processing software, which is convenient for users to process data later.

• The measuring range is from 5 cm to 110 cm.
• Data storage capacity: Up to 20,000 test data can be recorded.
• Display mode: color LCD screen with resolution of 640*480.
• Built-in lithium battery can last up to 8 hours.
• Working temperature -10~+50℃;
• Instrument size: 208*168*85mm
• Weight: 960g

The external software has powerful data analysis and processing functions: USB port transmission of data; The data can be statistically analyzed and a preliminary conclusion can be drawn according to the specification; Word report can be generated; Data can be imported into Excel, which is convenient for users to analyze and process in the next step.
