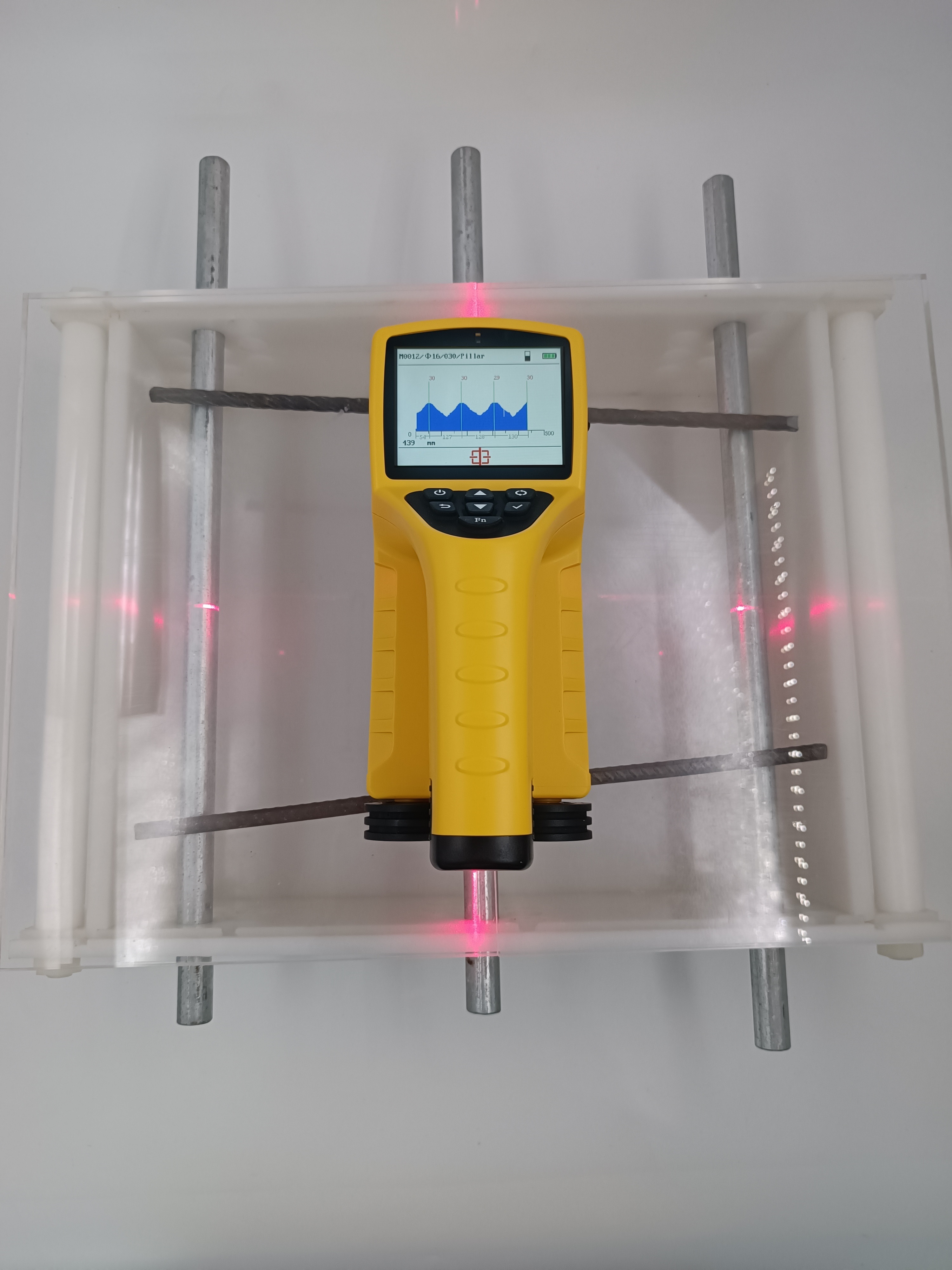

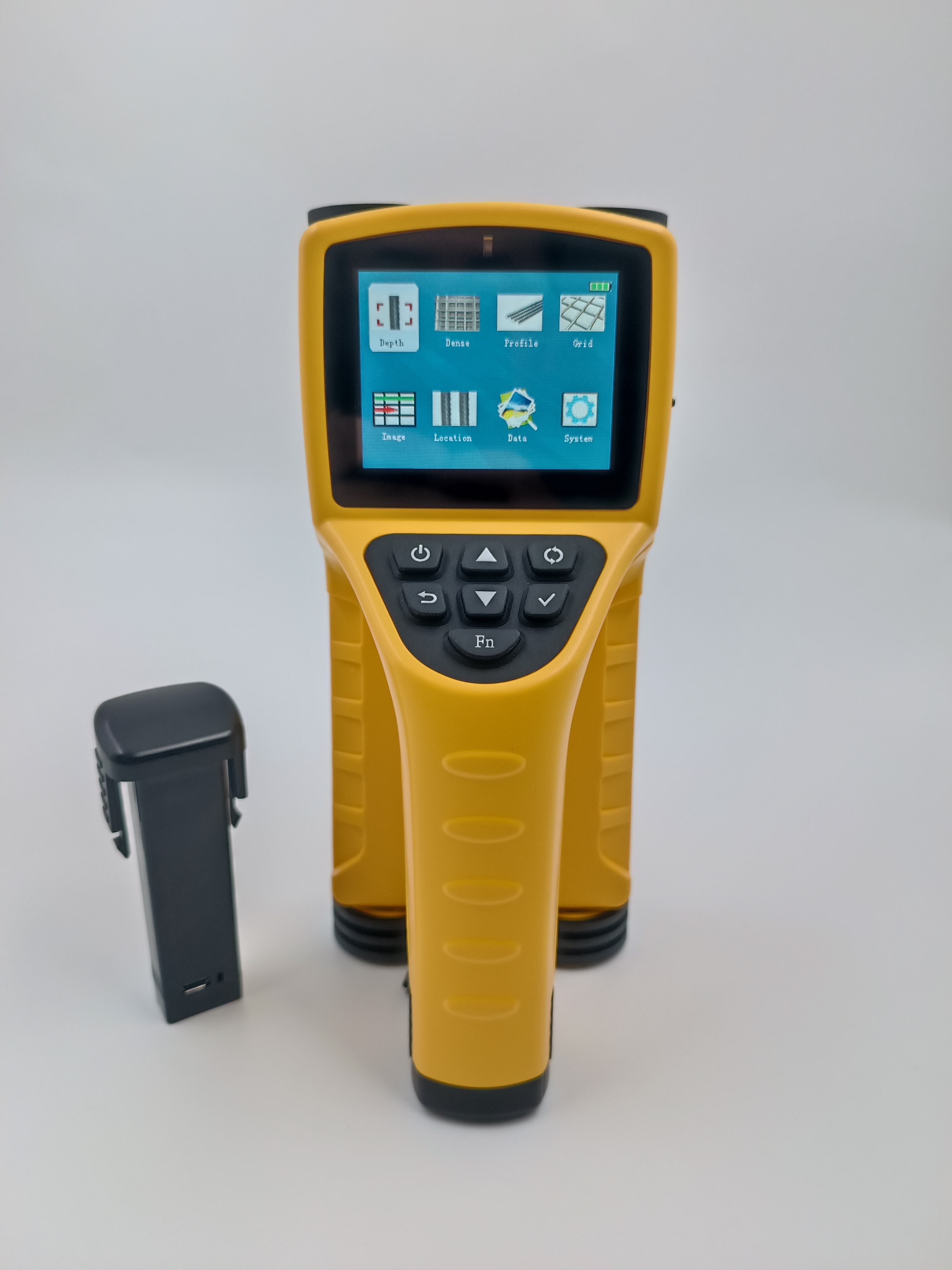

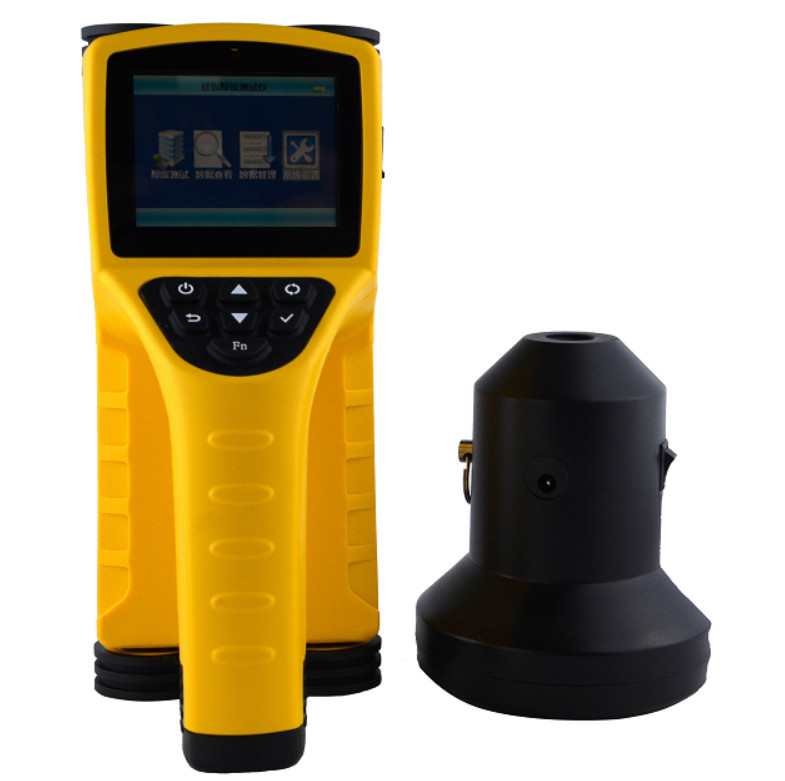

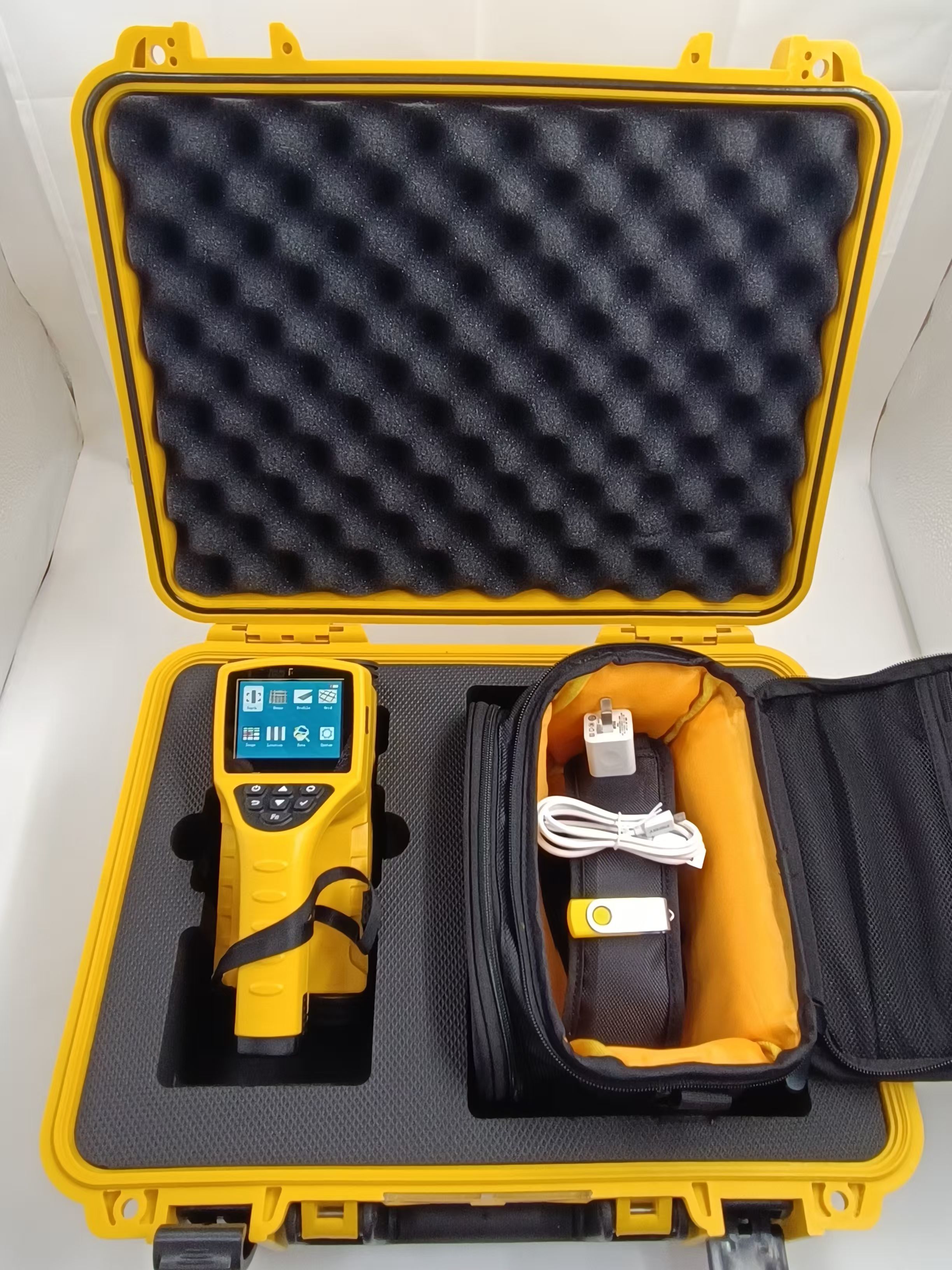

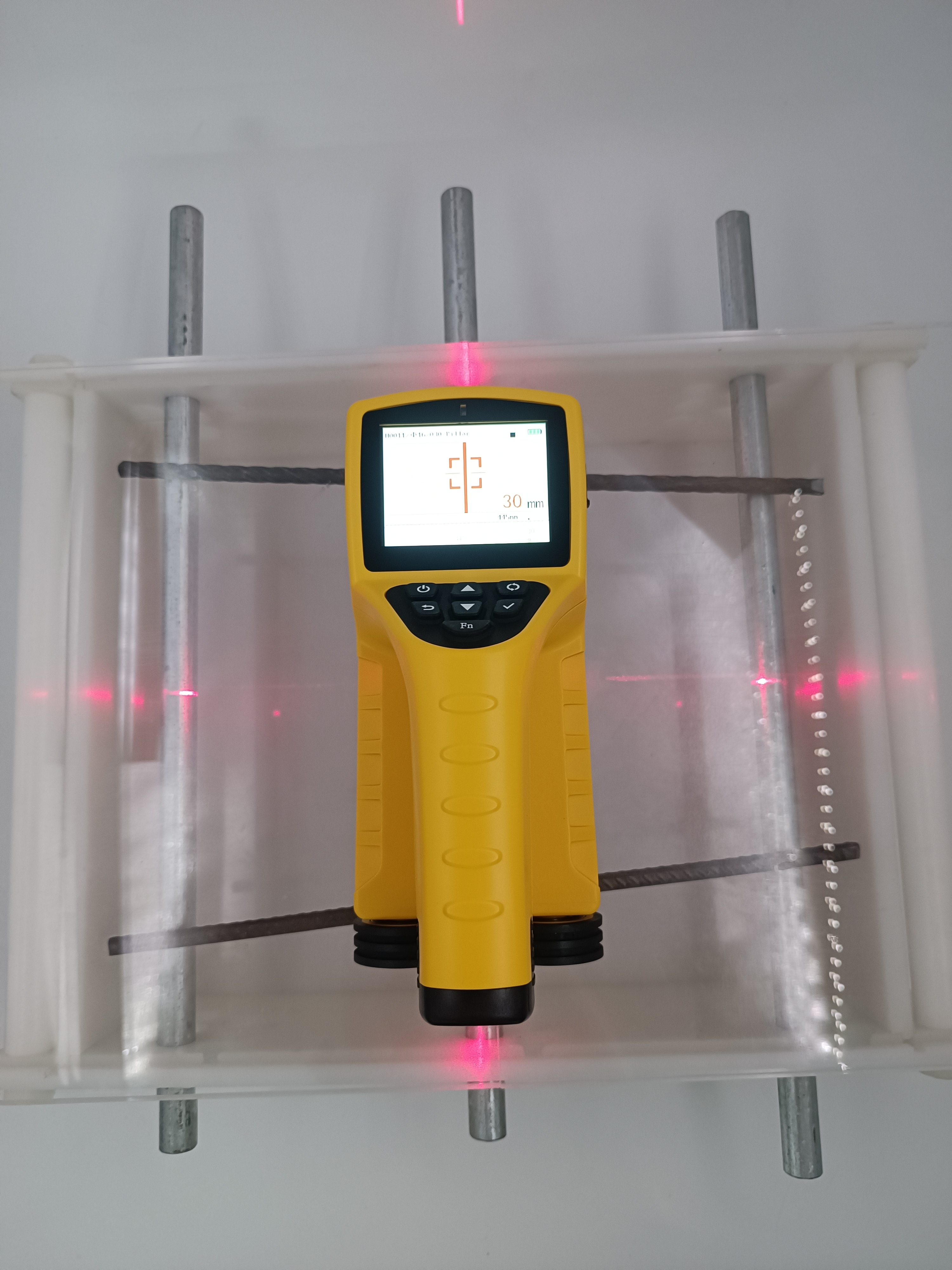

TK-H71S Efficient Floor Thickness Tester Fast And Accurate Data Analysis

It is used to automatically measure the thickness of nonmetallic plates (such as concrete, rock and soil, glass plates, etc.). It has the functions of thickness measurement, data analysis, data storage and output, etc. It is a portable, convenient and accurate intelligent thickness measuring instrument.

Code for acceptance of construction quality of concrete structure engineering GB50204-2015

• There are directions. It can clearly indicate the moving direction of the probe, and it is easy to find the top of the probe;
• The instrument has high testing accuracy and good stability. Intelligent interpretation and locking of floor thickness can reduce human error and labor intensity;
• The instrument has fast testing speed and high efficiency. On average, 3~5 points can be tested in three minutes;
• The test distance is large. Test distance up to 900mm.
• The probe has a long service life. The bottom of the probe of our company's floor meter adopts high-quality wear-resistant layer, which improves the service life of the probe.
• U disk data transmission. Simple and practical. Users can directly use the instrument as a USB flash drive and copy data from it;
• Integrated design. The instrument is compact, practical and convenient to operate;
• Support online upgrade. Users can conveniently upgrade the instrument program;
• Powerful and professional windows data analysis and processing software. The test results can be represented graphically, and the Word test report can be directly generated, which is convenient and quick.

Measuring range: 40mm~900mm

Maximum error of indication: 40 ~ 600mm ±1mm

601～800mm ±2mm

801～900mm ±3mm

Data storage capacity: 32G mass storage, worry-free data storage;

2.8-inch screen with true color display and resolution of 320x240;

High-performance lithium battery, the power supply time is more than 25 hours;

The external software has powerful data analysis and processing functions. USB port transmission of data; The data can be statistically analyzed. And draw a preliminary conclusion according to the specification; Up to 6 kinds of word reports can be generated; The testable grid data and profile data are visually displayed to users in the form of diagrams; Data can be imported into Excel, which is convenient for users to analyze and process in the next step.
