TK-Q61 Digital Concrete Strength Tester Concrete Testing Instrument Portable NDT Instrument

1 Piece
MOQ
Bulk discount
Price
TK-Q61 Digital Concrete Strength Tester Concrete Testing Instrument Portable NDT Instrument
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Year
Customized Support: OEM
Place Of Origin: China
Product Name: TK-Q61 Concrete Strength Tester
Instrument Size:: 205mm*173mm*86mm
LCD Screen: 160*128(10*8cm);
Sensor Frequency: 50KHz
Highlight:

Digital concrete strength tester

,

Portable concrete strength tester

,

NDT concrete compression testing

Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: TK-Q61
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
TK-Q61 Digital Concrete Strength Tester | Rebound Hammer Method | Compressive Strength Measurement | Portable NDT Instrument
Product Description

TK-Q61 concrete strength tester is used to test compressive strength of concrete by two ways: rebound and ultrasonic-rebound method. Also, it can be used to test sound time and speed in concrete.

Features
  • Multi-function for testing compressive strength of concrete. It is used to test the compressive strength of concrete by rebound method and ultrasonic-rebound method.
  • Get the compressive strength value of concrete by ultrasonic-rebound method in one instrument. it need two instrument usually, one to test sound speed in concrete, the other to test rebound value.
  • Can save test date. This is convenient for laborer data management.
  • Real USB transmission. Data can be transmit to computer for future process and analysis.
  • Powerful data process and analysis software in windows. Test data can be export to word or excel for future process and analysis.
Technical Parameters
Permissible sound time error : ±0.1μs
Sensor frequency : 50KHz
Rebound kinetic energy : 2.207J
Rebound springs Rigidity: 785.0±40.0(N/m)
Rebound bar impact length : 75.0±0.3 mm
Rebound value permission error: ≤±1
Average rebound value on Calibration anvil: 80±2
Temperature: -4°C~+40°C
LCD screen: 160×128(10×8cm)
Power: 6 dry cells,work more than 10 times
Size and: 205mmX173mmX86mm
Weight: 850g
Standard configuration

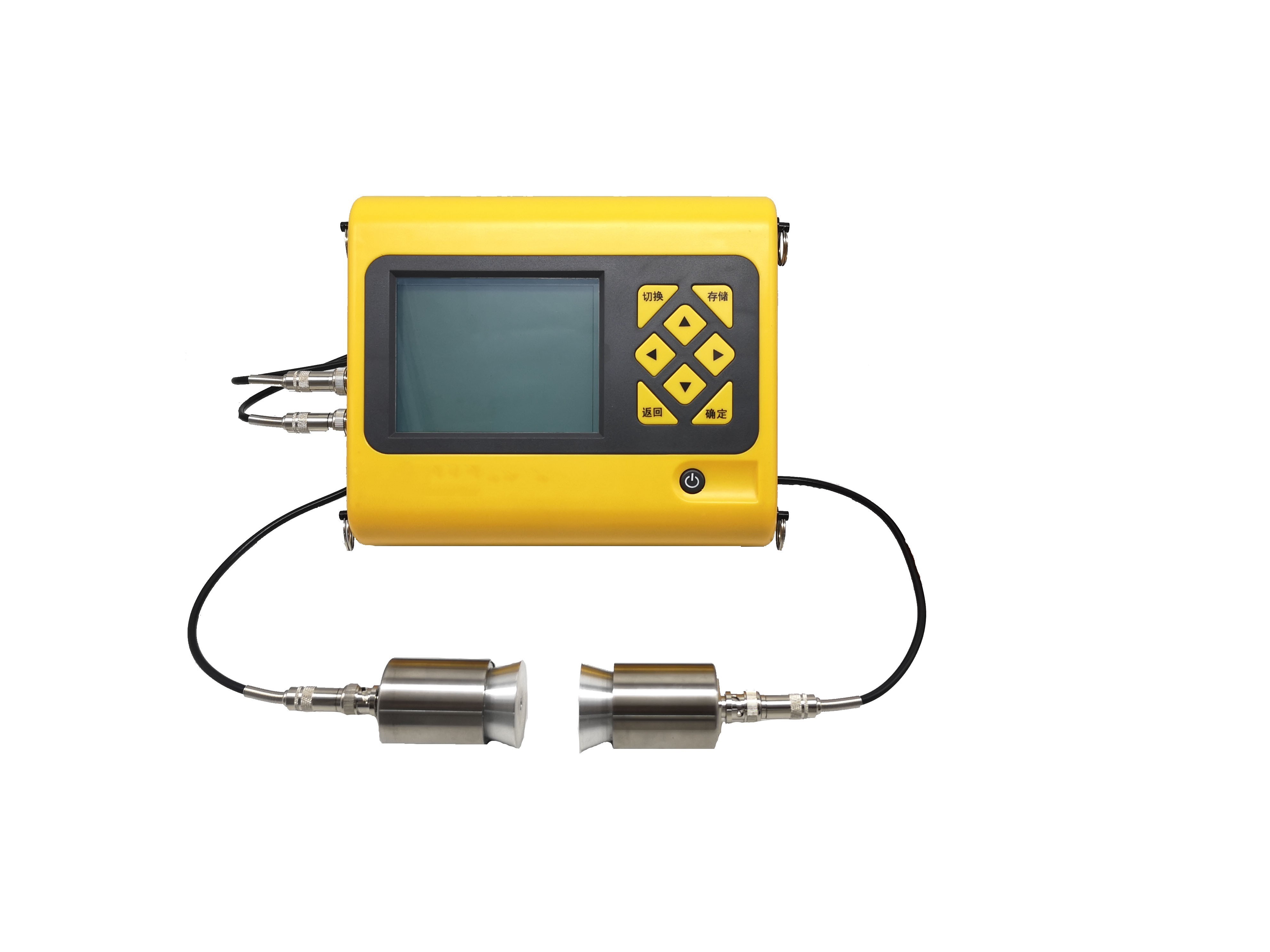

TK-Q61 Digital Concrete Strength Tester Concrete Testing Instrument Portable NDT Instrument 0
Major interface

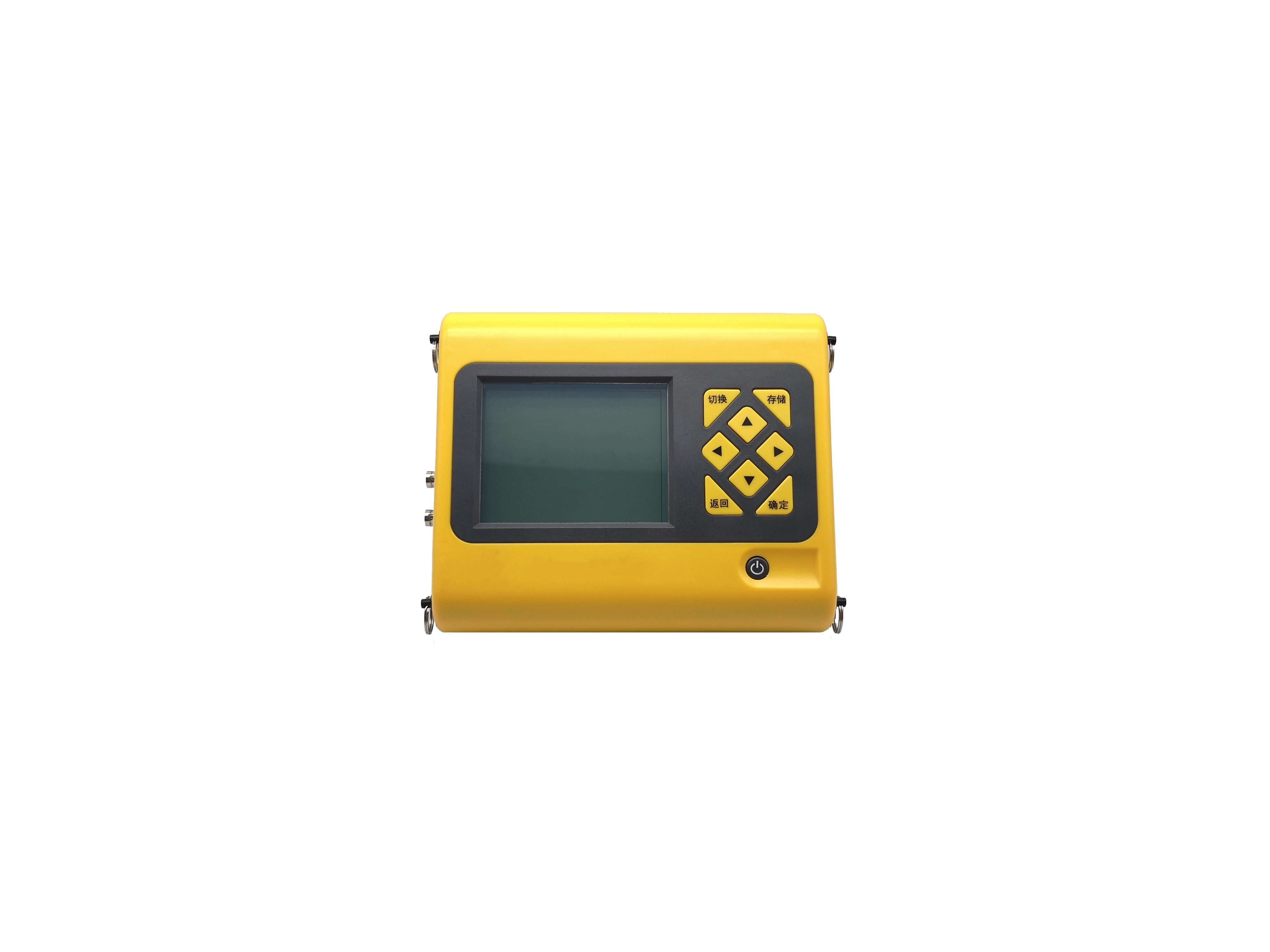

TK-Q61 Digital Concrete Strength Tester Concrete Testing Instrument Portable NDT Instrument 1
Software

Powerful software in windows is convenient to data process and analysis:Real USB assure transmit data to computer quickly. It also can export data to word and excel for future process, save and print data.

TK-Q61 Digital Concrete Strength Tester Concrete Testing Instrument Portable NDT Instrument 2
