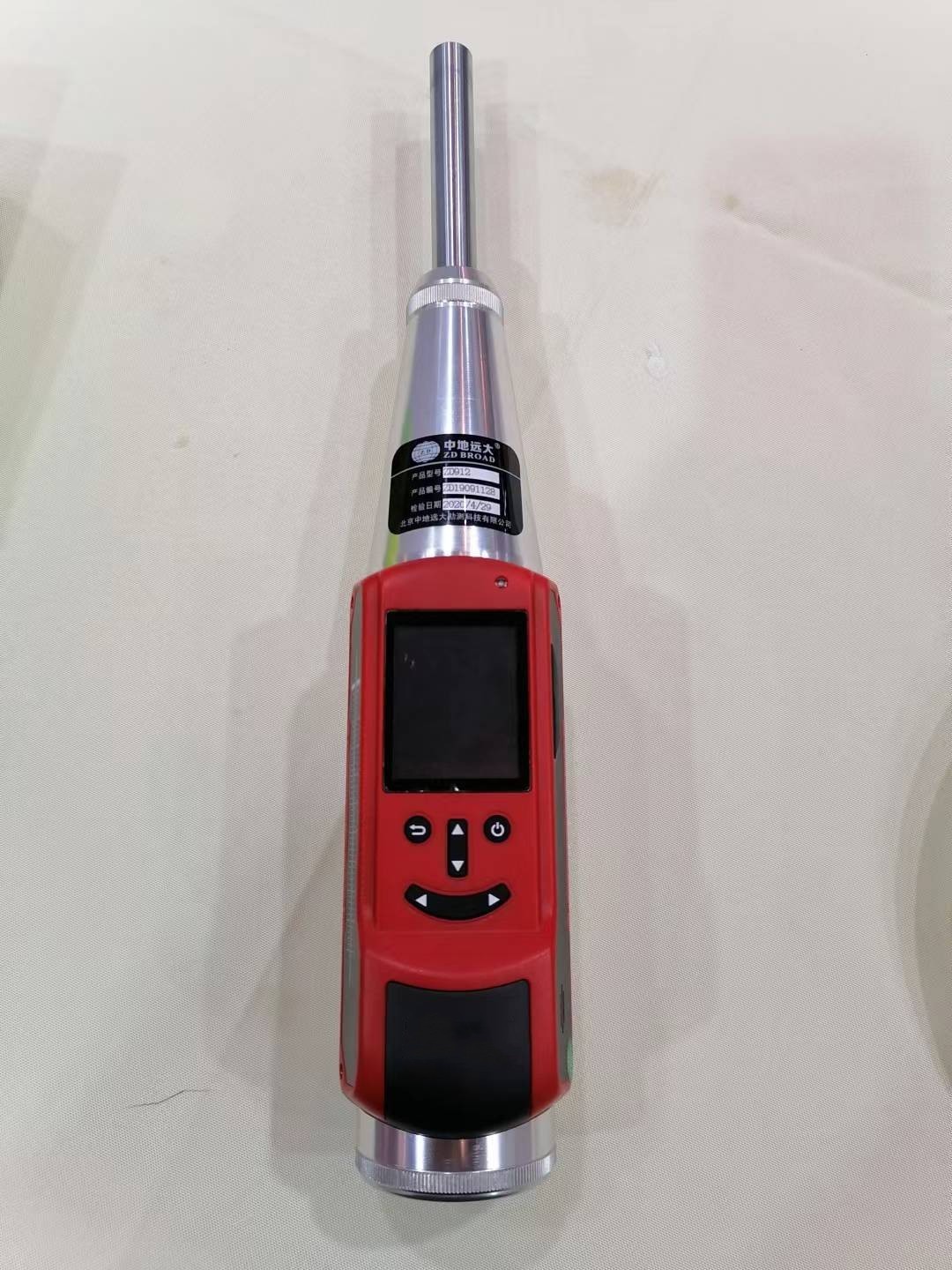

Digital Electronic Rebound Hammer For Concrete NDT Strength Testing

1 Piece
MOQ
Bulk discount
Price
Digital Electronic Rebound Hammer For Concrete NDT Strength Testing
Features Gallery Product Description Chat Now
Features
Specifications
Power: Electronic
Product Name: Concrete Test Hammer
Application: For Concrete Testing
Detector Range: 10-60 Mpa
Measuring Range: 1000 Data
STANDARD: BS ISO
LCD Display: Support
Weight: 2.2kg
Dimension: 60*280
OEM: Yes
Highlight:

Electronic rebound hammer

,

Digital rebound hammer

,

10Mpa rebound hammer test
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
Digital Concrete Rebound Hammer, Electronic Concrete Strength Test Hammer
  1. Automatically display and record the rebound value, and calculate the converted intensity value of each measurement area and the estimated strength of the component according to the relevant inspection specifications.
  2. 2.0-inch color LCD screen (220 × 176 pixels), clearly visible inspection data in any situation.
  3. Color digital module and mechanical rebound meter can be disassembled at will.
  4. Standard battery module, free to dismantle, replace anytime, anywhere, fully realize double power and double charge, unlimited field test.
  5. Silicone button design, flexible use; ergonomic design, comfortable and warm heart; streamlined elegant design, smiling look and feel.
  6. Support Simplified Chinese and English multi-language display.
  7. Multiple data transmission modes, simple, accurate and convenient operation.
  8. The carbonization value in the measurement area can be entered 3 times and the average value is automatically calculated.
  9. Selective transmission, printing, export, and deletion of test components, easy operation
  10. Built-in steel anvil calibration function to record calibration information.
  11. Support personal customization (contact supplier before purchasing) instrument standard specification and program update function.
  12. Optional Bluetooth printer for on-site data printing, efficient and intelligent, easy to record raw data on site (limited to different models).

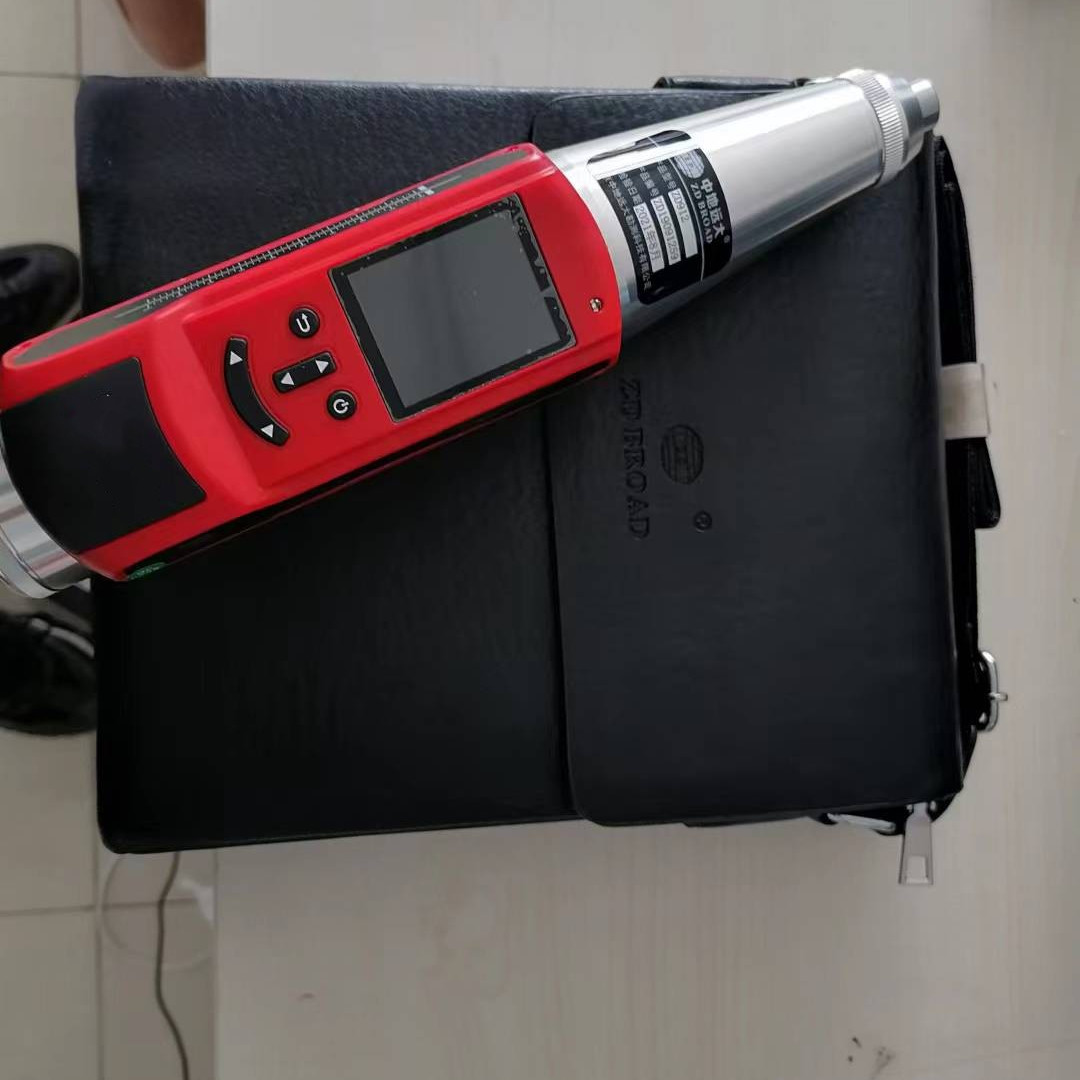

  13. Equipped with business diagonal cross leather bag, easy to carry, easy to operate, easy to use, and wear-resistant
  14. Noisy scene, you can use universal headphones (earphones are provided), plug in the earphone dedicated port to avoid external interference
  15. Any on-site operator of this product can freely disassemble and replace the rebound meter without training (see operation video for details)
Technical Data
Standard impact energy 2.207J
Rigidity of tension spring 785.0±40.0(N/m)
Anvil rate setting 80±2
Error range for digital displayer <=+-1(the difference between displayer and scale)
Storage Capacity 2000 pcs, 640 thousand data
Power supply 3.7V Lithium battery, 1050 mA
Collection Mode Automatic display and record data
Communication Interface USB interface, Bluetooth interface, Wifi interface
