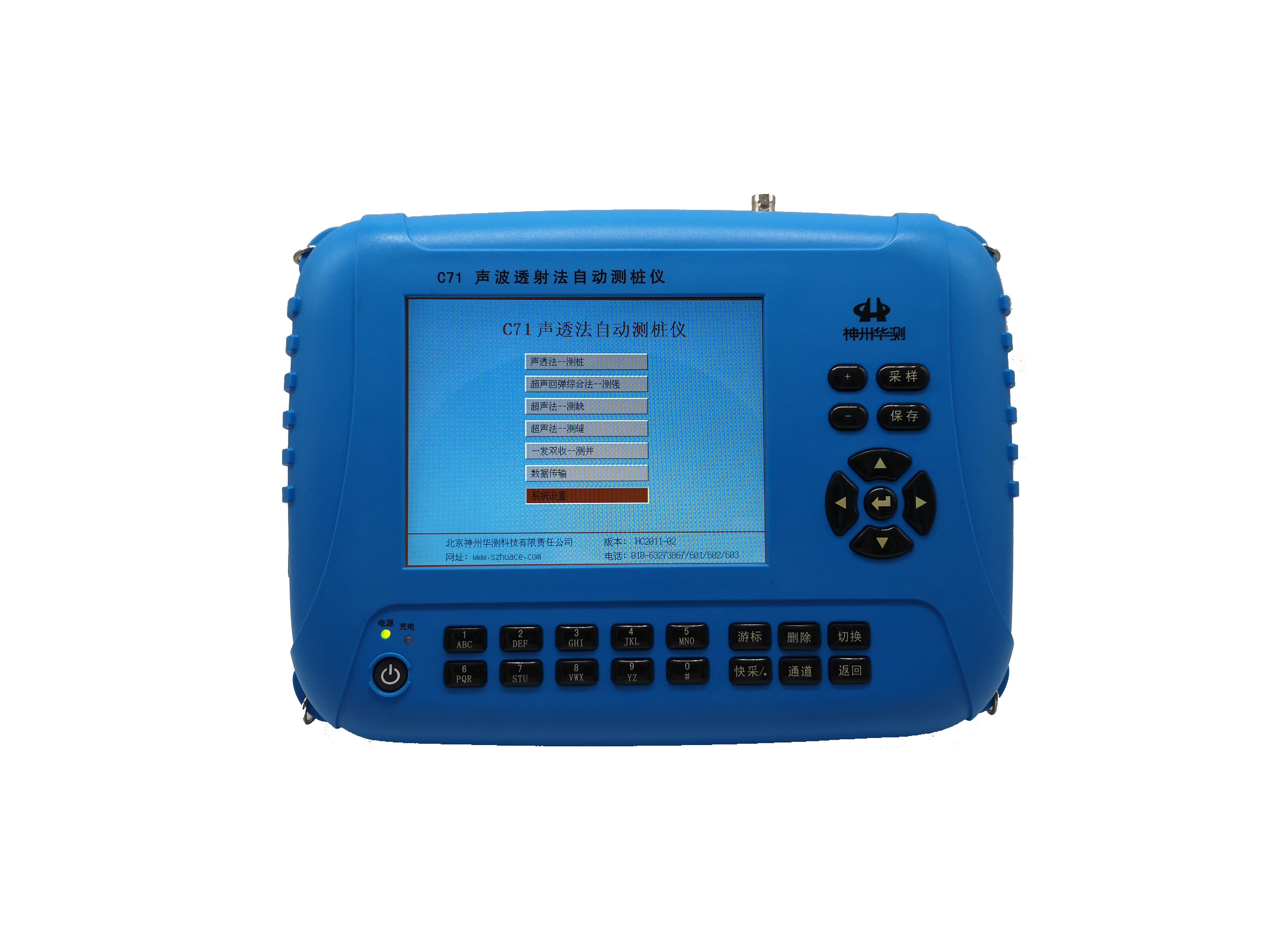

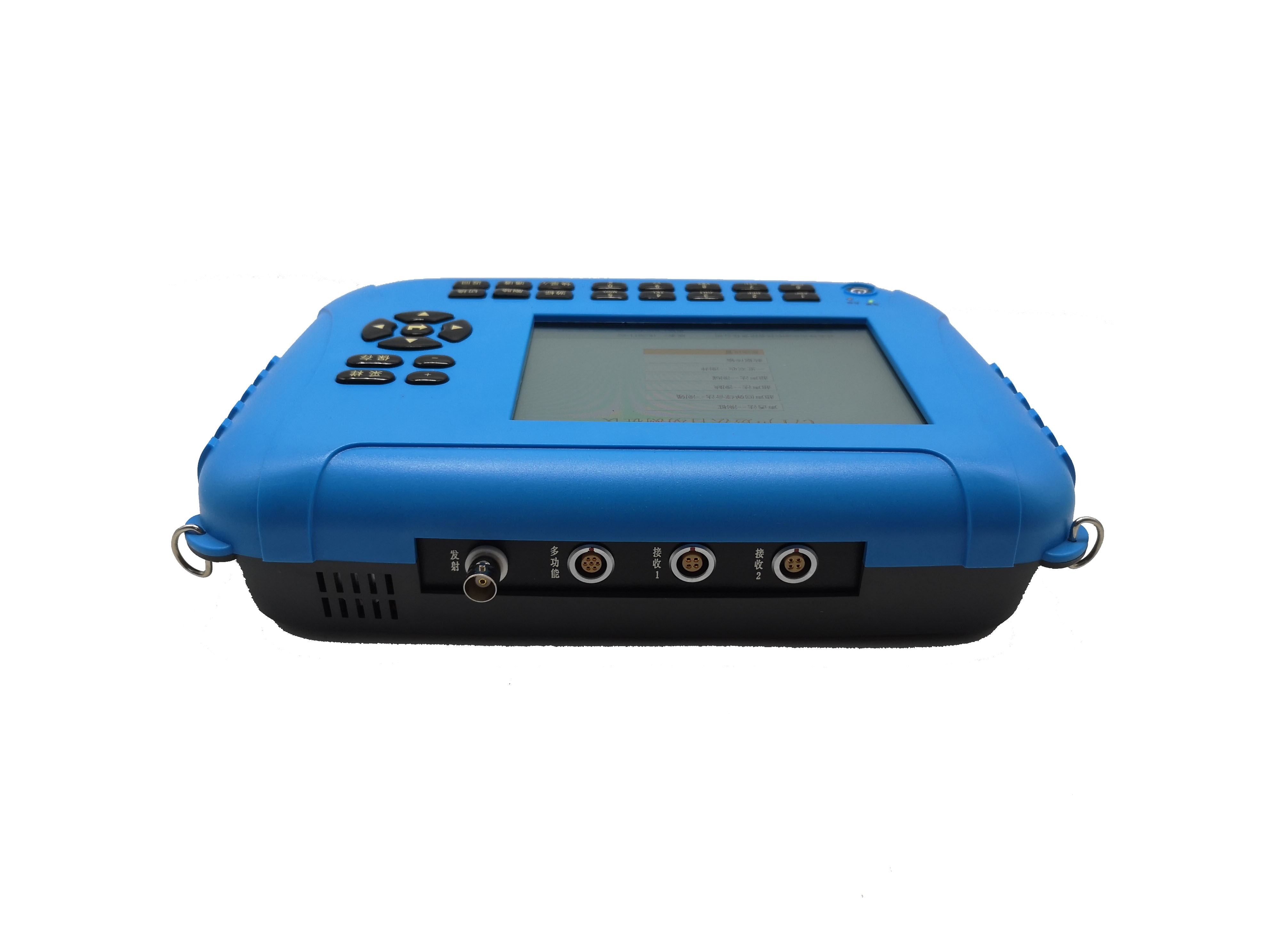

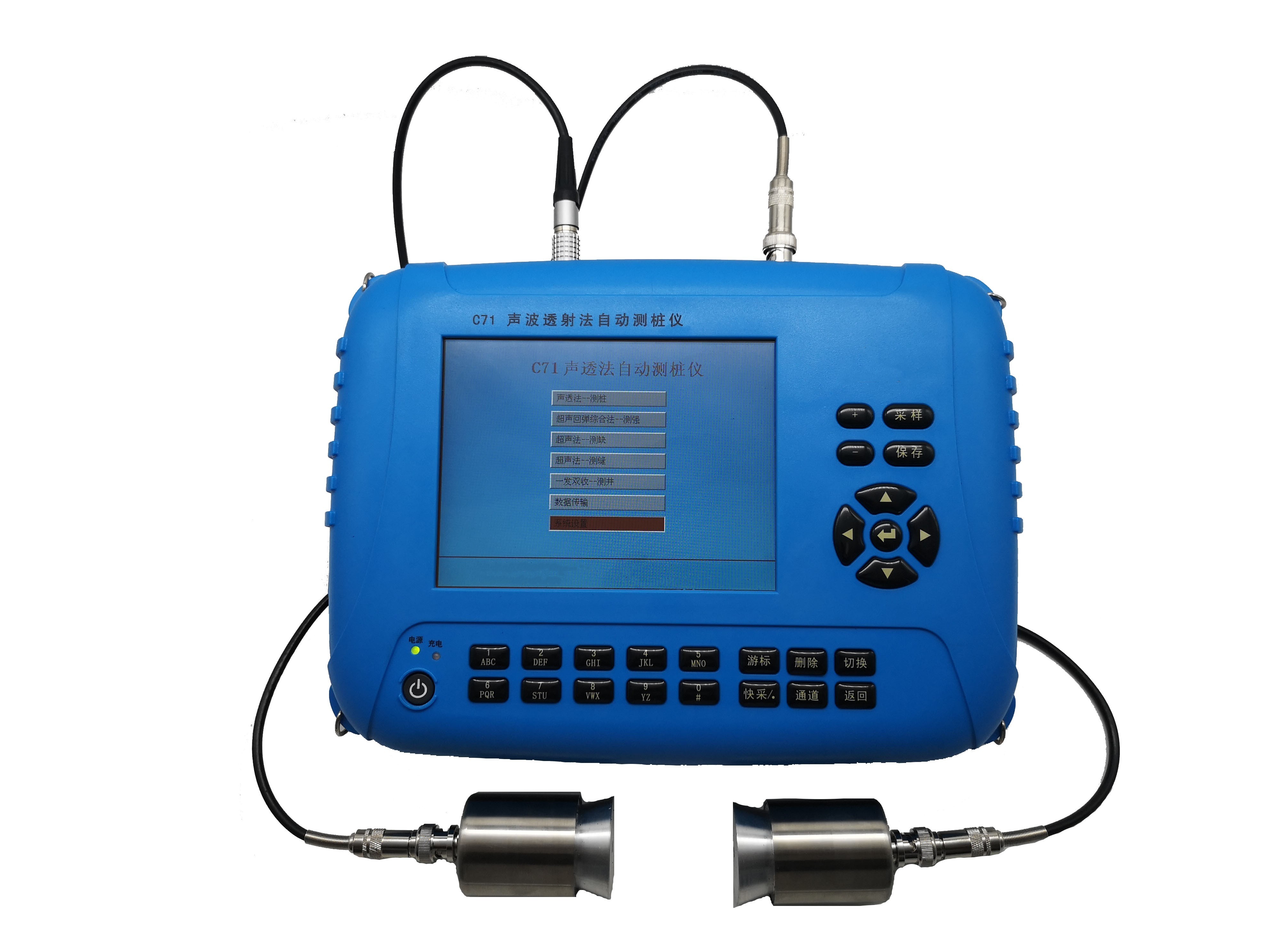

TK-C71 Ultrasonic Cross-Hole Automatic Foundation Pile Testing System | Pile Integrity Tester

1 Piece
MOQ
Bulk discount
Price
TK-C71 Ultrasonic Cross-Hole Automatic Foundation Pile Testing System | Pile Integrity Tester
Features Gallery Product Description Chat Now
Features
Specifications
Power: AC 100V-240V, 50/60Hz
Display: 640*480, LCD High Brightness TFT
Storage: 1G(internal)+2G(U Disk)
Interface: USB
Accuracy: 0.05μs
Warranty: 1 Year
Customized Support: OEM
Highlight:

100v rebound hammer

,

240v rebound hammer

,

100v concrete testing equipments
Basic Infomation
Place of Origin: China
Brand Name: TESTECH
Certification: CE; ISO
Model Number: TK-C71
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
Ultrasonic Cross-Hole Testing System for Automatic Foundation Pile Detection
Application
  1. Continuous rapid testing of building foundation piles by cross-hole sonic logging
  2. Inspection of concrete defects by ultrasonic method, such as uncompacted, cellular, hole area and so on
  3. Detecting strength of concrete by ultrasonic-rebound combine method
  4. Detecting strength of concrete crevice by ultrasonic-rebound combine method
  5. Detecting defects of one hole by one trigger two receive.
  6. Testing mechanical properties of non-metallic material, such as rock, concrete etc.
Performance
  1. High efficient testing: lifting speed more than 60m/s(20cm distance).
  2. Display test data graphically: watch analyze result directly.
  3. Fast and precise automatic judge sound parameters: real-time wave display to ensure test efficiency.
  4. Humanized software design, apply to user and construction plant. Ensure user handle it easily.
  5. Linking the rebound apparatus directly, detecting strength of concrete by ultrasonic-rebound combine method with linking rebound apparatus directly, and get strength of concrete in time.
  6. Being sensitive to receiving signal: receive signal more than 10m in concrete without defects.
  7. Can supply smooth power for radial energy transducer needless external power
  8. Standard USB storage with big capacity
  9. Interior lithium battery, work more than 6 hours
  10. Portable, impact design and light apparatus
  11. extending function for testing thickness of concrete by impacting echo method
  12. Professional and powerful analysis software. Export the data to excel or word for advance analysis.
Technical Data
Item Specification Item Specification
Main control unit high-performance embed computer Display 640*480, LCD high brightness TFT
Input Keyboard Storage 1G(internal)+2G(U Disk)
Interface USB Maximum hoisting speed 60m/min(20cm distance)
Receive Channel Two Maximum sampling length 64k
Trigger Mode Continuous trigger, external trigger Transmit Voltage(V) 65, 125, 250, 500, 1000 selectable
Receive sensitivity ≤30μv Amplifier gain 82dB
Amplifier bandwidth 5Hz～500kHz Sampling Interval 0.05μs～6.4μs
Phonatory time accuracy 0.05μs amplitude resolution 0.39%
Power Interior lithium battery, more 6hours Connect concrete hammer YES
(optional) external lithium battery, more than 6hours Dimension of Frame 260 mm*185 mm*60 mm
DC 12V Weight 1.75
AC 100V-240V, 50/60Hz Work temperature —10 to +40 degree

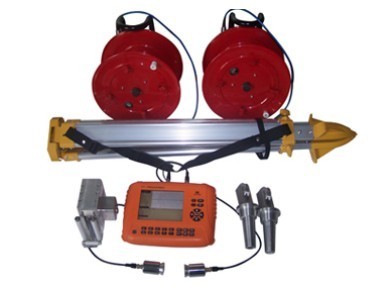

Standard Packing List
TK-C71 Ultrasonic Cross-Hole Automatic Foundation Pile Testing System | Pile Integrity Tester 0
TK-C71 Ultrasonic Cross-Hole Automatic Foundation Pile Testing System | Pile Integrity Tester 1
