Cheap Price Portable X-ray Fluorescence Spectrometer Handheld Gun Mineral Aluminium Test Metal XRF Alloy Analyzer

1 Piece
MOQ
Bulk discount
Price
Cheap Price Portable X-ray Fluorescence Spectrometer Handheld Gun Mineral Aluminium Test Metal XRF Alloy Analyzer
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Resolution：: 640 * 480.
Product: X-ray Fluorescence Spectrometer
Size: 254 X 79 X 280 Mm(L X W X H).
Detector: Si-PIN OR SDD
Data Processing:: 32GB Memory USB, Bluetooth, WIFI,
Display System:: Touch Screen With Screen Size Of 4.3".
Safety:: Waterproof, Dust-proof
Battery:: Al-time Monitoring Residual Capacity Of Battery
Certification:: CE, ISO
Highlight:

portable ndt radiography equipment

,

portable ndt x ray equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: XRF800
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
High Quality XRF Metal Analyzer for Steel / Iron / Aluminum Alloy / Copper Alloy Analysis
Cheap Price Portable X-ray Fluorescence Spectrometer Handheld Gun Mineral Aluminium Test Metal XRF Alloy Analyzer 0
TrueX 800 elements analyzed

Scope of elements in standard test mode can be extended if there is such a need.
TrueX 800can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, W, Re, Pb, and Bi,totaling 25
elements.

Weight1.6Kg(with battery).
Dimensions254 x 79 x 280 mm(L x W x H).
Excitation source50KV/200μA maximum pipe pressure pipe flow can be adjusted freely,Agtarget (standard),Au,W,Rh target(optional).
DetectorBOOST Si-PIN detector
Range of detectionAll elements between Mg and U.
Display systemIndustrial resistive touch screen with screen size of 4.3".
Proprietary operating system software and sound waves.
Multiple languages including English and Chinese.
And it automatically adjusts display brightness according to the environment brightness.
Data processing32GB memory
USB, bluetooth, WIFI, or liked to the Internet; instrument can be
configured and repaired remotely.
Data can be exported via EXCEL or PDF. Users can customize the
reports by adding their company logos, addresses, test results,
spectrum and others (such as product description, origin and batch
number).
Heat dissipationEquipped with a dedicated T-shaped radiator to dissipate the heat；no need to wait for cooling of detector time again.
SafetyBuilt-in double beam technology can automatically sense whether
there is a sample at the measurement window. This is also a safety and protection feature.

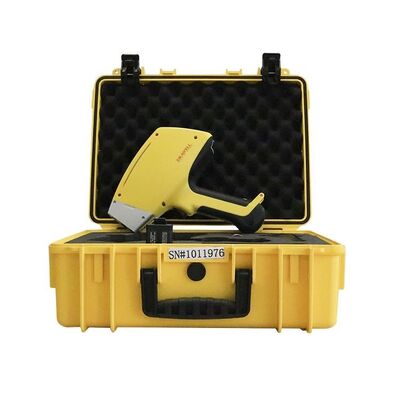

Waterproof, dust-proof and shockproof suitcase
Drawell Safety Band；
Power supply systemIntelligent battery management through MSBUS bus, real-time
monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of
dangerous goods.
A single battery can last 8 hours.
Instrument specification
  1. The ARM architecture Cortex-A8 1 GHZ
  2. System Processor: The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory
  3. Display: Industrial resistive touch screen with screen size of 4.3".
  4. Proprietary operating system software and sound waves.
  5. Multiple languages including English and Chinese.
  6. And it automatically adjusts display brightness according to the environment brightness.
  7. Operating Temperature: -20℃~+50℃
  8. Operating Humidity: ≤90%Limit of
  9. Library of extensible and customizable alloys
  10. Ability to make measurements on pipes, flat surfaces, surface integrals and welds
  11. Method of analysis: the x-ray energy dispersive method for analysis of fluorescence
  12. Simultaneously detect elements: simultaneously detect dozens of elements
  13. Processor and RAM:
  14. CPU: 1GB
  15. RAM: 1GB
  16. The standard configuration: 32G
  17. Range content: ppm ~ 99.99%
  18. 15 seconds reading time
  19. GPS, WIFI: integrated into the system
  20. Battery: lithium battery, which can be loaded with a maximum capacity of our 6800Ah can operate continuously for 8 hours; Equipped
    with high voltage (110V-220V) adapter, can work under current alternative
  21. Sensor resolution: solid, liquid, powder
  22. Sensor resolution: low resolution can be 139eV
  23. Excitation source: 40KV / 100mA-Ag window miniature tube anode X of light and high voltage source
  24. Collimator and filter: sights of 4.0 or 2.0 of diameter, automatic switch of 8 filter. 12 kinds of groups, plus mode consisting of
    world, can satisfy different types of tests of samples
  25. Display: touchscreen TFT - LCD, resolution of 640 * 480.
  26. Protection against water, dust and shock
  27. Test window: 12mm.
  28. Charging system gas: Helium charging system of ordinary pressure.
  29. Security: standalone password manager mode.
  30. data transmission: digital multi-channel technology, the transmission of data SPI, a quick scan, count rate, waterproof miniature
    USB, which can be connected to the desktop computer.
Cheap Price Portable X-ray Fluorescence Spectrometer Handheld Gun Mineral Aluminium Test Metal XRF Alloy Analyzer 1 Cheap Price Portable X-ray Fluorescence Spectrometer Handheld Gun Mineral Aluminium Test Metal XRF Alloy Analyzer 2 Cheap Price Portable X-ray Fluorescence Spectrometer Handheld Gun Mineral Aluminium Test Metal XRF Alloy Analyzer 3
