Tablet Hardness Tester Tablet Hardness Tester for Detecting Breaking Hardness
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Customized Support: OEM
Resolution: 0.1N 0.01Kg
Model Number: YD-1
Product Name: Tablet Hardness Tester Meter Measurement
Erro: ±1%
Hardness Accuracy: ±0.5%
Moving Distance Of Probe: 20mm
Power: 220V/ 50Hz/ 10W Or 110V/ 60Hz/ 10W
Dimension: 280*180*110mm
Highlight:

oem tablet tester

,

220v tablet tester

,

oem tablet hardness tester
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: YD-1
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

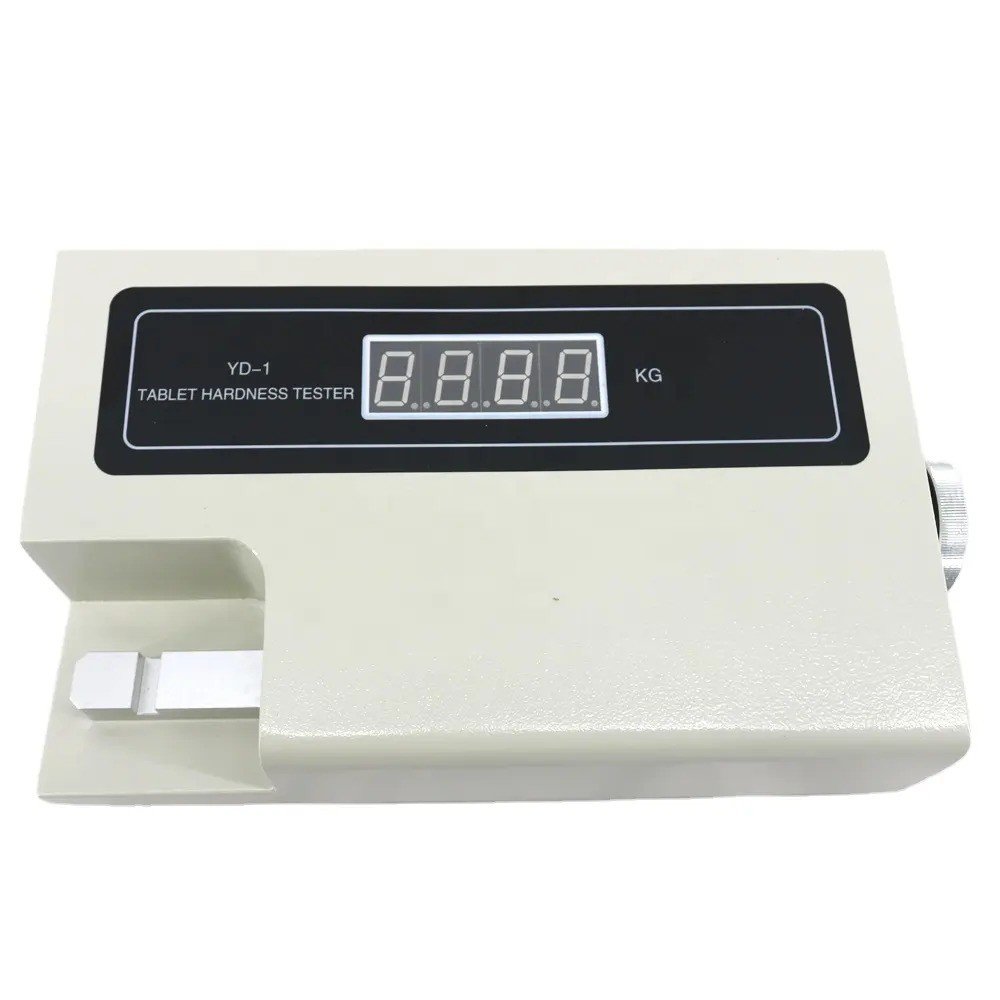

Tablet Hardness Tester Meter Measurement
Features:
  • The tablet is loaded and pressed artificially.
  • It has high accuracy press sensor and hardness data is displayed on LED
  • It tests tablet hardness continuously.
  • Test data is displayed and locked automatically, so can test be reset and cycled.
  • Automation: auto-test, auto-diagnose, auto-alarm.
Specifications:
Hardness range 0~20kgf
Hardness accuracy ±0.03kg
Moving distance of probe 20mm
Power 220V/ 50Hz/ 10W or 110V/ 60Hz/ 10W
Dimension 280*180*110mm
Model Comparison:
Model YD-1 YD-2 YD-3
Hardness test range 2-296N 0.2KG-30KG 2-200N 0.2KG-20KG 2-200N 0.2KG-20KG
Resolution 0.1N 0.01Kg 0.1N 0.01Kg 0.1N 0.01Kg
Hardness measurement accuracy range ±0.5% range ±0.5% range ±0.5%
Tablet test diameter 2-30mm 2-40mm 2-40mm
Repeated measurement error ±1% ±1% ±1%
Number of test pieces per group 1piece ≤100 pieces ≤100 pieces
Machine power 10W 40W 40W
Dimensions 280mm*180mm*110mm 400mm*240mm*140mm 500mm*400mm*160mm
