Home /Products/Hardness Tester/Handheld PHB-1 Handheld Pin Impact Hardness Tester Shear Pin Impact Brinell Hardness Tester

Handheld PHB-1 Handheld Pin Impact Hardness Tester Shear Pin Impact Brinell Hardness Tester

1 Piece
MOQ
Bulk discount
Price
Handheld PHB-1 Handheld Pin Impact Hardness Tester Shear Pin Impact Brinell Hardness Tester
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Customized Support: OEM
Place Of Origin: China
Product Name: Handheld Shear Pin Impact Brinell Hardness Tester
Model: PHB-1
Test Force: 1580kg
Test Range: 100~650HBW
Opening Size: Height 150mm*Depth 100mm
Application Scope: Castings, Forgings, Steel, Heat Treated Parts
Highlight:

oem brinell hardness tester

,

oem portable hardness tester
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: PHB-1
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
Handheld Shear Pin Impact Brinell hardness tester
  • Adopt the Brinell hardness test principle. There are two adding methods: static screw adding and dynamic hammer adding, and the test force is precisely controlled through a calibrated shear pin.
  • The test force has good consistency and is not affected by the operator's personal influence.

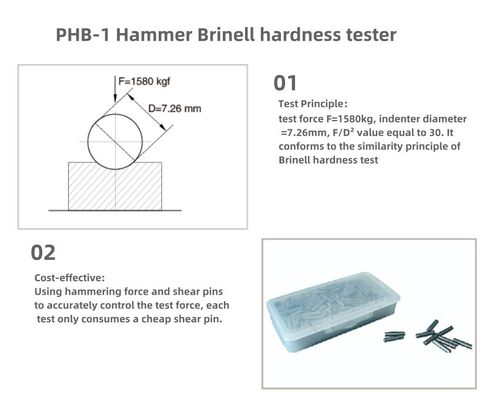

  • Test force F=1580kg, indenter diameter D=7.26mm, F/D2 value equal to 30. Complying with the similarity principle of Brinell hardness test, it is equivalent to the commonly used 3000kg force, 10mm ball.
  • Good repeatability and high precision. The accuracy is the same as the benchtop Brinell hardness tester.
  • Simple operation and flexible application. Small and medium-sized parts can use the static force method, and large parts can use the hammer force method.
  • Only one cheap shear pin is consumed for each test.
  • It can replace the Leeb hardness tester with low accuracy and reliability.
  • 7.26mm steel spherical indenter
  • 4mm carbide spherical indenter
  • Shearing pins (250 pieces/box)
  • Brinell hardness block (HB 10/3000)
  • Hemispherical point anvil (for pipe or bent plate)
  • Small flat anvil (for small parts)
  • 20x reading microscope with light source (for 7.26mm indenter)
  • 40x reading microscope with light source (for 4mm indenter)
  • Cordless portable angle grinder
  • PHB-1 Brinell indentation automatic measurement system
Parameter
  • 1, Test force: 1580kg
  • 2, Indenter: 7.26mm steel spherical indenter, test range 100~350HBW 4mm carbide spherical indenter, test range 350~650HBW
  • 3, Indication value error: Static type: ≤ 2~3%HB, in line with standard GB/T231.2 Hammer type: ≤ 5%HB
  • 4, Repeatability error: Static type: ≤ 2~3%HB, in line with standard GB/T231.2 Hammer type: ≤ 5%HB
  • 5, Test range: 100~650HBW
  • 6, Opening size: Height 150mm*Depth 100mm
  • 7, Net weight: 4.2kg
  • 8, Application scope: Castings, forgings, steel, heat treated parts
Handheld PHB-1 Handheld Pin Impact Hardness Tester Shear Pin Impact Brinell Hardness Tester 0 Handheld PHB-1 Handheld Pin Impact Hardness Tester Shear Pin Impact Brinell Hardness Tester 1 Handheld PHB-1 Handheld Pin Impact Hardness Tester Shear Pin Impact Brinell Hardness Tester 2 Handheld PHB-1 Handheld Pin Impact Hardness Tester Shear Pin Impact Brinell Hardness Tester 3 Handheld PHB-1 Handheld Pin Impact Hardness Tester Shear Pin Impact Brinell Hardness Tester 4
