Digital Brinell Hardness Indentation Measurement System

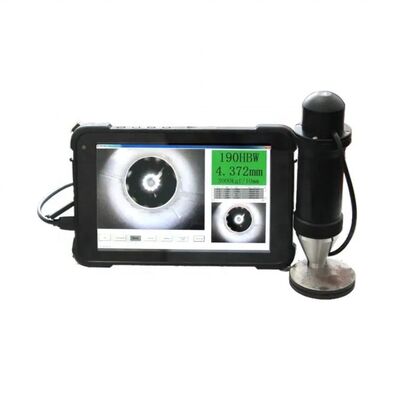

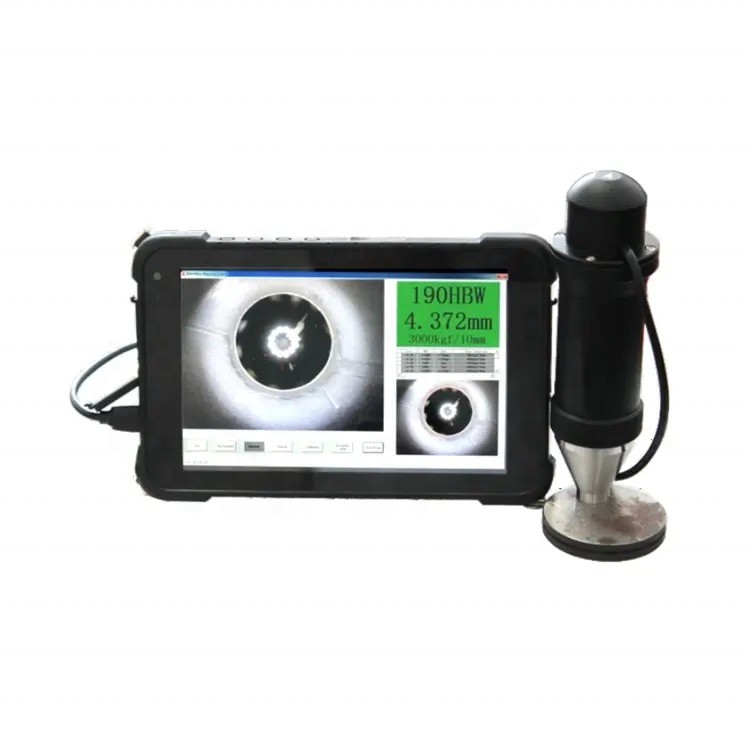

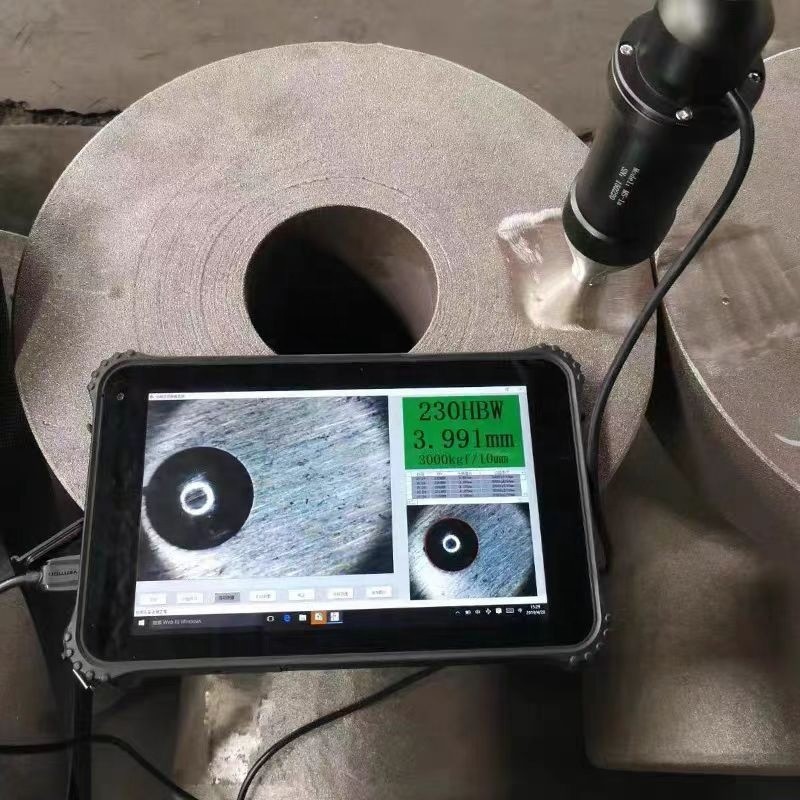

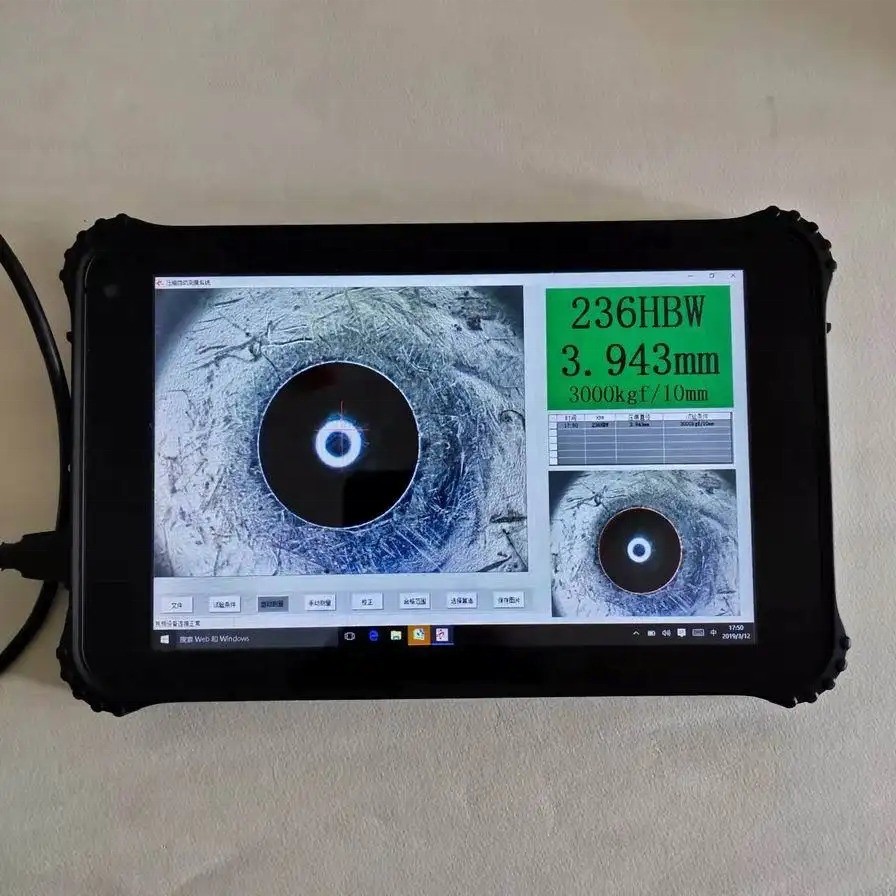

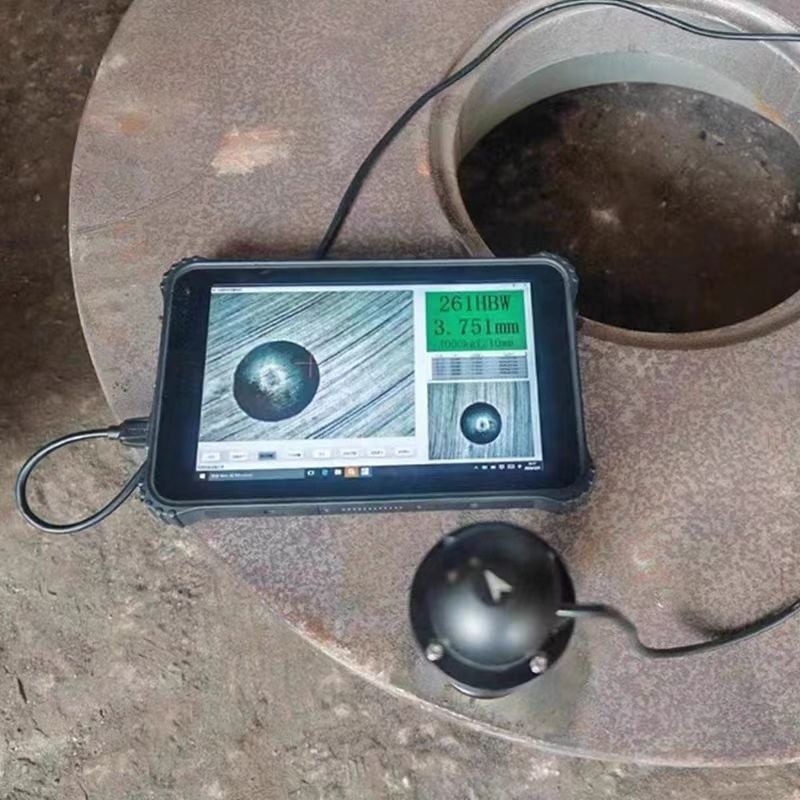

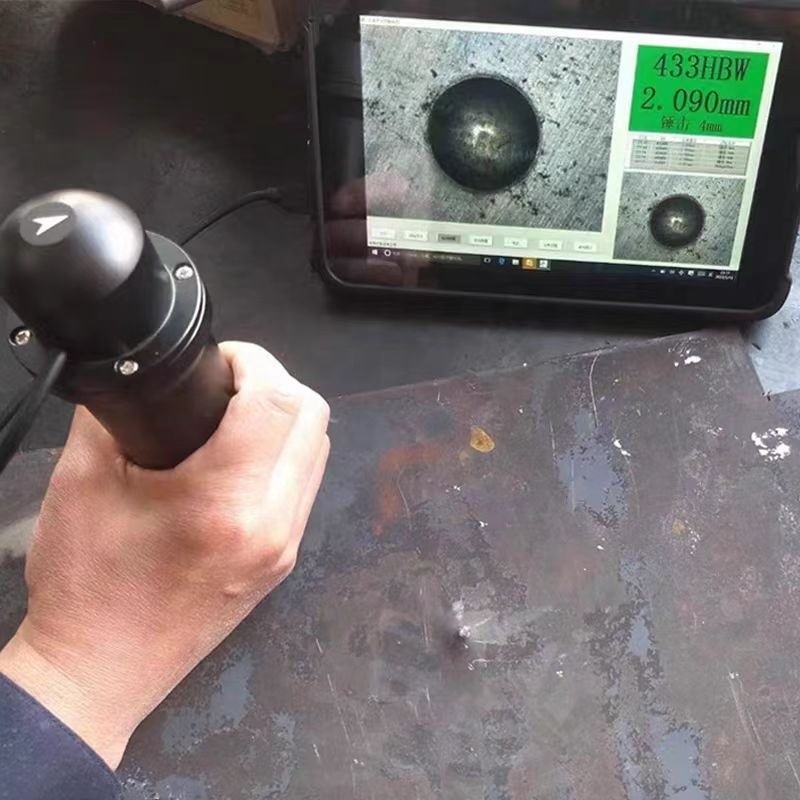

The MS-2a Brinell hardness indentation measurement system mainly consists of a camera, a computer and special image processing software. The camera captures the image of the Brinell hardness indentation, automatically identifies and measures the diameter of the indentation, automatically calculates and directly displays the Brinell hardness value. It can replace the manual measurement using a reading microscope, calculate the average diameter and look up the table to obtain the hardness value. The image of the MS-2a Brinell hardness indentation measurement system is brighter and clearer, the measurement is more convenient and faster, and the results are more accurate and objective.

1. Leading image processing technology ensures accurate identification of indentation boundaries.
2. It has 100% automatic identification capability for indentations on rough and rusty surfaces, without the need for manual tangent-assisted measurement.
3. Smooth shape design brings a more comfortable grip.
4. The newly designed optical system and lighting device ensure that shallow indentation images also have clear edges and ideal contrast.
5. Cables are stronger, softer, more durable and more resistant to interference.
6. The newly upgraded software has a measurement resolution of up to 1μm, enabling the entire system to achieve higher measurement accuracy and repeatability.
7. Each standard indentation block has 4 standard indentations with known diameters and different sizes, so the deviation in indentation measurement can be checked at any time.
8. Line ruler can be used for calibration, and the indentation measurement results are traceable.
9. Historical data is automatically stored and can be downloaded at any time.
10. The standard rugged tablet computer in the suitcase can be fixed on the palm of the hand with an elastic wrist strap, or can be hung on the chest using the shoulder strap.
