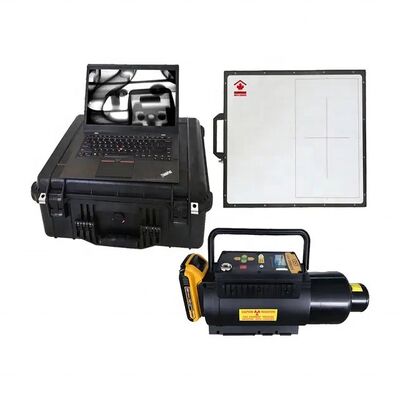

300kv Digital X-Ray Flaw Detector For Welding Inspection Test DR X Ray Machine NDT System With X Ray Flat Panel

1 Piece
MOQ
Bulk discount
Price
300kv Digital X-Ray Flaw Detector For Welding Inspection Test DR X Ray Machine NDT System With X Ray Flat Panel
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 1 Years
Customized Support: OEM
Product Name: 300kv Digital X-Ray Flaw Detector For Welding Inspection Test
Model: DR-270
Voltage: 270kv
Pulse Rate: 25 Pulses/s
Pulse Width: 25 Ns
Max.penetration: 23mm (A3 Steel)
Generator Weight: 5.4kg
Highlight:

digital ndt radiography equipment

,

digital ndt x ray equipment

,

x ray ndt radiography equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: DR-150
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
300kv Digital X-Ray flaw detector for welding inspection test DR x ray machine NDT system with x ray flat panel
Equipment Characteristic:
  • Industrial X-ray DR System is Small outsize,and with high penetrating ability.
  • The X-ray DR system Use min input voltage but generate high voltage.
  • x ray machine and flat panel detector total weight is around 8kg.
  • Low cost,reduce working time and labor.
  • Maintenance cost is lower than radioactive source.
  • Friendly operation interface, with pulse setting.
  • X-ray DR system is easy to be fixed on tripod and other fixing tools.
  • X-ray leakage is very limit,safe operation distance is 3 meters from the back of X-ray machine.
  • The DR system doesn't contain bad and dangerous object, don't need worry about the transportation.
Parameter DR-150 DR-270 DR-370
Voltage 150kv 270kv 370kv
Output Max 4.0mr/pulse, min 2.6mr/pulse,12inches away from the source
Pulse rate 15 pulses/s 25 pulses/s 10 pulses/s
Pulse width 60 ns 25 ns 15 ns
Source dimension 3mm
Beam angle 40°
Max.penetration 12mm (A3 steel) 23mm (A3 steel) 50mm (A3 steel)
Generator weight 4.5kg 5.4kg 10.5kg
power 20V battery, portable and recharegable nickel-cadmium
Image size 350*430mm
