14*17 Inch Built-in Aperture Dual-window LED Film Viewer FV-2014IRIS

1 Piece
MOQ
Bulk discount
Price
14*17 Inch Built-in Aperture Dual-window LED Film Viewer FV-2014IRIS
Features Gallery Product Description Chat Now
Features
Specifications
Warranty: 2 Years
Customized Support: OEM
Product Name: Industrial X-Ray Film Testing
Model: FV-2014IRIS
Application: Industrial X-Ray Film Testing
Maximum Density: ≥4.0H/D
Uniformity: 0.95, Diffusion factor:0.95
Viewer Window: 200*60mm(7.87"*2.36")
Highlight:

oem ndt radiography equipment

,

industrial ndt radiography equipment

,

oem ndt x ray equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: FV-2014IRIS
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description

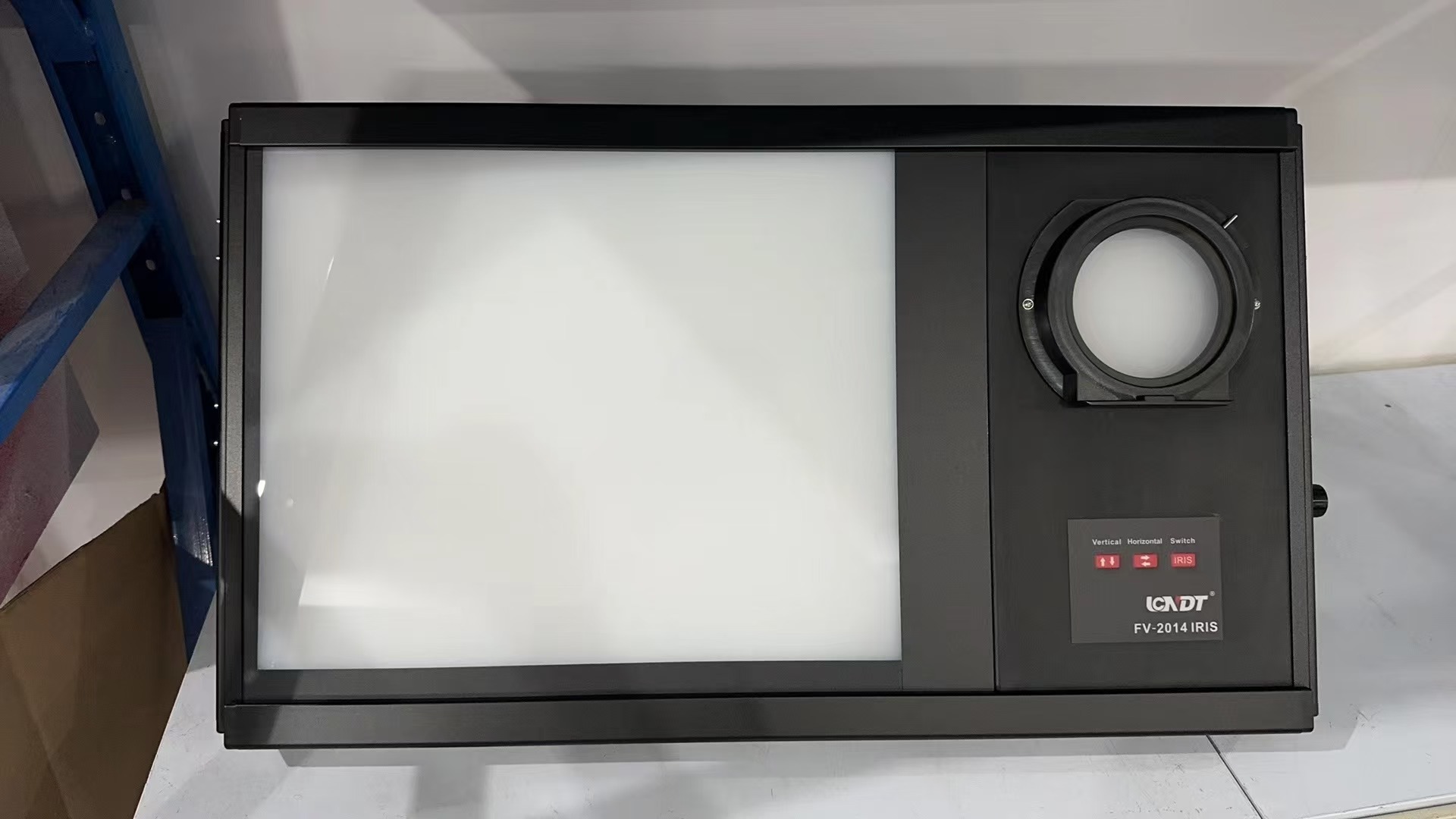

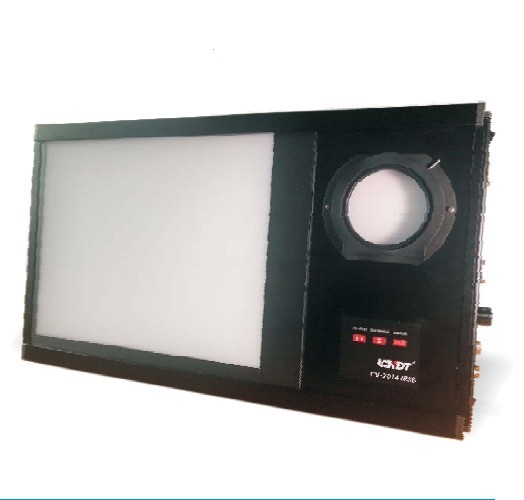

Portable LED Industrial X-Ray Film Viewers, Dual view window, 14 x 17 inch and IRIS spot view

FV-2014IRIS looks like a fashion LCD, but it is a really High luminance LED Industrial film viewer. It combines our newest electronic technology and most reliable LED driven circuit. Thanks to it, this viewer can view film density up to 4.2 H/D, and can be operated 24 hours continuously.

Electronic light mask

FV-2014IRIS not only support 14" * 17" film, but also support any film size. Because it has a strong LED switch control. Under its help, you can switch on or off any parts of area in the viewer window.

Dual view window
  • Both of two views are LED light source
  • 14 x 17" view and spot view can be switch to each other by press “IRIS" key.
  • Both of them can be dim from 5%-100%.
  • Spot view size can be adjust from φ5mm - φ100mm
  • Complies with ISO 5580 and EN 25580
14 x 17 inch view Spot view:
MAX. Luminance >= 82,800Cd/m2 (260,000Lux) >= 280,000Cd/m2 (879,200Lux)
Film 3.9D 4.5D
Viewer window 335 x 410mm (13 x 16.1 inch) φ5-φ100mm (0.2-3.94 inch)
Uniformity g=0.9 ; g=0.95
Diffusion Factor 0.95 0.95
Weight 8.45Kg (18 lbs)
Dimension 71 x 41 x 5.5cm (without support leg)
Power 85-264VAC 47~63Hz.
(changed by a switch)
Warranty 2 years
Standard Complies with ISO 5580 and EN 25580
14*17 Inch Built-in Aperture Dual-window LED Film Viewer FV-2014IRIS 0
Product name 14*17" LED Film Viewer with Spot view FV-2014IRIS
Model Number FV-2014IRIS
