XXGH 2505 Circumferential Ceramic Tube X-ray Generator (cone target)

1
MOQ
XXGH 2505 Circumferential Ceramic Tube X-ray Generator (cone target)
Features Gallery Product Description Chat Now
Features
Specifications
Oem:: Yes
Input Voltage:: 220V
Input Frequency:: 50Hz
X-ray Tube MA Stability:: ±2%
X-ray Tube Focal Spot:: 1.0×3.5 Mm
X-ray Tube Radiation Angle:: 360°×30°
Maximum Penetration Capacity:: 34 Mm
Highlight:

ceramic tube X-ray generator

,

circumferential X-ray tube

,

cone target X-ray equipment
Basic Infomation
Payment & Shipping Terms
Product Description
XXGH 2505 Circumferential Ceramic Tube X-ray Generator (Cone Target)
XXGH-2505 X-ray Inspection System for steel plate cast components The XXGH-2505 X-ray Inspection System for Steel Plate Cast Components integrates advanced X-ray electronic technology with automation, representing a high-tech solution for industrial inspection. This system offers high automation, rapid inspection speeds, cost efficiency, and simplified data storage and retrieval. It is ideally suited for inspecting various steel plates and cast components.
Key Features
  • Frequency conversion and unique high-voltage coil winding technology for extended X-ray tube service life
  • Compact size, lightweight design, simple operation, and high portability with advanced automation
  • Comprehensive safety features including fault indication, over-current/over-voltage protection, no-mA protection, and over-temperature protection
  • Superior heat dissipation performance - doubled compared to similar products
  • High-frequency technology reduces X-ray tube thermal inertia and improves operating efficiency
  • Profile material radiator with increased material density for enhanced performance
  • Optimized radiator fins design - thinner, more numerous, and larger for maximum cooling
  • Tight integration between radiator, X-ray tube, and tube housing to expand heat dissipation area
  • Built-in delayed start exposure function for operator safety
  • Door interlock function for additional safety measures
  • Japanese Rikagaku-style sockets and plugs for all cable connections - easy insertion/removal, tight connection, and long service life
  • Attractive appearance with rational structural design
Technical Specifications
Parameter Value
Input Voltage 220V
Input Frequency 50Hz
Input Capacity ≤2.5 kVA
Output Tube Voltage 150～250 kV (continuously adjustable)
Output Tube Current 4.2～5.0 mA
X-ray Tube mA Stability ±2%
X-ray Tube Focal Spot 1.0*3.5 mm
X-ray Tube Radiation Angle 360°*30°
Maximum Penetration Capacity 34 mm

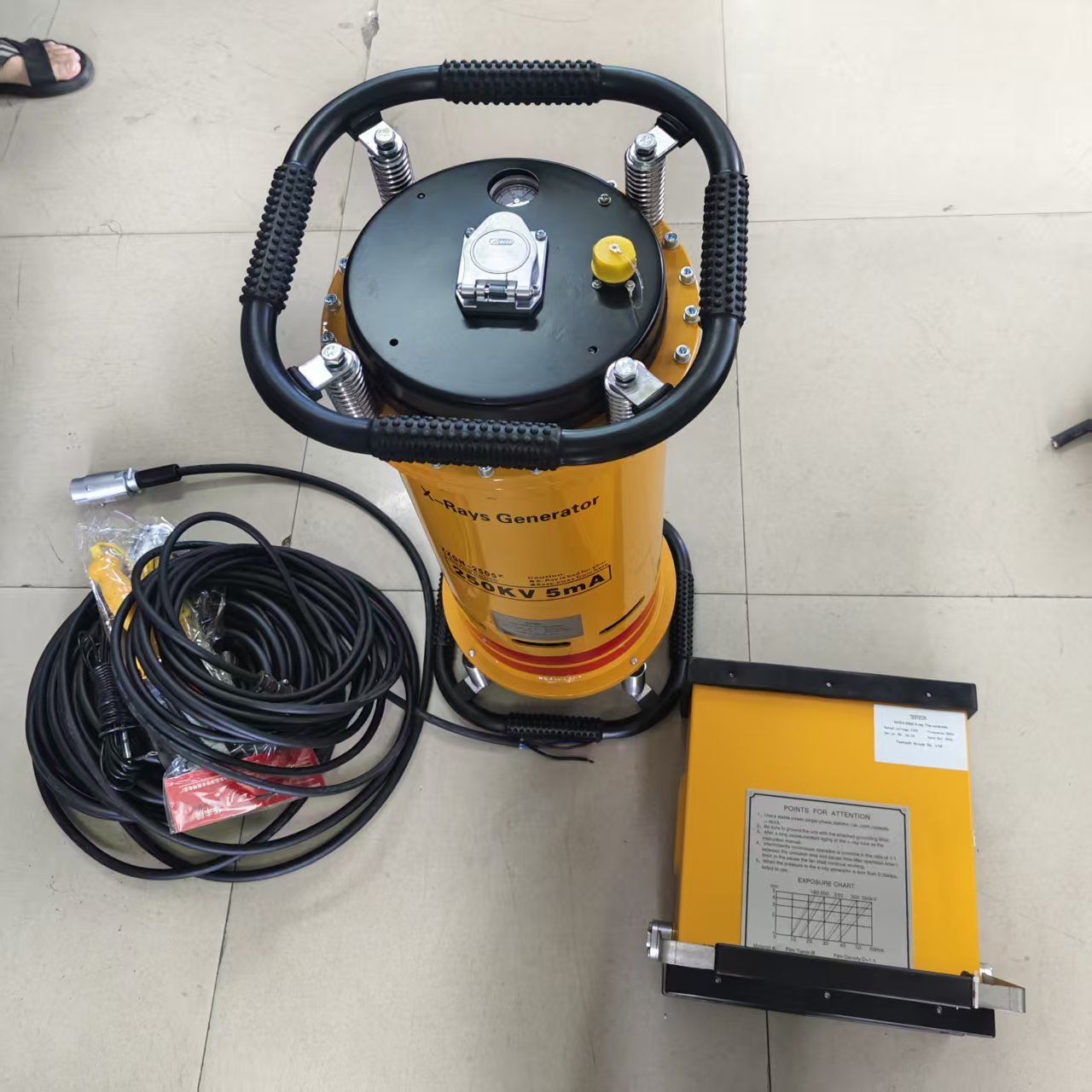

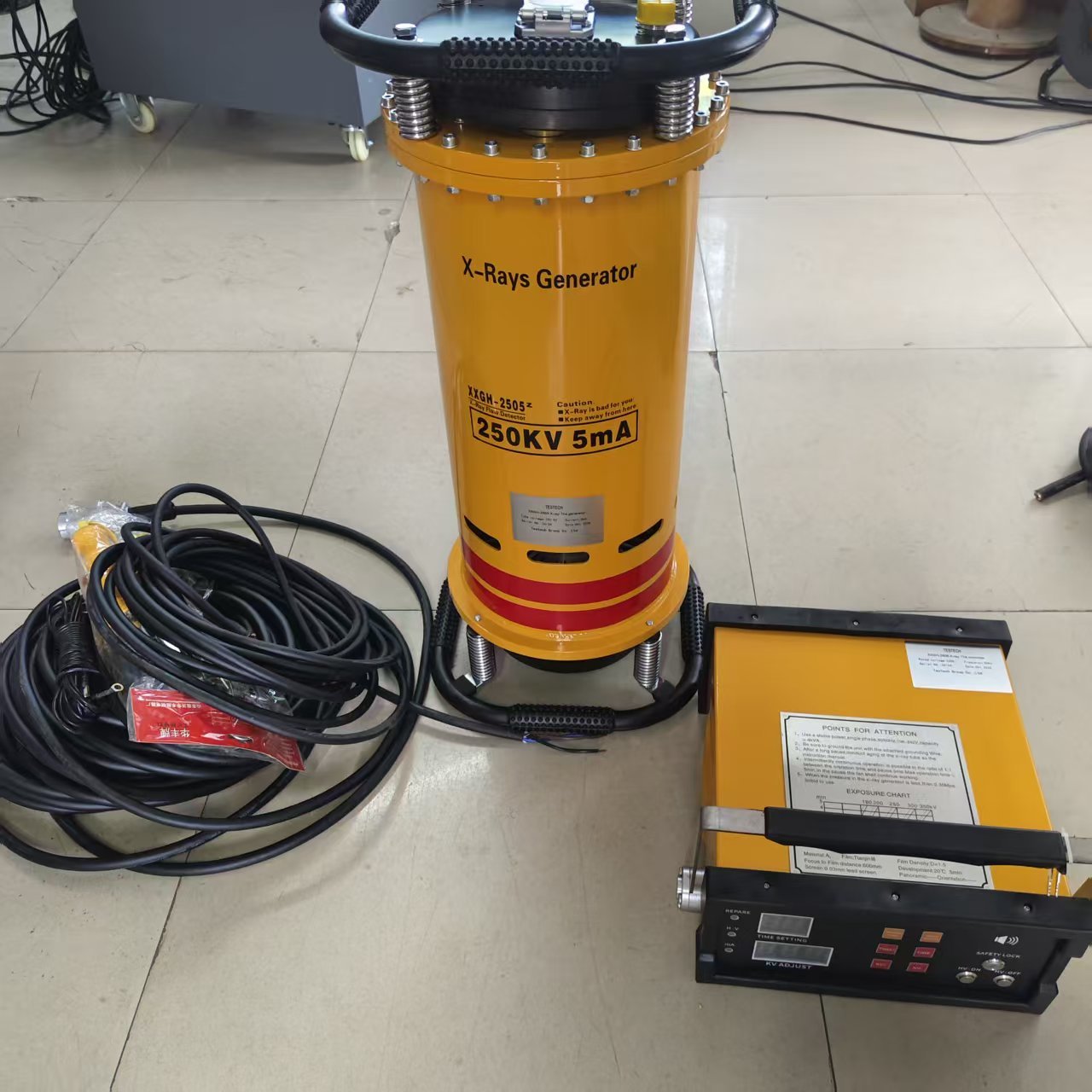

Standard Packing List
  • (1) X-ray Generator - 1 unit
    • Including: 1 Circumferential Ceramic X-ray Tube, 1 Transformer Set, 1 Cooling System, 1 Temperature Control Device
  • (2) Controller - 1 unit (Model TX-6)
  • (3) Connection Cable - 1 piece (25 m)
  • (4) Power Cable - 1 piece (10 m)
  • (5) Earth Cable - 1 piece (5 m)
  • (6) Accessories - 1 set
Advanced Control System
The XXGH-2505 unit features a TX-6 console with voice control and man-machine dialogue capabilities. Utilizing highly reliable circuit design that incorporates the strengths of domestic and international similar products, it employs high-performance microprocessors, integrated circuits, and modular components. Major components are assembled with imported parts from Japan, Germany, the United States and other countries, ensuring exceptional reliability. The system supports automatic warm-up delay function and provides strong anti-interference capability, making it suitable for operation with field generators.
Our factory's X-ray generator represents an improved version of conventional products, featuring reduced volume and lighter weight with optimized internal high-voltage circuits and partial structures. Reliability is significantly enhanced compared to standard models. The compact and lightweight design makes it particularly suitable for field work and easy transportation.
