PAUT Phased Array Navships Test Block

1 piece
MOQ
PAUT Phased Array Navships Test Block
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Phased Array Navships Test Block
Hole Spec: 4pcs Φ1.2mm Side‑drilled Holes
Version: Metric Version And Inch Version
Material: Stainless Steel Carbon Steel Aluminum Material Alloy Steel
Dimension: 30mm X 75mm X 300mm
Application: PAUT DAC‑TCG Calibration
Alias: PAUT Mare Island Calibration Block
Industry: NDT Ultrasonic Testing
Highlight:

PAUT phased array test block

,

Ultrasonic calibration block for Navships

,

Phased array calibration block
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: ISO, CE
Model Number: Navships Test Block
Payment & Shipping Terms
Packaging Details: In carton or wooden
Delivery Time: 5-8 workdays
Payment Terms: T/T,Western Union,Credit card,PAYPAL
Supply Ability: 10000 pairs
Product Description

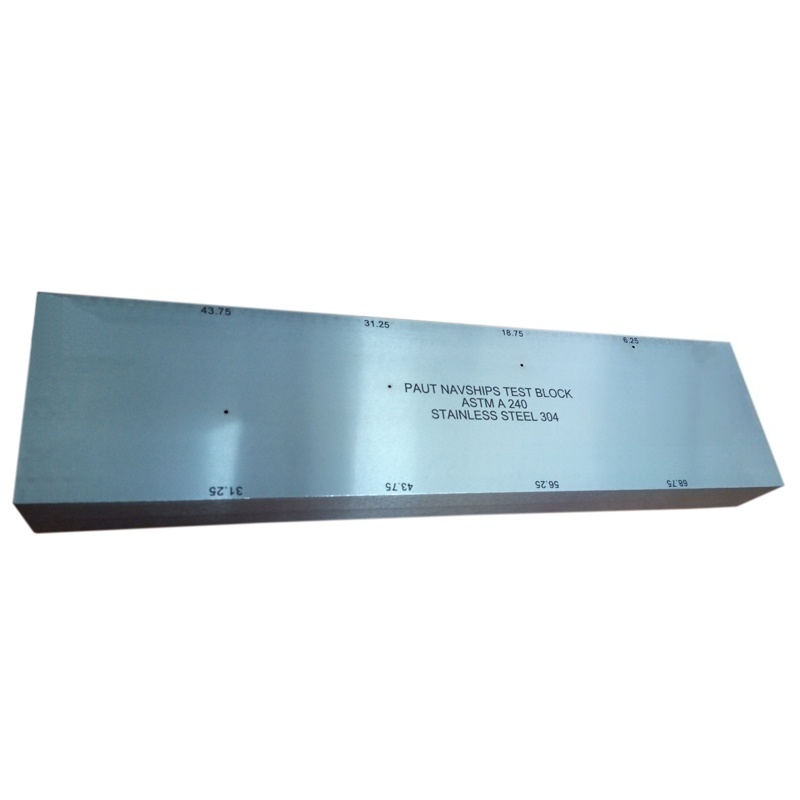

PAUT Phased Array Navships Test Block
Product Overview

This specialized Phased Array version of the popular NAVSHIPS test block addresses interference issues caused by multiple holes, providing reliable testing performance for phased array ultrasonic applications.

Available Versions
Metric Version
Inch Version
Material Options
Stainless Steel
Carbon Steel
Aluminum Material
Alloy Steel
Block Geometry
Hole Configuration: Four precision holes at 1.2mm diameter drilled through the 30mm width
Hole Locations: 6.25mm (68.75mm), 18.75mm (56.25mm), 31.25mm, and 43.75mm
Dimensions
Width: 30mm
Height: 75mm
Length: 300mm
Key Advantage

This specialized design eliminates interference between multiple holes, ensuring accurate and reliable testing results for phased array ultrasonic inspection applications.
