DAC Ultrasonic Test Block Carbon Steel 25mmx50mmx200mm With 4 Holes 1.5mm Diameter

1 Piece
MOQ
Bulk discount
Price
DAC Ultrasonic Test Block Carbon Steel 25mmx50mmx200mm With 4 Holes 1.5mm Diameter
Features Gallery Product Description Chat Now
Features
Specifications
Product: DAC Reference Block
Material: Carbon Steel
Size: 25x50x200mm
Highlight: Flaw Detector Series, DAC Block, NDT Blocks, Ultrasonic Flaw Detector, UT Blocks, UT Calibration Block
Highlight:

DAC ultrasonic test block

,

1.5mm ultrasonic test block

,

Carbon Steel ut calibration blocks
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: CE; ISO
Model Number: DAC Block
Payment & Shipping Terms
Packaging Details: In Carton
Delivery Time: 3-7 days
Payment Terms: T/T, Credit Card, Paypal, Western Union
Supply Ability: 5000pcs/month
Product Description
Carbon Steel DAC Calibration Block | 25×50×200mm | 4 Side-Drilled Holes φ1.5mm

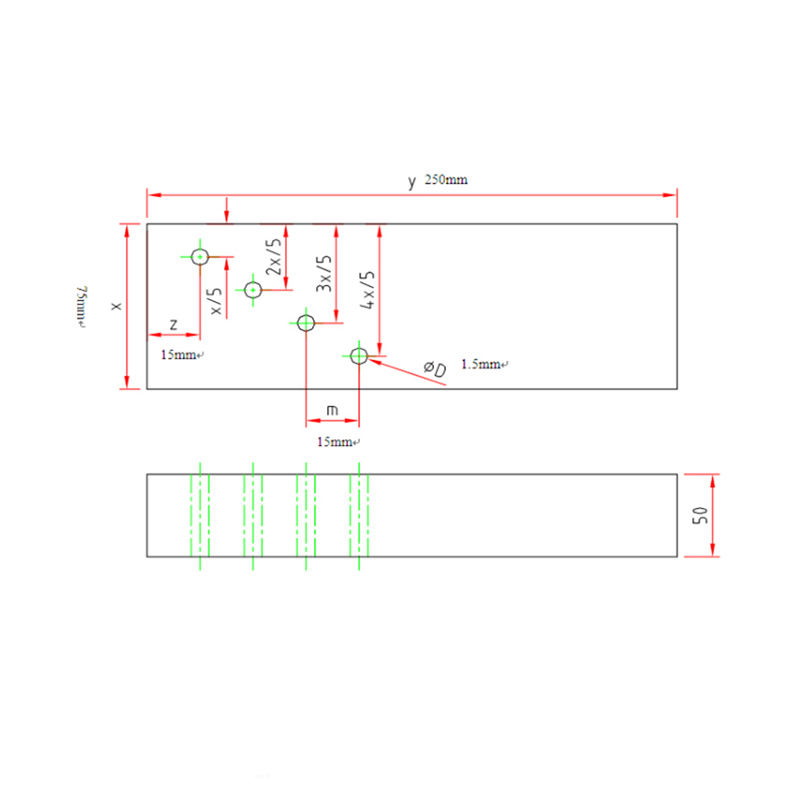

DAC Ultrasonic Test Block Carbon Steel 25mmx50mmx200mm With 4 Holes 1.5mm Diameter 0
Products Description
Order Code Type Description
/Application		 Standard Made To Material Size
V1 A2
(BS)		 I.I.W Calibration Standard. Calibration of Shear and compression wave probes. Checking beam angle, emergent point and resolution.
Calibration of time base and gain settings.		 B.S. 2704
DIN 54120
IIW (International Institute of Welding)		 Steel
25x100x300mm
V1/50 A2
(BS)		 Generally as V1. Thicker block minimises side wall echoes. BS 2704 Steel
50x100x300mm
V2
(Specify hole diameter)		 A4
(BS)		 Small calibration block for site checking of shear wave probes, time base and gain. 1.5mm or 5mm diameter hole target BS 2704
IOW (Institute of Welding)		 Steel
12.5x43x75mm
V2/20
(Specify hole diameter)		 A4
(BS)		 Generally as V2. Thicker block eliminates side wall echoes. 1.5mm or 5mm diameter hole target. BS 2704 Steel
20x43x75mm
BCB A5
(BS)		 Beam Calibration Block. Beam profile and resolution checks for shear wave probes. Sensitivity checks for shear and compression
probes. 9 off 1.5mm holes.		 BS 2704 Steel
50x75x305mm
A6 A6
(BS)		 Evaluating dominant frequency, pulse, length, dead zone and resolving power for shear and compression probes as BS4331 part
3,1974.		 BS 2704 Steel
25x50x150mm
RTB A7
(BS)		 Checking shear wave probe resolution as BS4331 part 3, 1974. Steps of 2,3,4 and 5mm. BS 2704 Steel
74mm radius
75mm thick
LSW SPECIAL Ladder step wedge for timebase calibration with thickness measuring compression probes. 8 steps from 1mm to 8mm. Tolerance of +0.000mm-
-0.040mm		 Steel
8x15x120mm
LSW/M SPECIAL Generally as LSW with 15mm diameter steel inserts mounted in plastic. 8 steps from 1mm to 8mm. Tolerance of +0.000mm-
-0.040mm		 Steel inserts
Plastic body
10x20x140mm
CSW SPECIAL Curved Step wedge for timebase calibration of thickness measuring probes. 5 steps - 2,4,6,8 and 10mm. Tolerance of +0.000mm-
-0.040mm		 Steel
100mm long
x 30mm I.D.
Quadrant

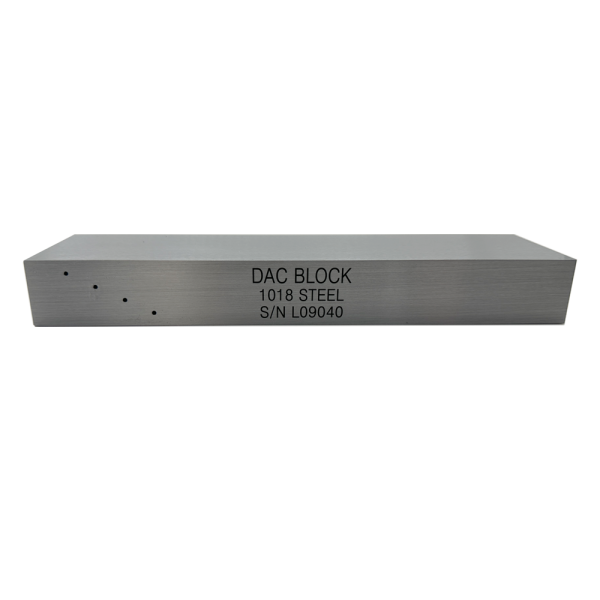

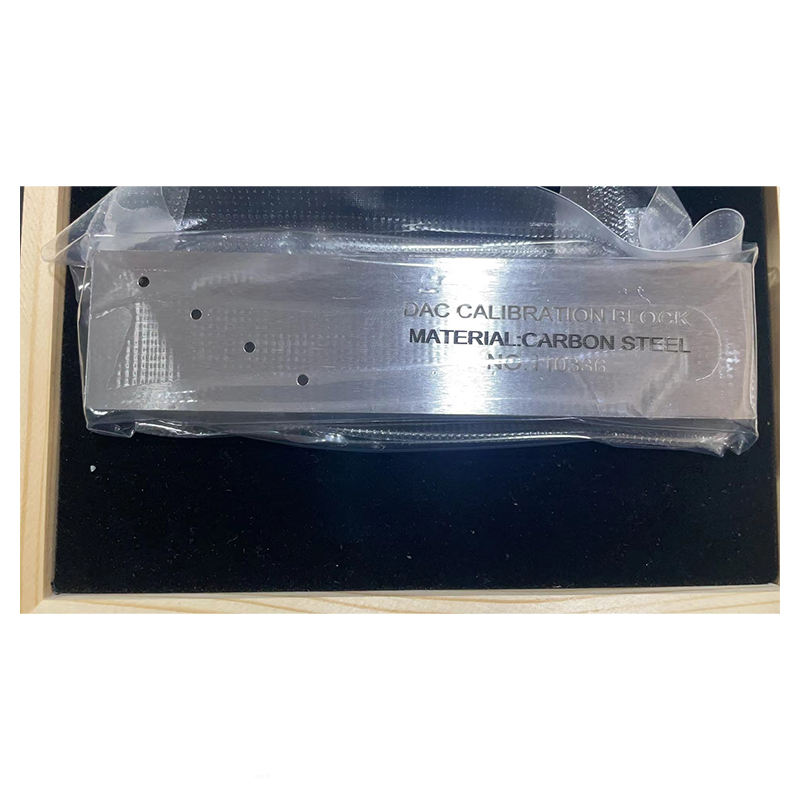

DAC Ultrasonic Test Block Carbon Steel 25mmx50mmx200mm With 4 Holes 1.5mm Diameter 1
