Phased Array Calibration Test Block | PAUT Type A / B ASTM E2491‑2013 NDT Reference Block

1 piece
MOQ
Phased Array Calibration Test Block | PAUT Type A / B ASTM E2491‑2013 NDT Reference Block
Features Gallery Product Description Chat Now
Features
Specifications
Model：: PA‑A Type‑A
Standard：: ASTM E2491‑2013
Application：: PAUT Beam Profile & Focusing Capability Evaluation
Size：: 300×100×25 mm
Material：: Carbon Steel / Stainless Steel / Aluminum Optional
Highlight:

PAUT calibration test block ASTM E2491

,

Type A/B NDT reference block

,

ultrasonic calibration block with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: TESTECH
Certification: ISO, CE
Model Number: PAUT Type A
Payment & Shipping Terms
Packaging Details: In carton or wooden
Delivery Time: 5-8 workdays
Payment Terms: T/T,Western Union,Credit card,PAYPAL
Supply Ability: 10000 pairs
Product Description
Phased Array Calibration Test Block | PAUT Type A / B ASTM E2491‑2013 NDT Reference Block
Precision calibration test blocks designed for ultrasonic flaw detection and phased array ultrasonic testing applications.
Product Overview
High-quality calibration blocks for ultrasonic flaw detection systems, manufactured to exacting standards for reliable performance in non-destructive testing applications.
Material Options
  • Standard Material: Carbon Steel
  • Optional Materials: Stainless Steel, Aluminium Alloy
  • Measurement Systems: Metric and Inch configurations available
Type B Calibration Block Features
The Phased Array "Type B" Calibration Block serves as a general-purpose assessment tool for beam characterization and system performance evaluation according to ASTM E2491 standards.
  • Establish baseline performance measurements for long-term instrument monitoring
  • Generate Distance Amplitude Correction (DAC) curves
  • Evaluate linear and angular resolution capabilities
  • Assess beam focusing ability and steering performance
  • Compact, lightweight design ideal for customer demonstrations

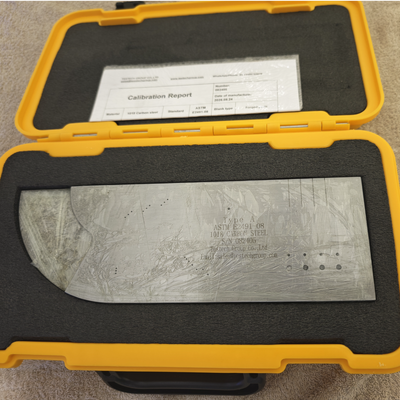

Type A Calibration Block Applications
Designed for initial setup and calibration of phased array ultrasonic systems, this block provides comprehensive functionality similar to IIW-Type blocks while being specifically engineered for phased array applications.
Technical Specifications
Feature Specification
Block Dimensions 1.000" thick × 4.000" tall × 12.00" long
Radii 4.000" and 2.000" radii
Through Holes 19 holes at 0.040" diameter, 1 hole at 0.080" diameter
Flat Bottom Holes (FBH) 4 at 0.080" diameter (depths: 0.080", 0.160", 0.235", 0.315")
4 at 0.157" diameter (depths: 0.040", 0.120", 0.200", 0.275")
3 at 0.080" diameter × 0.120" deep in 2.000" radius
EDM Notches 4 notches at depths: 0.004", 0.008", 0.012", 0.016" × 0.020" wide × 1.00" long
Compliance PH Tool Drawing No. 10217
These calibration blocks enable comprehensive system performance assessment including beam angle verification, wedge delay calibration, sensitivity calibration, and DAC/TCG procedures for optimal phased array ultrasonic testing accuracy.
